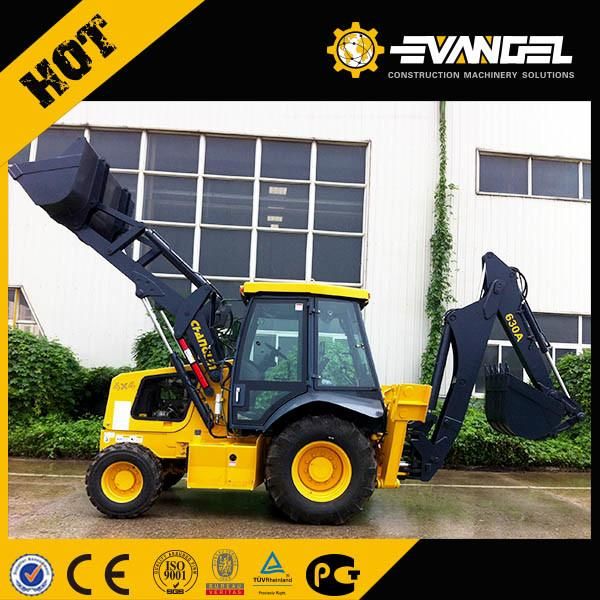

• Model NO.：WZ30-25
• Usage：Special Type
• Scraper Type：Tractor-Scraper
• Load and Unload Method：Rear Dump
• Engine Power：>515kw
• Color：Yellow
• Transport Package：Nude Package
• Trademark：XCM
• Origin：China Jiangsu
• Production Capacity：100


Main Loading Technical Specification
1
Rated load
1700(Kg)
2
Operating weight
7400KG
3
Max lifting capability
>2500KG
4
Rated load bucket capacity
1.0(m3)
5
Max. load breakout force
>40kN
6
Max. dump clearance
2611(mm)
7
Max. Dump reach
726(mm)
8
Dump angle at any position
≥43.50
9
Min. turning radius

(1) Outside of bucket
5280(mm) for 2WD 5670(mm) for 4WD
(2) Center of front wheel
3795 (mm) for 2WD 4300(mm) for 4WD
10
Lifting time of loading bucket
≤5.1(sec.)
11
Lowering time of loading bucket
≤4.9(sec.)
12
Dumping time
≤0.9(sec.)

Main Digging Technical Specification
1
Rated digging bucket capacity
0.3(m3)
2
Max. digging depth
4338(mm)
3
Max. digging force
>50+10%kN
4
Max. digging radius
5481(mm)
5
Max. dumping height
3737(mm)
