Backhoe Loader for Sale 30-25
Taian Zhengtai Construction Machinery Co., Ltd.- Certification：ISO, SGS
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Loading and Back Excavation
- Walking Mode：Wheeled
Base Info
- Model NO.：ZTW30-25
- Type：Small Loader
- Model：Ztw30-25
- Engine：Cummins 75kw, Xinchai 60kw
- Operating Weight：7660kg
- Backhoe Bucket Capacity：0.3cbm
- Rated Loading Bucket Capacity：1cbm
- Max Dump Heigh：2612mm
- Dump Reach at Max Dump Heigh：727mm
- Max.Digging Radius：5150mm
- Max.Dump Height：3738mm
- Radius at The Max.Dump Height：1084mm
- Max.Digging Radius at Ground Level：5105mm
- Digging Buckets Max.Rotating Angle：180
- Max.Digging Depth：4340mm
- Max.Digging Force：>50kn
- Min.Turning Radius：3795mm
- Transport Package：Nude
- Specification：7077*2350*3420mm
- Trademark：ZTMACHINE
- Origin：China
- HS Code：842959000
- Production Capacity：30
Description
Bucket widthmm 2315 Max. digging force
KN >50 Production description:

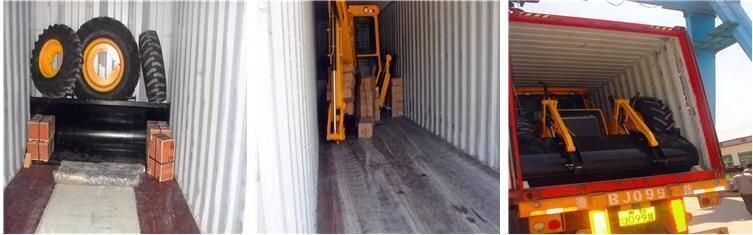

Packing & shipping
Box 40hc 2 devices may be hooked up
1.standard packing, the machine frame is with out packing, but the machine will be properly fastened and glued within the container with the aid of cord rope.
2. spare elements or carrying parts could be packed in timber box or paper carton.
3. trendy delivery technique is with the aid of box.
Production description:
What's the main feature for backhoe loader ztw30-25
1.7660kgs, cummins engine, 4x4wd, hydraulic torque converter transmission, spacious cab, zero.3m3 bucket, 1m3 loading bucket, 7077*2350*3420mm
2.low gas intake, low noise and robust energy characteristics through the use of cummins engine (75kw)/xinchai engine (60kw).
3.notable cab is designed with precept of ergonomics to offer the operator a low-noise surroundings, and possesses first-class shock absorption.
4.working table:water temperature, oil temperature, current, are all in sight.
Five.adjustable seat, convenient and cozy to use.
6.absolutely have the all capabilities of mini type digging machines.
7.ascendant performance of entire equipment, with great operation performance.
Packing & shipping
Box 40hc 2 devices may be hooked up
1.standard packing, the machine frame is with out packing, but the machine will be properly fastened and glued within the container with the aid of cord rope.
2. spare elements or carrying parts could be packed in timber box or paper carton.
3. trendy delivery technique is with the aid of box.
