• Model NO.：PY165C
• Operating Weight：15000
• Max. Forward Speed：40.4km,H
• Max Rear Speed：25.7km,H
• Engine：Cummins 6btas5.9
• Engine Power：125kw,2300rpm
• Main Valve：Husco
• Fuel Tank Capacity：228L
• Hydraulic Tank Cpacity：170L
• Tire Size：17.5-25
• Rear Ripper：5 Teeth
• Hydraulic System Pressure：18MPa
• Blade Length * Height：3660X610mm
• Blade Tilt Angle：180
• Blade Swing Agne：360
• Overall Dimension Lxwxh：8305X2695X3420
• Transport Package：Nude in Container
• Specification：165hp
• Trademark：SUNYO
• Origin：Linyi, China
• HS Code：8429510000
• Production Capacity：6000 Per Year

Basic Info.

Model NO. PY165C Operating Weight 15000 Max. Forward Speed 40.4km/H Max Rear Speed 25.7km/H Engine Cummins 6btas5.9 Engine Power 125kw/2300rpm Main Valve Husco Fuel Tank Capacity 228L Hydraulic Tank Cpacity 170L Tire Size 17.5-25 Rear Ripper 5 Teeth Hydraulic System Pressure 18MPa Blade Length * Height 3660X610mm Blade Tilt Angle 180 Blade Swing Agne 360 Overall Dimension Lxwxh 8305X2695X3420 Transport Package Nude in Container Specification 165hp Trademark SUNYO Origin Linyi, China HS Code 8429510000 Production Capacity 6000 Per Year

Product Description

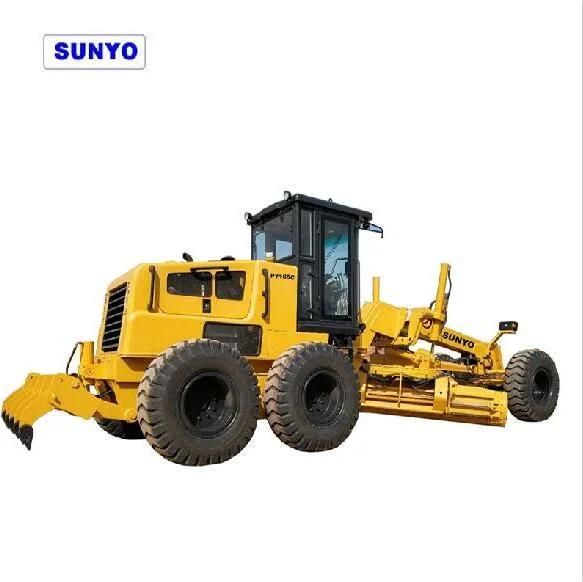

SUNYO / Chinese High Quatliy / 15 Tons operating weight / Aticulated /PY165C / motor grader With Cummins  Engine, ZF gear box, HUSCO valve    Standard Equipment:
PY165C motor grader is with cummins 6BTA5.9 , 125kw engine; ZF transmission, HUSCO valve,, and with A/C. operating weight 15 tons.


PY165C Motor Grader Specifications:

Model		PY165C
Operating mass	kg	15000
Max. forward speed	Km/h	40.4
Max. backward speed	Km/h	25.7
Front axle load		4150
Rear axle load		10850
Speed gear number		F6/R3
Minimum Turning radius	mm	7500
Hydraulic system pressure	Mpa	18
Blade length × height	mm	3660×610
Blade tilt angle	°	±90
Blade selwing angle	°	360
Front wheel  tilt angle	°	±17
Front wheel track	mm	2150
Rear wheel track	mm	2255
Overall dimension (LxWxH)	mm	8305×2695× 3420
Wheel base	mm	5347
Diesel egnine power	Kw	125/2300rpm
Diesel egnine model		CUMMINS6BTA5.9
Fuel tank capacity		228
Hydraulic tank capacity	L	170
Tire seize		17.5-25
Multitandem Valve		Husco
Rear Ripper		5 teeth

Product Description:
 A grader, also commonly referred to as a road grader, motor grader, or simply a blade, is a form of heavy equipment with a long blade used to create a flat surface during grading. Although the earliest models were towed behind horses, and later tractors, most modern graders are self-propelled and thus technically "motor graders".
Advantage:
♠ Fast operation and high efficiency
♠ Good maneuverability
♠ Simple and portable operation
 Packing & Shipping:

We have been engaged in foreign trade for more than 18 years and have very rich experience in shipping. According to the past situation, each of our products is complete and delivered to customers as planned.

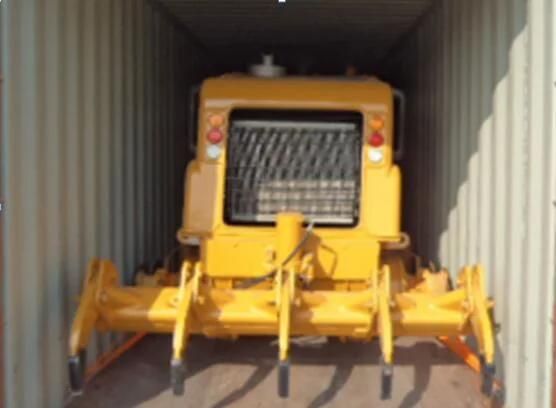

Generally, For the PY165C Motor grader , one set need one 40H conainer. it also can load in the bulk ship, or Ro-on/Ro-off ship. it according your requirements.


Attachments:

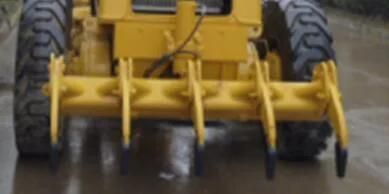

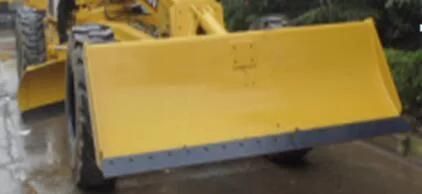

Our motor grader can be with some more attachements excapt the standard blade. it also can be with front end dozer blade, rear ripper.




Certificate :

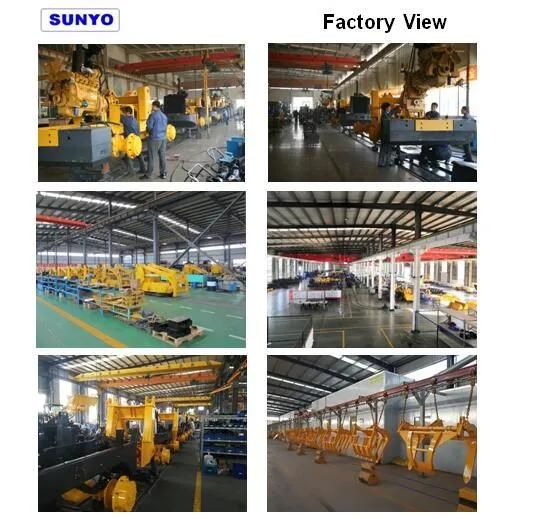

Factory View:

Here show some factory pictures to help you understand our company.


Exhibition:
Here show you some exhibition pictures .

Our Service :
Pre-sale service:
To our customers, before you buy the equipments, we hope to understand your needs, according to your machine requirements and your budget; choose the right model for you, to ensure that you buy high-quality products at a lower price.
At the same time, you are welcome to visit our factory in LINYI, China; we will book hotels, air tickets and take you up from air port.



After-sale service:
After the sale, we will properly arrange the transportation of the machine to ensure that the goods are safely delivered to your hands.
At the same time, we will provide you with technical support 24 hours a day, or send engineers to guide the installation and operation. If there are any quality problems with the machine, we will solve it for you in the first time.

FAQ:
Q1: Which country do you export to?
Asia: Pakistan, Philippines, Thailand, Myanmar, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc.
Middle East: Iran, UAE, Jordan, Oman, Saudi Arabia, Syria, etc.
Europe: Poland, Russia, Ukraine, Belarus, Bulgaria, etc.
Africa: South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America: Paraguay, Colombia, Brazil, Peru, Chile, Cuba, Venezuela, etc.
Oceania: Australia, etc.

Q2: What is the proportion of your products export?
90% of our products are exported to all over the world.

Q3: What is the payment term?
We can discuss with you. Consider for long-term customers we are favorable payment terms TT, L/C, west union. It depends on the cooperation time, country and contract value.

Q4: What kind of logistic service do you supply?
FOB, CIF, C&F

Q5: What spare parts can you supply?
All kinds of spare parts of JCM, SDLG, SINOTRUCK, SHACMAN,  SHANTUI, YTO,  etc.
