• Model NO.：SM160
• Travel Speed：25cm,s
• Centrifugal Force：30.5KN
• Certification：CS, CE, RoHS, ISO 9001:2000
• Condition：New
• Power：5.5HP
• Efficiency：405 M²,Hr
• Plate Size：50*40 Cm
• Dimension：110*50*85 Cm
• Working Weights：100 Kg
• Transport Package：Wood Box or Container
• Specification：160
• Trademark：shanman
• Origin：China (Mainland)
• HS Code：84306100
• Production Capacity：5000PCS

Basic Info.

Model NO. SM160 Travel Speed 25cm/s Centrifugal Force 30.5KN Certification CS, CE, RoHS, ISO 9001:2000 Condition New Power 5.5HP Efficiency 405 M²/Hr Plate Size 50*40 Cm Dimension 110*50*85 Cm Working Weights 100 Kg Transport Package Wood Box or Container Specification 160 Trademark shanman Origin China (Mainland) HS Code 84306100 Production Capacity 5000PCS

Product Description

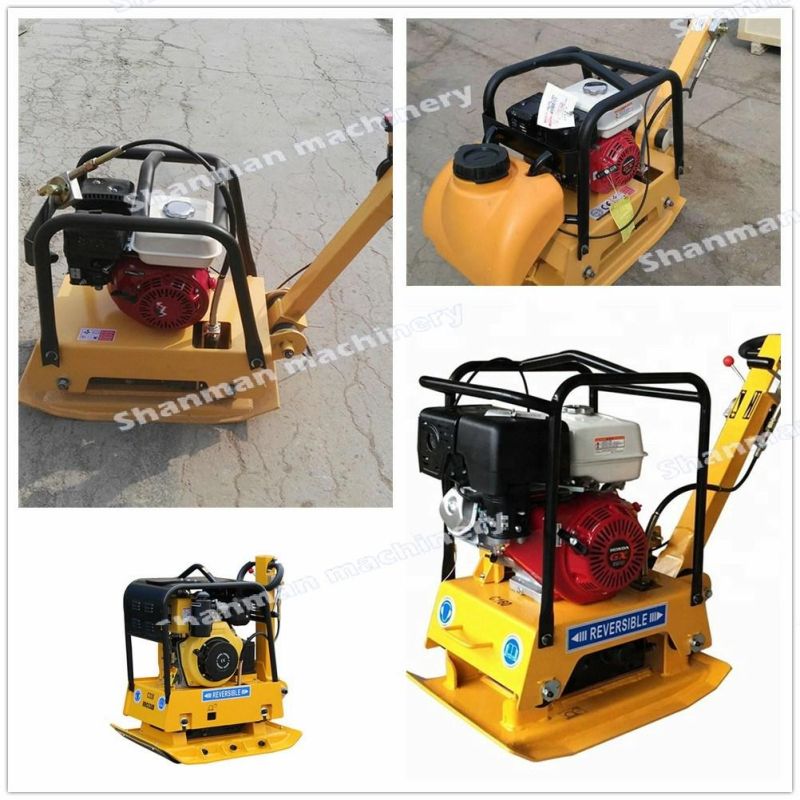

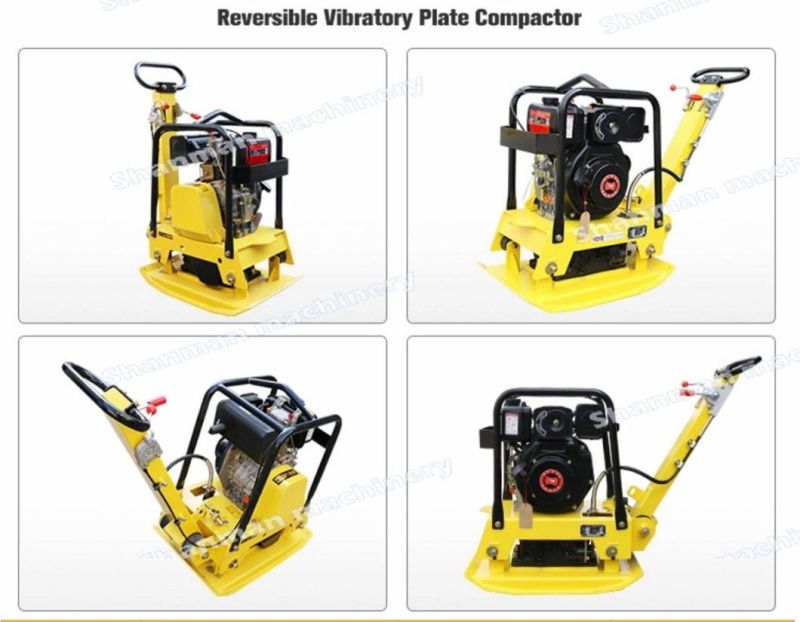

Shanman plate compactor machine1. Introduction:
 The compacting machine made of nature rubber ,has better absorption, which protects the engine and user friendly. Can modify machine for different purpose upon client's request a. Add PU plate for use on fragile surface, it's absorb impact to the surface. b. Add water tank for use on asphalt surface, anti-stick. c. Add wheels for easier transportation Many power source options to choose from, such as Honda, and Loncin. Electric power source also available.
This machine are ideal for curbs, gutters, around tanks, forms, columns, footings, guard railings, drainage ditches, gas and sewer works
and building construction. The asphalt models are suitable for hot or cold asphalt applications in confined areas.



Optimally suited for a variety of compaction applications due to high travel speeds and ease of maneuverability. Guide handle with patented vibration
dampening increase operator comfort and reduces fatigue. The large capacity water tank and the wide filler opening improve productivity. Tough
ductile iron baseplate is extremely durable even under extremely conditions and provides for long service. Optional wheel kit offer easier moving and transport.
Plate compactor price is defined as the method of mechanically increasing the density of Foundations. In construction, this is a significant part of the building process. If performed improperly, settlement of the soil could occur and result in unnecessary maintenance costs

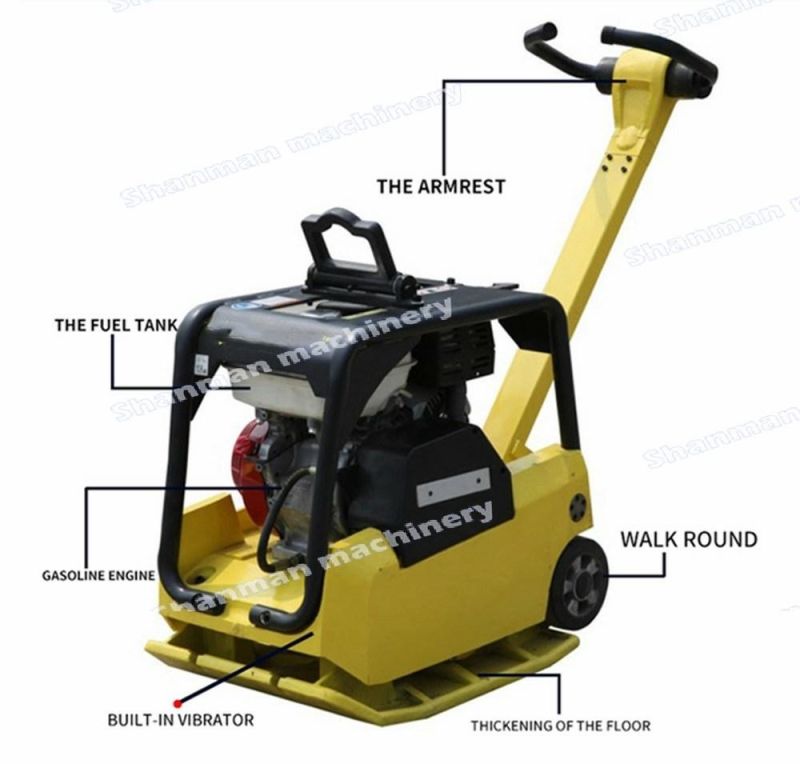

2. Structure

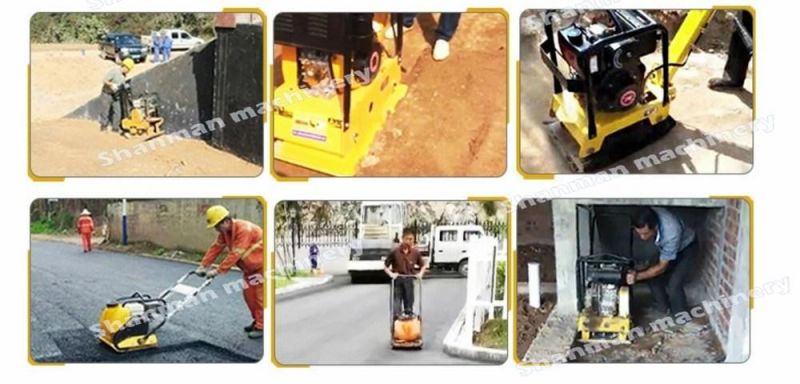

3. Application :
The Plate compactor is used for highway, municipal, construction, water conservancy and other fields. In the construction of the road, streets, buildings, canals, bridges, engineering infrastructure, curbs, asphalt pavement compaction, more suitable for the compaction of the narrow alleys.


Plate compactor series could be used in the narrow place of the wall, roadside, foundation structure, also can be used for compaction asphalt and concrete. Compared with the domestic market other similar products. Dynamic plate compactor series is more focused on the practicability and reliability  Pate

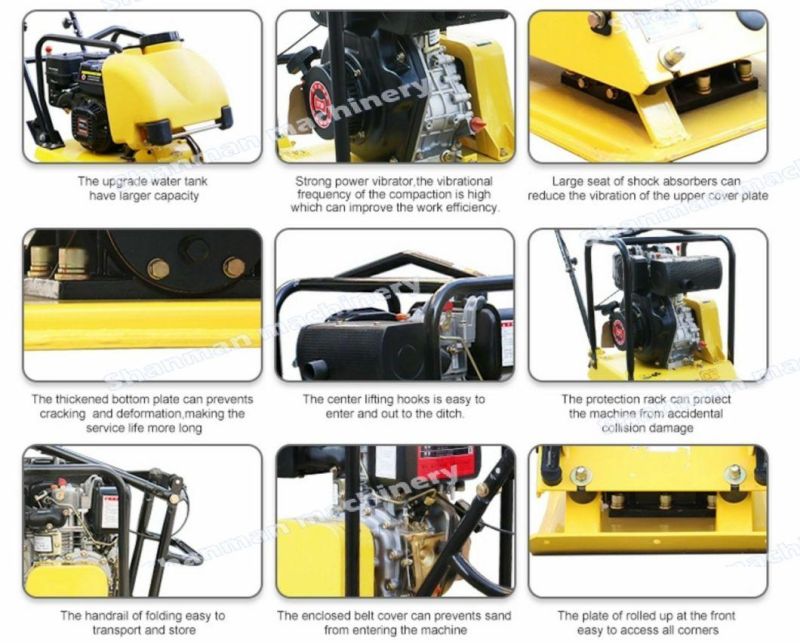

4. features:
1).less time and less costly to repair.
2).built-in wheel for easy transport
3).foldable handle for easy transport and stock. straight handle is also available
4).open plate provides self cleaning
5).radius base plate for easy access to corners
6).sealed belt cover to prevent sand and soil in
7).heavy-duty shaock mounts reduce vibration to the upper engine and handle

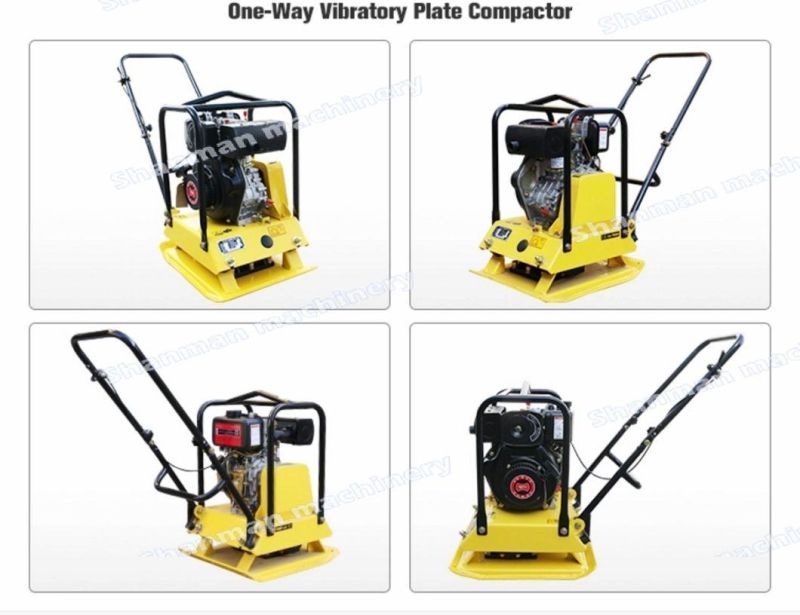

5. Types of compactors


Model	80	90	90A	90C
Engine type	Air cooling, four stroke, single cylinder	Air cooling, four stroke, single cylinder	Air cooling, four stroke, single cylinder	Air cooling, four stroke, single cylinder
Engine	LONCIN  gasoline engine 196CC	LONCIN 196CC GASOLIN ENGINE	Honda GX160 GASOLIN ENGINE	Domestic diesel engine
Power	4.8kw	5.5 hp	4.0hp	4.8hp
Working weights	82kg	100 kg	90kg	90kg
Exciting  Frequency	4200vpm	4200 vpm	4200 vpm	4200 vpm
Exciting force	13.5kn	15 KN	15 KN	15 KN
Compacting depth	30cm	40 cm	30cm	30cm
Travel Speed	24 cm/s	23 cm/s	23 cm/s	23 cm/s
Efficiency	346 m2/h	405 m²/hr	405 m²/hr	405 m²/hr
Plate size	61*40(24*17) cm	50*40 cm	50*45cm	50*45cm
Dimension	71*43*61 cm	110*50*85 cm	59*47.5*72 cm	59*47.5*72 cm



	30C	35C	40C
Engine type	Air cooling, four stroke, single cylinder	Air cooling,four stroke,single cylinder	Air cooling,four stroke,single cylinder
Engine	Domestic  diesel engine	Domestic diesel engine 186FE	Domestic diesel engine 186FA /E
Power	4.8KW	6.8kw	7.4 kw
Working weights	151KG	276kg	330kg
Exciting  Frequency	4000 vpm	3750vpm	3750 vpm
Exciting force	30.5 KN	38KN	38 kn
Compacting depth	500MM	90cm	90cm
Travel Speed	25cm/s	35cm/s	0-35 cm/s
Efficiency	570 m2 /h	650m2/h	650 m2 /h
Plate size	73*45(28*18)cm/73*36(28*14)cm Extend plate:73*6(28*2.3) cm	82*48(31*18)cm               Extend plate:82*8.5(31*3.3) cm	89*67(35*26) cm
Dimension	78*48*109cm	91*50.5*114cm	107*71*155cm

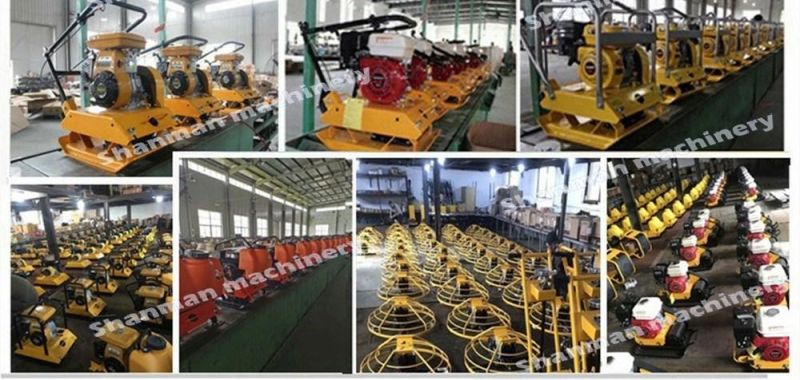

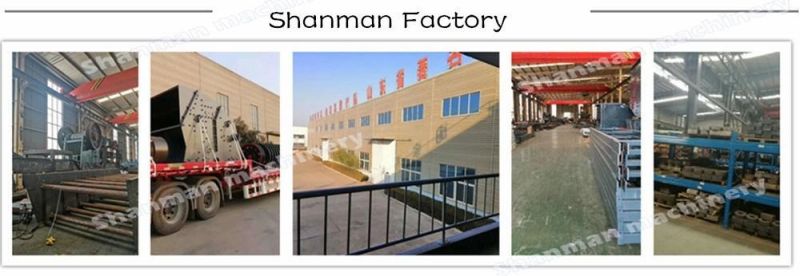

6. Factory supply:




7. Packing and delivery



8. Certificate

9. About us
