• Model NO.：280*72*47
• Color：Black
• Width：280mm
• Pitch：72mm
• Links：47can Be Customized
• Use：Lawn Mower, Snowplough, Tractor
• Product Name：Rubber Tracks for Snow Vehicle
• Warranty：12 Months Under Normal Use
• Transport Package：Bare Packing or Pallets
• Specification：280*72*47
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai China
• HS Code：8431499900
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. 280*72*47 Color Black Width 280mm Pitch 72mm Links 47can Be Customized Use Lawn Mower, Snowplough, Tractor Product Name Rubber Tracks for Snow Vehicle Warranty 12 Months Under Normal Use Transport Package Bare Packing or Pallets Specification 280*72*47 Trademark No Marks or As Buyer′s Requests Origin Shanghai China HS Code 8431499900 Production Capacity 3000PCS/Month

Product Description

Commodity: width280mm*pitch72mm*links47
Length:3384mm
Weight:67.21kg




How to Measure Rubber Tracks?
To check for the size of your existing rubber track you will need to measure followings.

1.     Measure the width of the track in millimeters or we can do the conversions for you. (1 inch = 25.4 millimeters)

2.    Measure the distance from the top of the center of one link (metal piece that engages with the sprocket on the track) to the top of the center of the next link (in millimeters or we can do the conversions for you).  This distance is known as the pitch of the track.

3.   Count the total number of links (also called metal pieces or lugs) inside of the track.
The measurement of a track is Width x Pitch x Links.


Interchangeable Track Designs
Interchangeable guide type replacement tracks were originally designed for use on equipment with undercarriages designed for steel tracks but now most can interchange with rubber.  Interchangeable type rubber tracks have pitch measurements (this is the distance from the center of one metal link to the center of the next metal link) of 47, 48, 48.5, 60, 52.5, 53, 54, 54.5, 55, 55.5, 56, 71, 72, 72.5, 75.5, 76, 81, 83.5, 92, 96 millimeters.

Conventional Track Designs
Conventional guide type replacement tracks are designed for use on equipment with undercarriages designed for rubber tracks.  Conventional type tracks have pitch measurements (this is the distance from the center of one metal link to the center of the next metal link) of 60, 72, 84, 86, 87, 90, 100, 125 and 150 millimeters.

Rubber Track Tread Patterns and OEM Track Sizes
A wide range of track designs and track patterns are available for specific machine applications and working conditions. Ask one of our professional sales associates which patterns are available for your machine.

Parameters:

Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76

More sizes we have , just contact us freely for confirm!

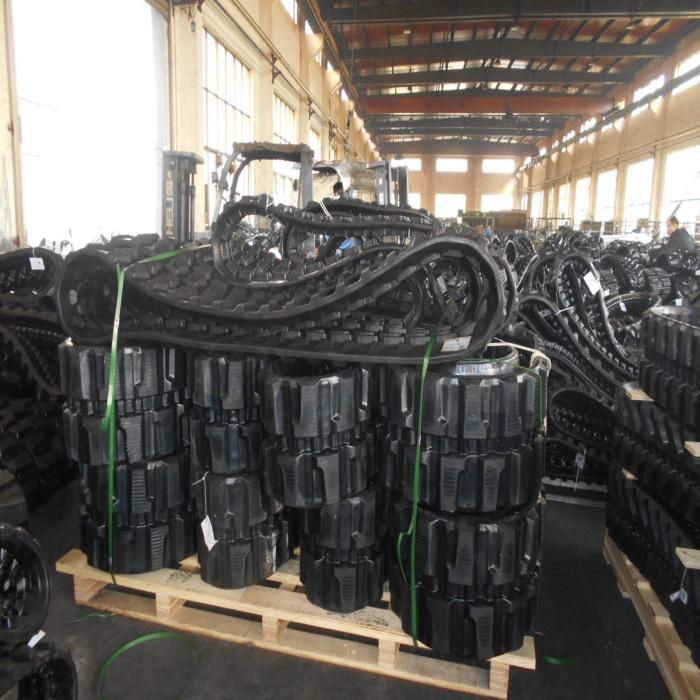

Warehouse:
