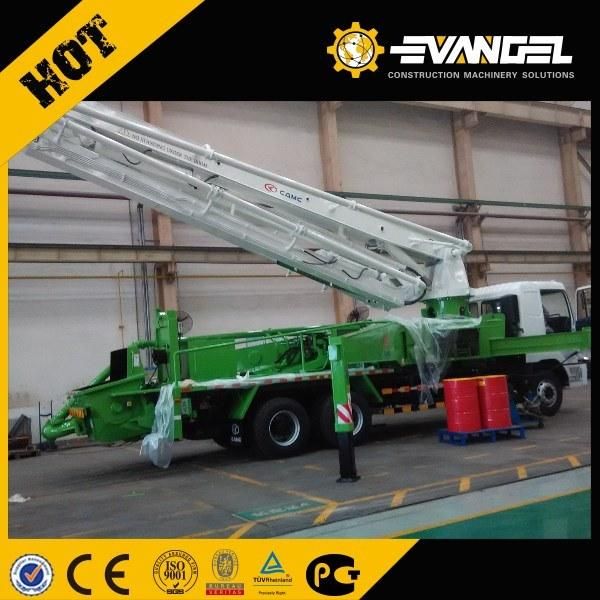

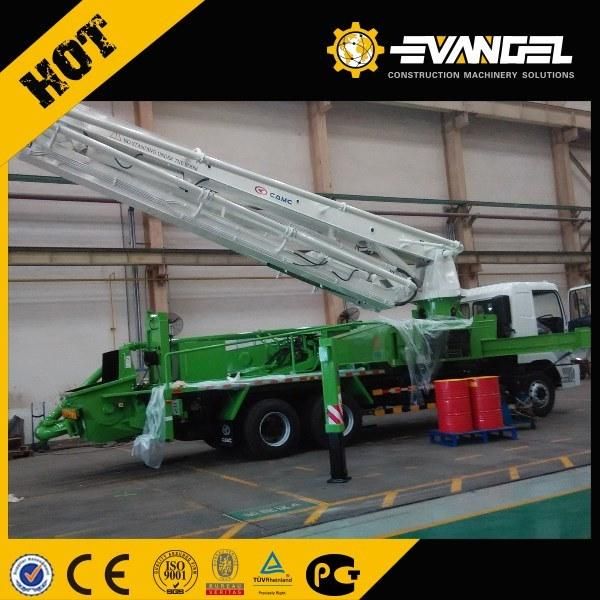

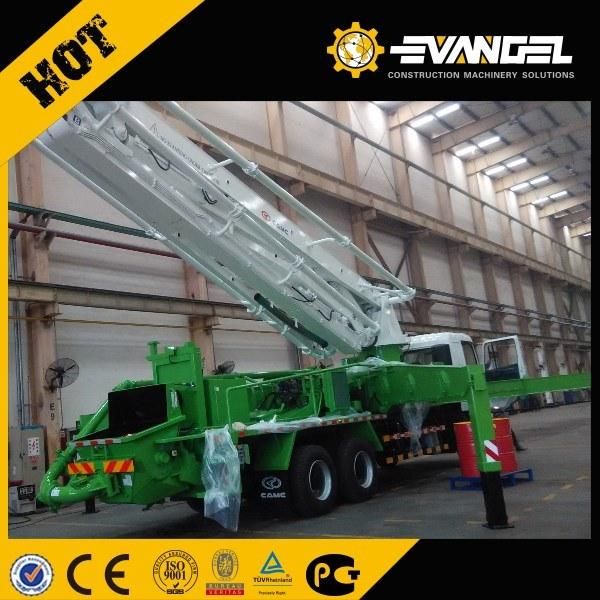

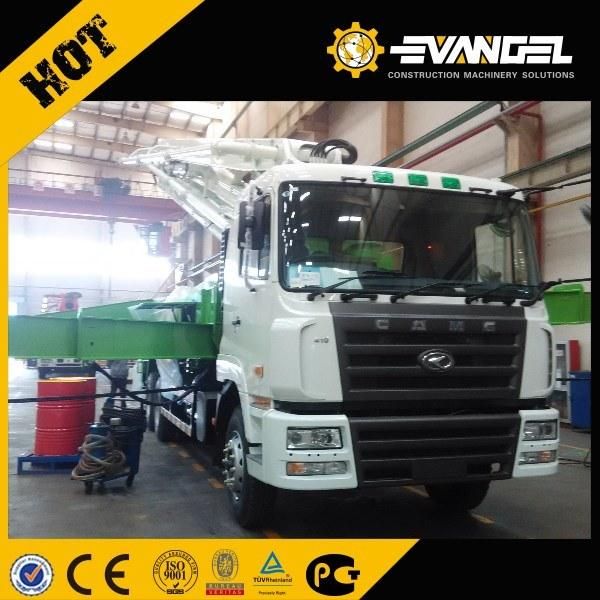

46m Truck Mounted Concrete Pump Sy5313thb46b
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Video Support
- Warranty：1 Year
- Type：Concrete Pump
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Rotor Type
Base Info
- Model NO.：SY5313THB46B
- Productivity：180m²,h
- Feeding Height：1390mm
- Vibrating Amplitude：2.6mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：Green
- Weight：32800kg
- Vertical Reach：46m
- Horizontal Reach：41m
- Reach Depth：28.8m
- Transport Package：N,P
- Specification：CE Certification, ISO9001
- Origin：Shanghai, China
- Production Capacity：30sets, Month
Description
Dead weight
32800kg
Vertical reach
46.0m
Horizontal reach
41m
Reach depth
28.8m
Unfolding reach
13.4m
1st section
Length
9255mm
Articulation
90°
2nd section
Length
7060mm
Articulation
180°
3rd section
Length
6890mm
Articulation
180°
4th section
Length
9220mm
Articulation
240°
5th section
Length
9580mm
Articulation
240°
Rotation
360°
Outrigger spread L-R-Front
8820mm
Outrigger spread L-R-Rear
85400mm
