• Model NO.：9035E
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Operating Weight with Cab：3980 Kg
• Engine Power：21.2 Kw (28.4 HP)
• Bucket Capacity 1：0.06-0.11 Cbm
• Maximum Travel Speed (High)：4.6 Km,H
• Maximum Travel Speed (Low)：2.7 Km,H
• Maximum Swing Speed：10 Rpm
• Cutting Height：4710 , 4843 mm
• Digging Depth：3085 , 3440 mm
• Digging Reach：5385 , 5715 mm
• Boom：2450 mm
• Arm：1320 , 1700 mm
• Model：Yammar 3tnv88-Bply
• Transport Package：Roro, Nube, Container
• Specification：3980 kg
• Trademark：Liugong
• Origin：Guangxi, China
• HS Code：8429521200
• Production Capacity：500

Operating weight with cab3980 kgOperating weight with canopy3860 kgEngine power21.2 kW (28.4 hp) @ 2400 rpmBucket capacity0.06-0.11 m³Maximum travel speed (High)4.6 km/hMaximum travel speed (Low)2.7 km/hMaximum swing speed10 rpmArm breakout force20 kNBucket breakout force30 kNShipping length4810 / 4860 mmShipping width1700 mmShipping height2500 mmTrack shoe width (std)300 mmBoom2450 mmArm1320 / 1700 mmDigging reach5385 / 5715 mmDigging reach on ground5270 / 5603 mmDigging depth3085 / 3440 mmVertical wall digging depth2503 / 2713 mmCutting height4710 / 4843 mmDumping height3310 / 3463 mmMinimum front swing radius2416 / 2413 mmDozer-up370 mmDozer-down390 mmSwing boom left rotation70 °Swing boom right rotation50 °ModelYammar 3TNV88-BPLYEmissionEU Stage IIIASystem maximum flow92.4 L/min ( 24 gal/min)System pressure24.5 MPa

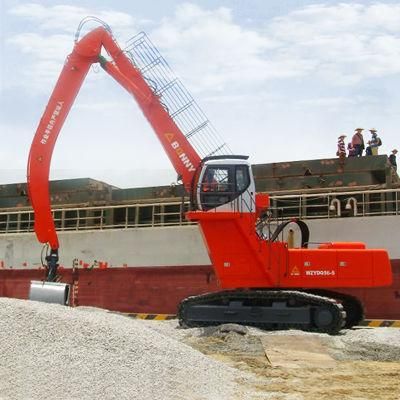

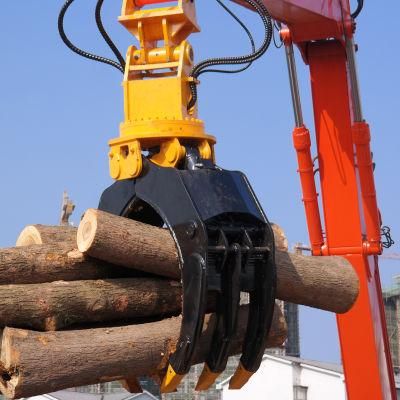

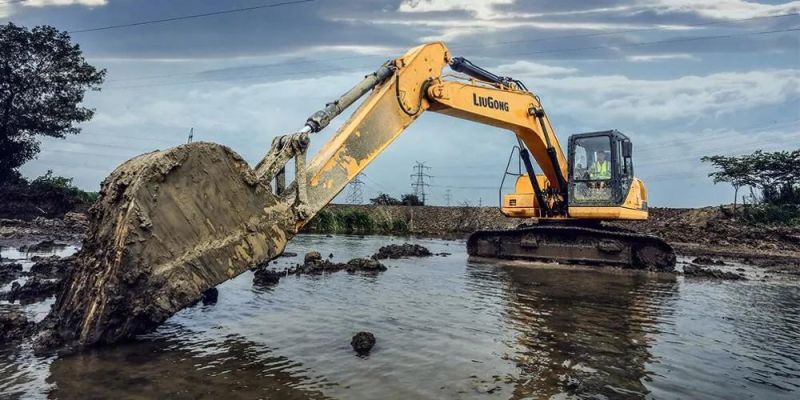

Product photos
