• Model NO.：SWL50E
• Type：Medium-sized Loader
• Product Name：Front Wheel Loader
• Brand：Sinoway
• Engine：Cummins
• Engine Power：158kw
• Bucket Capacity：3.0m3
• Operating Weight：16.2 Ton
• Color：Yellow
• Warranty：One Year
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：300 PCS,Month

Basic Info.

Model NO. SWL50E Type Medium-sized Loader Product Name Front Wheel Loader Brand Sinoway Engine Cummins Engine Power 158kw Bucket Capacity 3.0m3 Operating Weight 16.2 Ton Color Yellow Warranty One Year Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 300 PCS/Month

Product Description

Main Features

Equipped with Cummins engine with strong power and high reliability.
All-around visibility. High-strength integral framework is used for cab, which ensures high security. Good seal & shock absorption effect , quality seat and optional A/C provide the users with comfortable operating environment.
The optimal matching of energy-saving engine, efficient torque converter and hydraulic system contributes to excellent energy efficiency.
New type reinforced drive axles are adopted for large bearing capacity and high reliability. Reasonable distribution on front and rear axles ensures overall stability.
.Reinforced box type articulated structure increases steering angle and reliability, contributing to flexibility.
Working devices are optimized. High-strength wear-resisting cutting edge is used on bucket, increasing the wear resistance.
Low pressure and wide bias tyres are adopted for exceptional off-road ability and passage capacity, adapting to various road conditions.

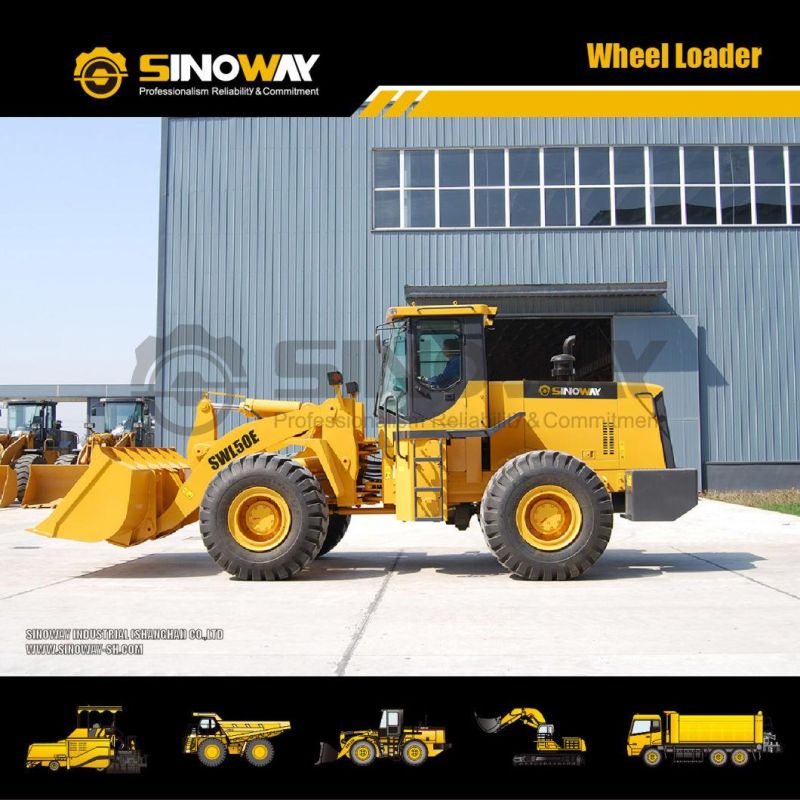

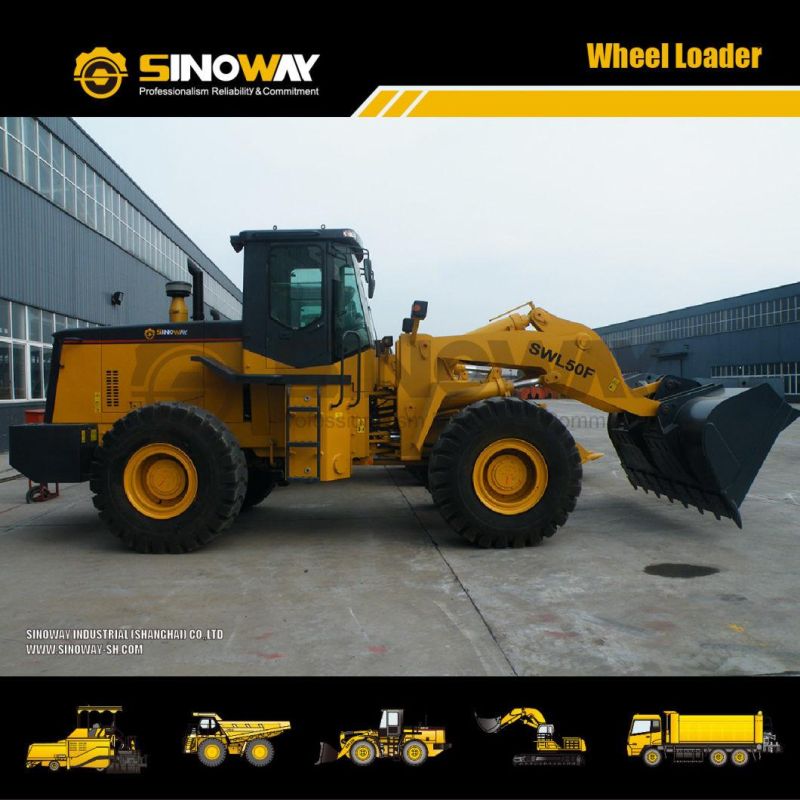

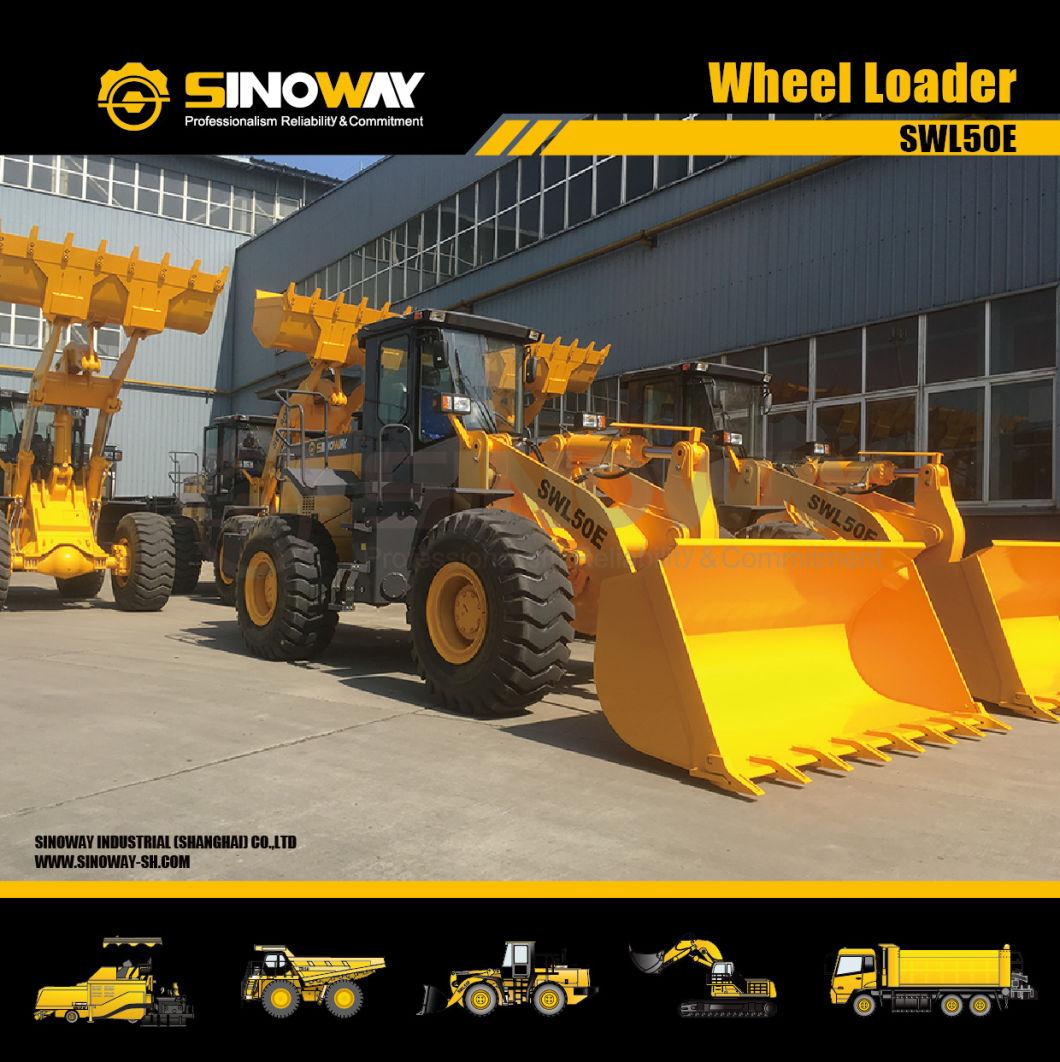

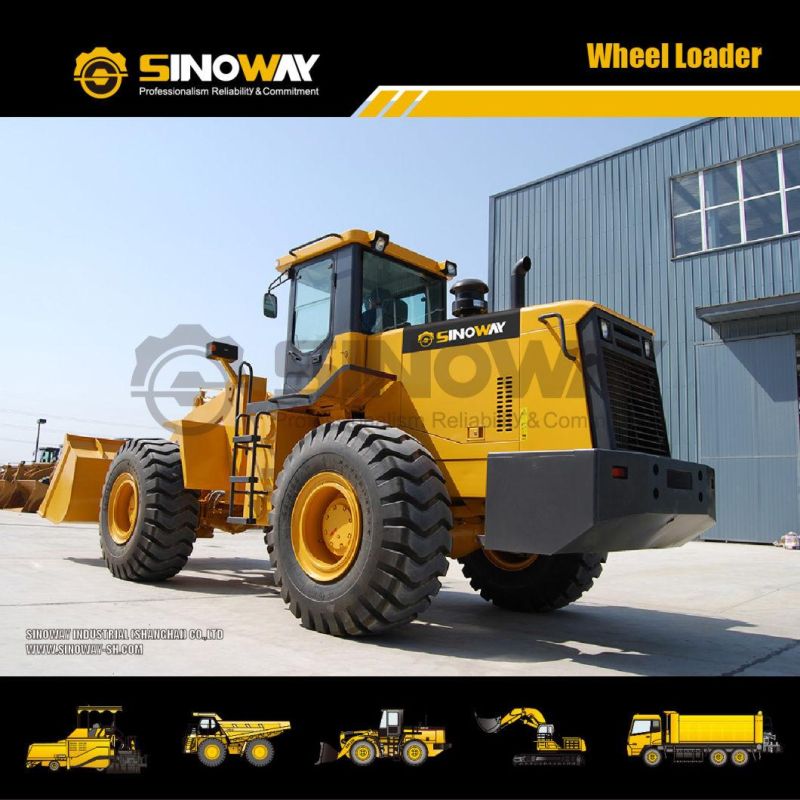

Product Show




Specifications


Engine
Model	Cummins 6CTA8.3
Type	Six-cylinder,water-cooled,turbocharged,mechanical injection
Rated power	158KW
Rated speed	2200rpm
Main Technical Specification
Rated load	5000Kg
Operating weight	16200Kg
Rated bucket capacity	3.0m3
Max. breakout force	185KN
Max. dump clearance	3121mm
Dump reach	1200mm
Dump angle at any position	45o
Digging depth(with bucket bottom horizontal)	212mm
Min. turning radius(outside of bucket)	6300mm
Oscillating angle of rear axle	±11o
Lifting time of bucket	≤5.8s
Lowering time of bucket	≤3.8s
Dumping time	≤1.43s
Implement Hydraulic System
Model of oil pump	JHP3100
System pressure	17MPa
Model of multi-way directional valve	DF32.2C
Priority valve	DJS2-UX
Axle And Tyre
Type of main reducer	Single stage
Gear ratio of main reducer	4.625
Type of final reducer	Column straight gear planet speed reducer
Gear of ratio of final reducer	4.94
Total ratio	23.85
Max. tractive force	160KN
Tyre size	23.5-25
Steering System
Type	Middle articulated frame,Co-axis flow amp. steering
Model of steering pump	CBGJ2080
Model of redirector	TLF1-E1000C
System pressure	16MPa
Articulated steering angle	38±1o(L/R)
Transmission System
Torque Converter
Type	Single stage double turbine,colligation
Torque ratio	3.32
Cooling type	Pressure oil circulating
Gear box
Type	Power shift
Gear shifts(Forward/Reverse)	F2/R1
Travelling speed(km/h)
Forward/Reverse I	12.8/16
ForwardII	33.4
Dimensions
Overall length(with bucket on ground)	8075mm
Overall width(to outside of wheels)	2860mm
Overall height(to the top of the cab)	3140mm
Bucket width	2975mm
Wheel base	3250mm
Tread	2240mm
Ground clearance	450mm
Service Capacities
Fuel tank	320L
Engine crank case	22L
Converter and gear box	45L
Hydraulic tank	200L
Braking System
Service brake type	Double pipes,gas drive oil,four wheel disc type braking
Air pressure	0.68Mpa
Parking brake type	Draper-type soft axle control
