• Model NO.：ST1200C
• Travel Speed：0-5km,H
• Centrifugal Force：22kn
• Certification：EPA, CE, ISO 9001:2000, SGS
• Condition：New
• Drum Size：560*800mm*2
• Climbing Ability：30%
• Weight：1200kg
• Engine：Changchai
• Power：11HP
• Number of Cylinders：1
• Steering Method：Hydraulic Steering
• Vibrating Form：Hydraulic Motors
• Pump Brand：Sauer
• Dring Motor Brand：Donfoss
• Vibrating Motor Brand：Sauer
• Product Name：Good Quality Hydraulic Vibratory Road Roller with
• Transport Package：Wooden Box or Iron Frame
• Specification：1940*930*2125MM
• Trademark：STORIKE
• Origin：China
• HS Code：8429401900
• Production Capacity：1000PCS,Year

MODEL   ST1200C

WEIGHT

Operating  Weight

SIZE

Working  Width

930mm

Overall   Length

1940mm

Machine  Height

2125mm

Turning   Radius(outer)

2800mm

Width Of Wheel

800mm

Wheel  Diameter

560mm

Track

1356mm

DRIVE

Engine  Manufacturer

CHANGCHAI

Engine  Model

192F

Engine  Type

Single cylinder&vertical&air cooling&four stroke

Number Of  Cylinders

1

Output  Power

8.1kw

Rotating  Speed

3600rpm

Electrical  Equipment

12V

Drive  Mode

Variable displacement pump Stepless speed change Two wheels

WALKING CHARACTERISTICS

Speed(serise/parallel)

0-5km/h

Theoretical Climbing Ability

30%

BRAKE

Working  Brake

Variable displacement pump

STEERING

Steering Mode

Hydraulic  steering

Steering System

Swing  Articulated

EXCITATION SYSTEM

Vibration Steel Wheel

Before

Drive Form

Hydraulic  motors

Vibration  Frequency

65hz

Vibration Amplitude

0.5mm

Exciting  Force

22kn

SPRINKLER  SYSTEM

Water Spray Form

Pressure water spraying

CAPACITY

Hydraulic Oil Capacity

22L

Fuel Capacity

5.5L

Water Tank Capacity

65L

Features:

1.  Equipped with famous brand engine, could guarantee quality stability and excellent performance.

2.  Hawkeye-shaped body design, wide field of vision and beautiful appearance

3.  Used international famous brand hydraulic pump and motor, which can be steplessly shifted and walk forward and backward.

4.  LED display instrument panel.

5.  Assembled with working light and warning light, could work at night.

6.  Ergonomic chair.

7.  Passed CE, SGS and ISO certification and won Red Star Award design.

8.  The steel wheels are equipped with outline marker lamps, could ensure the safety of the operator.

Configuration:

A): Famous brand engine

Company information:

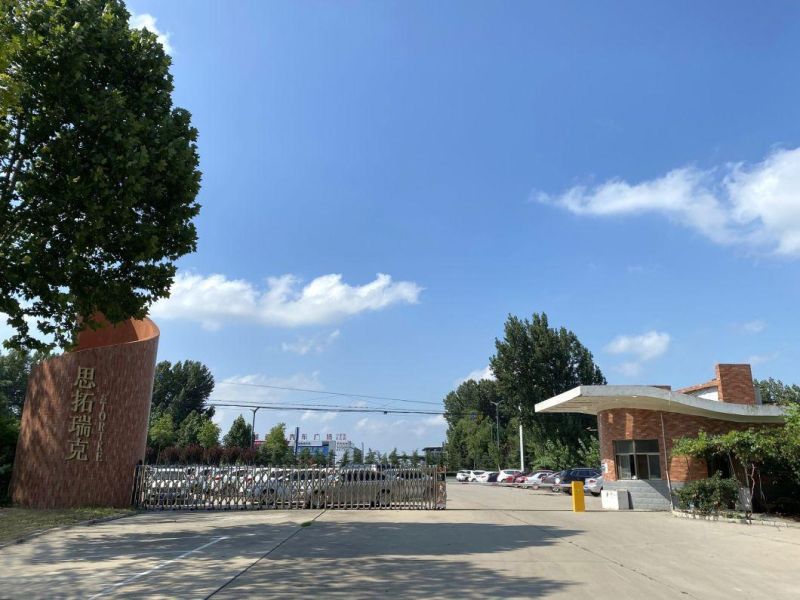

Shandong Storike Engineering Machinery Co., Ltd. was one of the top three small road roller manufacturer in China, located in Jining city, Chinese construction machinery production base. Our company was established in 2011, covered an area of 6,000 square meters with 100,000 units annual output, had rich experience in production and sales. We have 5 major categories: compaction machinery, mobile lighting machinery, concrete machinery, pavement maintenance machinery and hydraulic machinery. Road roller, mobile lighting tower, concrete scarifier, and hydraulic equipment was our hot-selling product. Our company has passed ISO9001 and SGS certification, and some products got CE certificate. Products were exported to more than 50 countries and regions such as USA, Canada, Columbia, Philippines, India and etc. For the domestic market, we have distributors in every area of China. "Integrity, tolerance, innovation, service" is our philosophy. STORIKE believed that Integrity is the foundation of all cooperation. Tolerance is the prerequisite for solving problems. Innovation is the tool for development. Service is the foundation for creating value. We also do ODM and OEM for trading companies. Welcome friends from all over the world to our company for visiting and cooperation.
