Cheap Price Chinese Mini Excavator Small Digger Crawler Excavator Se60 6 Ton New Bagger for Sale
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Any
- Warranty：1 Year Warranty
- Type：Crawler Excavator
- Usage：GM Excavator
- Bucket：Shovel
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：SE60
- Drive Type：Electric Drive
- Bucket Capacity：0.1~0.5m³
- Size：Small-Scale
- Certification：CE
- Condition：New
- Power：36kw
- Operating Weight：5960kg
- Maximum Digging Height：5785mm
- Maximum Digging Depth：3850mm
- Transport Package：Nude Package
- Trademark：shantui
- Origin：China
- HS Code：8429510000
- Production Capacity：20untis,Month
Description
Basic Info.
Model NO. SE60 Drive Type Electric Drive Bucket Capacity 0.1~0.5m³ Size Small-Scale Certification CE Condition New Power 36kw Operating Weight 5960kg Maximum Digging Height 5785mm Maximum Digging Depth 3850mm Transport Package Nude Package Trademark shantui Origin China HS Code 8429510000 Production Capacity 20untis/MonthProduct Description
Cheap Price Chinese Mini Excavator Small Digger Crawler Excavator SE60 6 Ton New Bagger For Sale
SpecificationHigh-end system configuration
The high-performance turbocharged engine with mechanical pump features high power, low fuel consumption, and powerful fuel adaptability. The all-new load-sensing hydraulic system and the over-class high-displacement constant-power pump matches with low pressure loss main valve and large bore pipeline to realize smooth operations and fast response and improve the efficiency by >8.5%.
Paramenters
| Comparative item | SE60(Homemade configuration version) |
| Overall dimensions | |
| Overall length (mm) | 5855 |
| Ground length (During transport) (mm) | 3330 |
| Overall height (To the top of boom) (mm) | 2060 |
| Overall width (mm) | 1880 |
| Overall height (To top of cab) (mm) | 2585 |
| Ground clearance of counterweight (mm) | 710 |
| Minimum ground clearance (mm) | 300 |
| Tail turning radius (mm) | 1655 |
| Track length (mm) | 2560 |
| Track gauge (mm) | 1480 |
| Track width (mm) | 1880 |
| Standard track shoe width (mm) | 400 |
| Turntable width (mm) | 1780 |
| Distance from slewing center to tail (mm) | 1655 |
| Working range | |
| Maximum digging height (mm) | 5785 |
| Maximum dumping height (mm) | 4075 |
| Maximum digging depth (mm) | 3850 |
| Maximum vertical digging depth (mm) | 3000 |
| Maximum digging distance (mm) | 6200 |
| Maximum digging distance at ground level (mm) | 6060 |
| Working device minimum turning radius (mm) | 2395 |
| Maximum lifting height of bulldozer blade (mm) | 385 |
| Maximum digging depth of bulldozer blade (mm) | 465 |
| Engine | |
| Model | Kubota V2607T(China-III) |
| Type | 4-cylinder inline and turbocharged |
| Displacement (L) | 2.615 |
| Rated power (kW/rpm) | 36/2000 |
| Hydraulic system | |
| Type of hydraulic pump | Variable displacement plunger pump |
| Rated working flow (L/min) | 152 |
| Bucket | |
| Bucket capacity (m³) | 0.18~0.22(0.22) |
| Swing system | |
| Maximum swing speed (r/min) | 11 |
| Brake type | Mechanically applied and pressure released |
| Digging force | |
| Bucket arm digging force (KN) | 29 |
| Bucket digging force (KN) | 48 |
| Operating weight and ground pressure | |
| Operating weight (kg) | 5960 |
| Ground pressure (kPa) | 33 |
| Traveling system | |
| Traveling motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 2.7/4.6 |
| Traction force (KN) | 50 |
| Gradeability | 70%(35°) |
| Tank capacity | |
| Fuel tank capacity (L) | 95 |
| Cooling system (L) | 8.5 |
| Engine oil capacity (L) | 9 |
| Hydraulic oil tank/system capacity (L) | 74/110 |

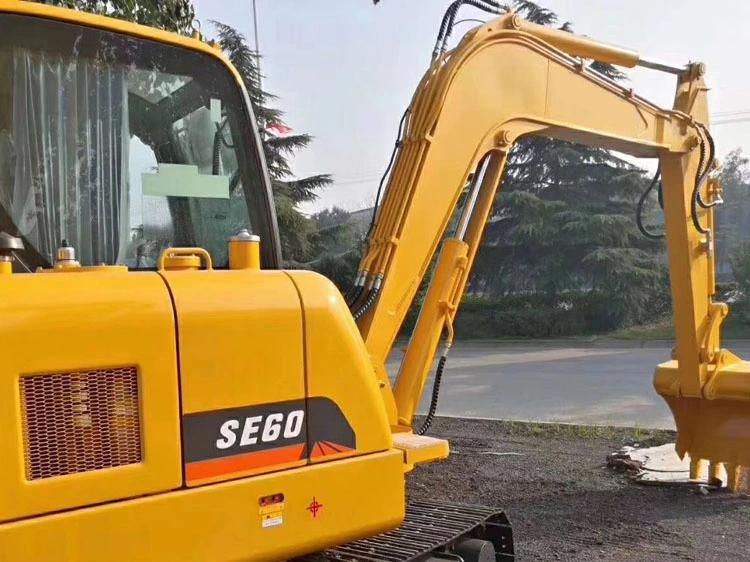

Product pictures
