• Model NO.：YZ12H
• Travel Speed：30cm,s
• Centrifugal Force：13.5KN
• Certification：ISO 9001:2000, ISO 9001:2008
• Color：Yellow
• Transport Package：Nude, Suitable for Shiping
• Specification：ISO
• Trademark：CHANGLIN
• Origin：Changzhou, China
• HS Code：842940190
• Production Capacity：100 Sets,Month

Overall Dimension1Length6000mm2Width(to outside of wheels)2300mm3Height(To the top of the cab)3055mm4Wheel base2945mm5Tread1560mm6Min. ground clearance395mmMain Technical Specification1Static line force300N/cm2Dynamic line force1174 N/cm3Operating weight12000kg4Nominal Amplitude-high-low1.75mm 0.85mm5Centrifugal-Force-high-low250kN 125kN6Total stress force31500(kg)7Static Weight at Drum6500kg8Static Weight at Tires5500kg9Frequency32Hz10Min. turning radius(Outside of rear wheel)5880mm11Drum diameter1530mm12Drum width2130mm13Drum thickness25mm14Traveling speed(Km/h)  Stepless transmission0~12.115Gradient capacity20%Diesel engine1ModelDongfeng engine 6BT5.9-C1502TypeDirect injection. Turbocharged. Water cooling3Rated output110 kW4Bore and stroke102X120mm5Total exhaust of cylinder5.9 (L)6Rated speed2200(r/min)7Max. Torque590(N.M)/1500RPM8Starting typeElectric9Min. specific fuel consumption229(g/Kw.h)10Net weight410±20(kg)Driving System1ModelStatic Hydraulic stepless driving2TypeDrive pump +drive motor + reducer3Model of drive pumpA4VG90HWDL1/32R4Model of drive motorAA2FM80/61W5System pressure40MPa6Type of reducerSpur gear parallel shaft constant-mesh7Gear ratio of reducer2.94Axle and Tire1Type of main reducerspiral bevel gear, single stage2Gear ratio of main reducer3.8893Type of final reducerSingle stage planetary4Gear of ratio of final reducer4.9415Gear ratios19.21556Size of tire23.1-26-12PRWorking Device Hydraulic System1Model of tandem pump(vibrating +steering)HP051B498BIJM20-7BRAB06-12Vibrating hydraulic system pressure160(kgf/cm2)3Model of oil motorHM051A878BEP020-74Solenoid vibratory valveZF250BSteering System1TypeMiddle articulated frame. Full-hydraulic Steering3Model of redirectorBZZ1-E500C4System pressure12MPa5Dimension of steering cylinder90*45*280(mm)Brake System1Type of traveling brakeSingle chamber brake valve disc brake Air over oil activate rear axle2Air pressure6-8(kgf/cm2)3Type of parking brakeHand brake
Flexible shaft control clamp brakeOil Capacity1Fuel(diesel)250 (L)2Engine lubricating oil15 (L)3Oil for gear box2.2(L)4Oil for hydraulic system200 (L)5driving axles(R)Oil for main reducer18(L)Oil for final reducer2X3(L)6Oil for brake system1.5( L)7Oil for vibrating drum2X56(L)

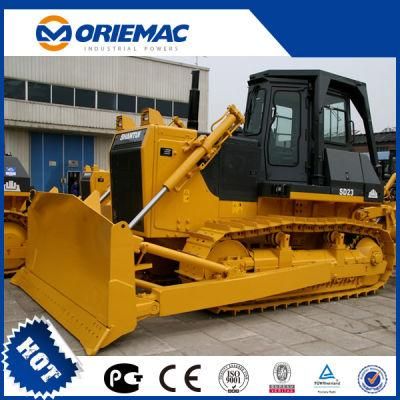

The other construction machinery/construction equipment are available, such as wheel loaders, motor graders, backhoe loaders, etc.
