• Model NO.：CLG4165
• Product Nmae：Liugong Clg4165 Top Brand 15000kg 3960mm Blade Mot
• Weight：15000kg
• Blade Width：3660mm
• Transport Package：Nude
• Specification：160(215)@2200kw
• Trademark：CCC ISO9001
• Origin：China
• HS Code：84295100
• Production Capacity：100unit,Month

Engine  DCEC 6CTAA8.3-C215Rated Power(kW)160(215)@2200Blade Widthmm(inches)3960(156)Maximum SpeedKm/h (mph)40.3 (25)Draw Bar Pull(kN)86Operating WeightKg(Lb)16500(36376)ENGINETier  IIMake  Dongfeng CumminsGross PowerKW(HP)@rpm160(215)@2200Net PowerKW(HP)@rpm144(195)@2200Peak Torque  908N. M/1500rpmTorque Rise %  31%Number of Cylinders  6Aspiration  Turbo air-to-air aftercooledTRANSMISSIONTransmission Type  Power shiftTransmission Configuration  6f/3rTorque Converter  Three-member single turbineMaximum Travel Speed, fwd(km/h)42 (25.8)Maximum Travel Speed, rev(km/h)25.6 (15.9)Number of Speeds, fwd  6Number of Speeds, rev  3AXLESFront Axle Make  LiuGong Weld axleRear Axle Make  MeritorDifferential Type  No-spin limited slip standardFinal Drive Type  Chain driveAxle Oscillation  ±15°Front Axle Type  All welded steel frameFront Axle, Wheel Lean Angle  ±17°STEERINGSteering Configuration  Load sensor steering gearSteering Relief Pressure(MPa)17Minimum Turning Radius(inches)8000(315)Steering Angle  ±45°Frame Articulation Angle  ±20°BRAKESService Brake Type  (Dry)shoeService Brake Location  Rear axle onlyService Brake Actuation  HydraumaticTIRESTire Size  17.5-25 PR12/L3HYDRAULIC SYSTEMMain Pump Type  GearMain Relief Pressure(MPa)18Pilot Pump FlowL(Gal)/min126(33)WORKING CAPACITIESMaximum Draw Pull(kN)90Cutting PressureKg(Lb)8100(17857)TANDEM DRIVE PERFORMANCEHeightmm(inches)600(24)Widthmm(inches)210(8)Thickness, inner wall / outer wallmm(inches)20/20(0.8/(0.8)Center Distancemm(inches)1538(61)Oscillating Angle  ±15°MOLDBOARD PERFORMANCEBank Cut Angle  40~70Moldboard Lift Above Groundmm(inches)405(16)Moldboard Side Shift, right / leftmm(inches)725/675(29/27)Maximum Sloping Angle  90°Cutting Depthmm(inches)600(24)Circle Rotation  360°Circle Diametermm(inches)1455(57)Circle Thicknessmm(inches)140(6)DIMENSIONSWheelbasemm(inches)6230(245)Overall Lengthmm(inches)8971(353)Overall Height with Cab  3438(135)Overall Widthmm(inches)2600(102)Clearance under Front Axlemm(inches)645(25)Moldboard Standard Lengthmm(inches)4270(168)Moldboard Standard Thicknessmm(inches)19(0.7)Moldboard Standard Heightmm(inches)650(24)OPERATING WEIGHTSOperating WeightKg(Lb)16500(36376)On Front WheelsKg(Lb)4700(10362)On Rear WheelsKg(Lb)11800(26015)SERVICE CAPACITIESFuel TankL(Gal)230(61)Engine OilL(Gal)22(6)Cooling SystemL(Gal)45(12)Hydraulic ReservoirL(Gal)186(49)Transmission And Torque ConverterL(Gal)45(12)Tandems, EachL(Gal)28(7)

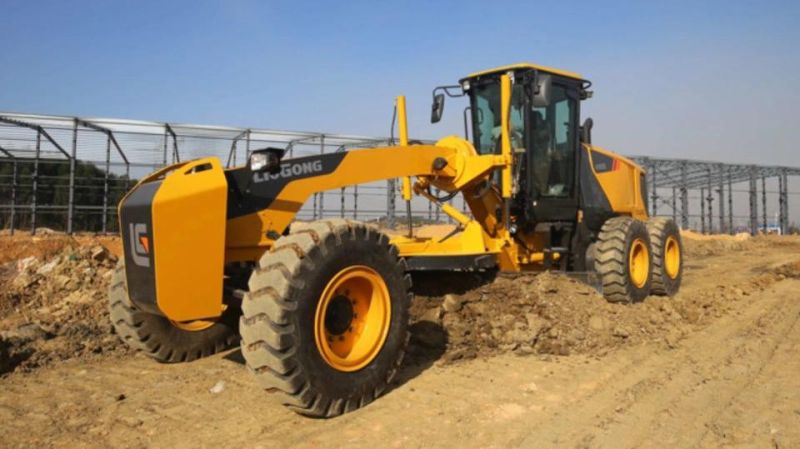

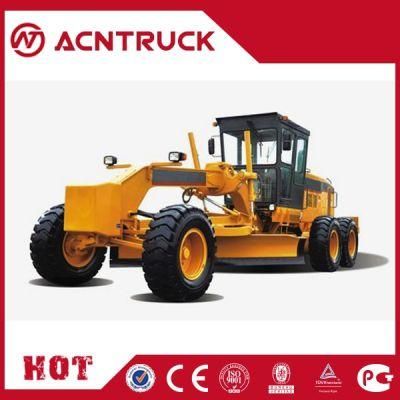

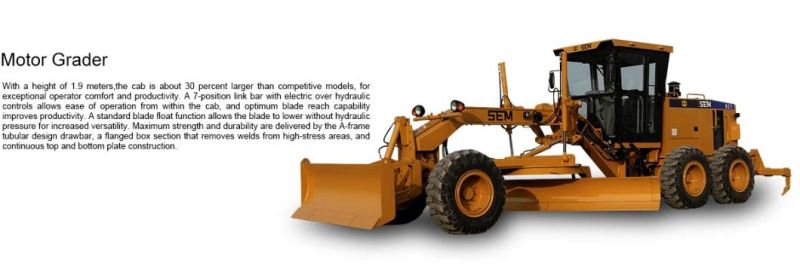

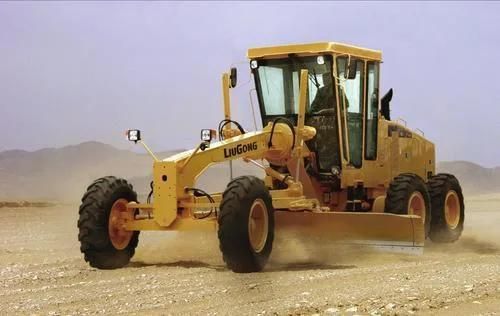

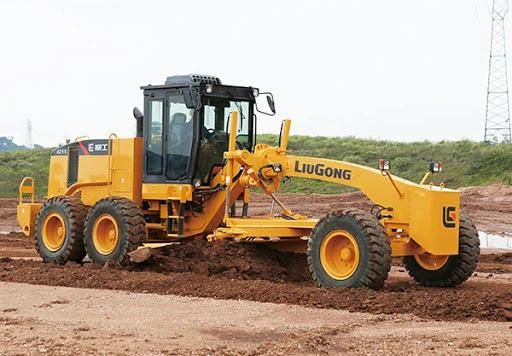

II. Overall View







III. Our Company
