• Model NO.：LW500FN
• Type：Medium-sized Loader
• Color：Yellow
• Weight：16900kg
• Reach at Maximum Lift：1100~1190mm
• Max.Breakout Force：170kn
• Tyre Specification：23.5-25-16pr
• Rated Power：162kw
• Engine：Wd10g220e21
• Wheel Base：2960mm
• Transport Package：Nude Packing
• Specification：7910*3016*3515mm
• Trademark：EVANGEL
• Origin：China
• Production Capacity：200units,Month

Basic Info.

Model NO. LW500FN Type Medium-sized Loader Color Yellow Weight 16900kg Reach at Maximum Lift 1100~1190mm Max.Breakout Force 170kn Tyre Specification 23.5-25-16pr Rated Power 162kw Engine Wd10g220e21 Wheel Base 2960mm Transport Package Nude Packing Specification 7910*3016*3515mm Trademark EVANGEL Origin China Production Capacity 200units/Month

Product Description

5 ton wheel loader LW500FN with Weichai engine

LW500FN Wheel loader
1,High torque and high efficiency drive chain features reasonable matching.
2,The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
3,This engine meets the instant overload demand during operations and sufficiently provides the power required for heavy-load operations.
4,The air-assisted hydraulic four-wheel caliper brakes feature stable braking and high safety and reliability.
5,The easy and convenient daily maintenance ensure that the machine is under the best ready status at all times.

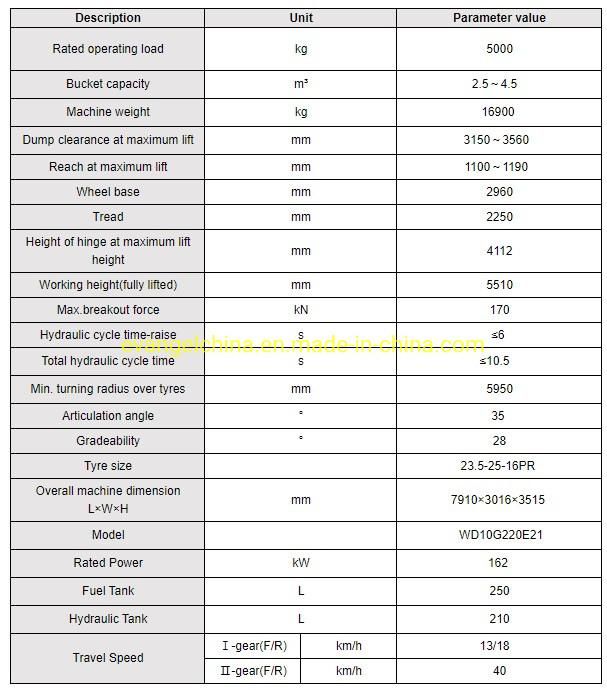

Description	Unit	Parameter value
Rated operating load	kg	5000
Bucket capacity	m³	2~4.5
Machine weight	kg	16900
Dump clearance at maximum lift	mm	3150~3560
Wheel base	mm	2960
Tread	mm	2250
Height of hinge at maximum lift height	mm	4112
Working height(fully lifted)	mm	5510
Max.breakout force	kN	170
Hydraulic cycle time-raise	s	≤6
Total hydraulic cycle time	s	≤10.5
Min. turning radius over tyres	mm	5950
Articulation angle	°	35
Gradeability	°	28
Tyre size		23.5-25-16PR
Overall machine dimension L×W×H	mm	7910×3016×3515
