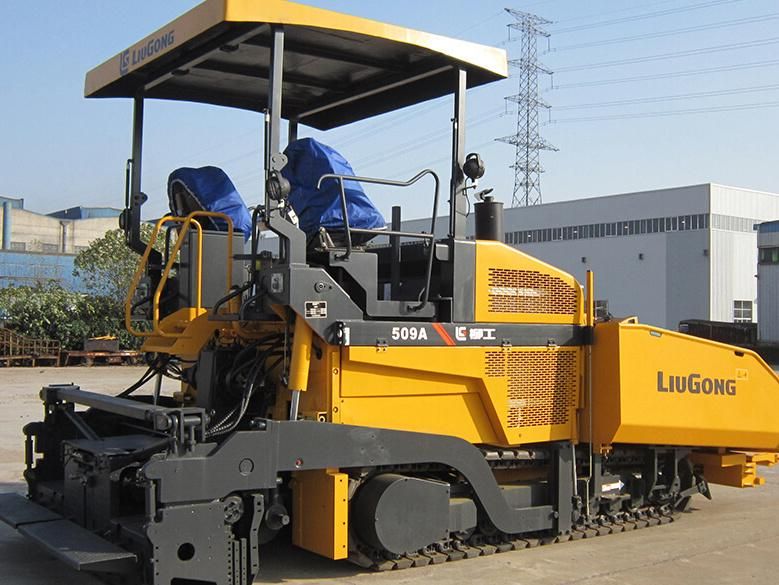

• Model NO.：509A
• Automatic Grade：Semi-Automatic
• Product Capacity：>400t,h
• Certification：ISO9001: 2000, CE
• Condition：New
• Paving Width Range：2.5~9.5 M
• Maximum Paving Thickness：350mm
• Theoretical Productivity：800 T,H
• Operating Mass：22ton
• Engine Model：Qsb6.7-215c
• Rated Power：158 Kw (215 HP) @ 2000 Rpm
• Paving Speed：0~18 M,Min
• Traveling Speed：0~2.8 Km,H
• Hopper Capacity：16ton
• Gradability：20%
• Max. Smoothness：2 mm
• Tamper Type：Double Tamper
• Tamper Frequency：0~25
• Vibration Frequency：1~50
• Fuel Tank Capacity：330L
• Transport Package：Nude Package, Suitable for Shipment
• Specification：6923*2720*3808mm
• Trademark：Acntruck
• Origin：China
• HS Code：8429510000
• Production Capacity：100 Pieces,Month

 509A Merchanical509A HydraulicPaving Width Range2.5~9.5 m3~9 mMaximum Paving Thickness350 mm300 mmTheoretical Productivity800 t/h800 t/hOperating Mass22 t21 tModelQSB6.7-215CQSB6.7-215CRated Power158 kW (215 hp) @ 2000 rpm158 kW (215 hp) @ 2000 rpmPaving Speed0~18 m/min0~18 m/minTraveling Speed0~2.8 km/h0~2.8 km/hHopper Capacity16 t16 tGradability≥20%≥20%Smoothness≤2 mm≤2 mmSlope Error±0.02%±0.02%Tamper TypeDouble TamperSingle TamperTamper Frequency0~250~25Tamper Swing Front0/3/6/8.5/12 mm5 mmTamper Swing Rear3/5/6/7/8/9 mm- mmVibration Frequency1-501-37Crown Adjustment-1~3%-1~3%Paving Compactness Asphalt Asphalt≥90%≥90%Paving Compactness Asphalt Stabilized Soil≥80%≥80%Fuel Tank Capacity330 L330 LLength6923 mm7085 mmWidth2720 mm3100 mmHeight3808 mm3808 mm
