Rubber Pad Bolt on 450mm Width 135mm Pitch for Excavator
Shanghai Puyi Industrial Co., Ltd.- After-sales Service:Free Replacement
- Warranty:12 Months
- Type:Crawler
- Application:Excavator
- Certification:ISO9001: 2000
- Condition:New
Base Info
- Model NO.:450B
- Matrial:Rubber and Steel
- Length:450mm
- Width:124mm
- Height:49mm
- Weight:3.5kg
- Color:Black
- Transport Package:Standard Packings or as Your Requirements
- Specification:450B
- Trademark:No Marks or As Buyer′s Requests
- Origin:Shanghai, China
- HS Code:8431499900
- Production Capacity:5000 Pieces,Month
Description
Basic Info.
Model NO. 450B Matrial Rubber and Steel Length 450mm Width 124mm Height 49mm Weight 3.5kg Color Black Transport Package Standard Packings or as Your Requirements Specification 450B Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 5000 Pieces/MonthProduct Description
Hitachi ZX75UR Rubber pad Bolt on type 450 length 135 pitch
Features
- Easy to fit and install in minutes!
- Superior rubber compounds for long lasting durability
- Attach directly to your existing grousers - or remove them and bolt to your drive chain!
- Easy replacement of single units if one becomes damaged
- Many types and sizes available to fit almost every machine on the market
Benefits
- Quieter, smoother ride
- Increase profitability by decreasing liabilities
- Eliminate costly surface damage
- Save Labour & Material costs by eliminating rubber matting / plywood for surface protection
- Eliminate costly surface damage
- Save Labour & Material costs by eliminating rubber matting / plywood for surface protection
- Save Labour & Material costs by eliminating rubber matting / plywood for surface protection
- Reduce Vibration - Increase under carriage life
- Get a grip on Safety - Steel tracks slip on hard surfaces. Rubber bonds.
- Best option for equipment 8 ton and up due to weight class.
- Rubber pads allow owners to benefit from the securities of rubber while having the strength of the steel chain
Specification:
Application:
[Komatsu]
PC40(76)PC40MR-2( 78)PC45(76)PC50(76)PC50MR-2(78)PC58
[HITACHI]
EX40(76)EX45(76) EX50(76)EX55(76)EX58(78 )ZX40U(76)ZX50(76)
ZX55UR(76)
[SHIN CATERPILLAR MITSUBISHI]
MM40(76)MM45(76) MM55(76)304CR(76)305CR(76)
[KOBOTA]
K040(76)K045(76 )RX502(78)U40-1,-2 ,-3(78)U45(76)U50(78)
[YANMAR]
B50(74)B6U(76) Vio50(76)
[SUMITOMO]
SH40JX(76)SH4 ,4J,4UJ,4JX(76)SH50U(76)SH55U-2(76)SH55J(78)
SH65U-1,2(82)
[KOBELCO]
SK042(76)SK045(76) SK40SR(72)SK45SR(76) SK50UR(76) SK60
[Airman]
AX40(76)AX45(76) AX58MU(78)AX40U,50U(76)
[IHI]
40JX(76)45J,UJ( 76)50Z(78)
[KATO]
HD50UR(78)HD140(78) HD205UR(78 )
Other size:
Bolt-on
Type | Pitch | h | D | d | Bolt | L | W | H | Weight |
230BA | 90 | 15 | 150 | 0 | M12 | 230 | 60 | 31 | 0.800 |
230B | 101 | 16 | 150 | 0 | M12 | 230 | 70 | 39 | 0.900 |
250B | 101 | 16 | 200 | 0 | M12 | 250 | 70 | 39 | 0.925 |
300B | 101 | 16 | 200 | 0 | M12 | 300 | 70 | 39 | 1.100 |
300BA | 101 | 16 | 200 | 0 | M12 | 300 | 70 | 39 | 1.100 |
350B | 101 | 16 | 200 | 0 | M12 | 350 | 70 | 39 | 1.230 |
350BA | 101 | 16 | 250 | 0 | M12 | 350 | 70 | 39 | 1.230 |
350BD | 135 | 14 | 250 | 46 | M12 | 350 | 106 | 40 | 2.035 |
350BL | 135 | 14 | 290 | 46 | M12 | 350 | 106 | 40 | 1.900 |
350BR | 135 | 14 | 290 | 46 | M12 | 350 | 106 | 40 | 1.900 |
380B | 135 | 14 | 300 | 46 | M12 | 380 | 106 | 40 | 2.330 |
400B | 135 | 14 | 300 | 46 | M12 | 400 | 106 | 40 | 2.180 |
400BLR | 135 | 14 | 300 | 46 | M12 | 400 | 106 | 40 | 2.190 |
400BW | 140 | 18 | 300 | 52 | M14 | 400 | 123 | 65 | 4.000 |
400BH | 140 | 18 | 350 | 52 | M14 | 400 | 123 | 45 | 3.000 |
450BE | 135 | 14 | 350 | 46 | M12 | 450 | 106 | 40 | 2.450 |
450B | 154 | 20 | 350 | 58 | M14 | 450 | 124 | 49 | 3.500 |
450BLR | 154 | 20 | 350 | 58 | M14 | 450 | 124 | 49 | 3.500 |
500B | 171 | 20 | 400 | 60 | M16 | 500 | 137 | 57 | 4.580 |
500BA | 175 | 26 | 400 | 57 | M16 | 500 | 126 | 59 | 4.510 |
600B | 190 | 26 | 400 | 69 | M20 | 600 | 136 | 71 | 7.500 |
260BM | 18 | 190 | 53 | M12 | 260 | 120 | 50 | ||
260B | 18 | 200 | 54 | M14 | 260 | 112 | 48 | ||
260BK | 18 | 200 | 57 | M14 | 260 | 120 | 48 | ||
300BM | 18 | 227 | 57 | M12 | 300 | 120 | 50 | ||
300BK | 18 | 220 | 57 | M14 | 300 | 130 | 55 | ||
350BK | 155 | 25 | 270 | 60 | M14 | 350 | 135 | 60 | 4.000 |
400BK | 25 | 300 | 60 | M14 | 400 | 135 | 60 | ||
450BK | 31 | 350 | 80 | M14 | 450 | 170 | 76 | ||
200T | 0 | 160 | 0 | M14 | 200 | 90 | 30 | ||
305BP | 0 | 177.8 | 0 | M16 | 305 | 114 | 32 | ||
355BP | 0 | 237.5 | 0 | 5/8" | 355 | 132 | 32 | ||
455BP | 0 | 305 | 0 | 3/4" | 455 | 132 | 32 | ||
300-2 | 155 | 18 | 220 | 0 | M14 | 300 | 135 | 50 | 2.400 |
300-4 | 155 | 18 | 220 | 45 | M12 | 300 | 135 | 50 | 2.400 |
320-2 | 155 | 18 | 220 | 0 | M14 | 320 | 135 | 50 | 2.700 |
320-4 | 155 | 18 | 220 | 45 | M12 | 320 | 135 | 50 | 2.700 |
Chain-on
Type | Pitch | D | d | S | Bolt | L | W | H | Weight |
300C | 135 | 144 | 116 | 22 | M12 | 300 | 95 | 45 | |
400C | 135 | 94 | 64 | 46 | M12 | 400 | 125 | 52 | |
400CA | 135 | 99 | 72 | 43.5 | M12 | 400 | 125 | 52 | |
400CK | 135 | 100 | 73 | 43.5 | M12 | 400 | 125 | 52 | |
400CB | 135 | 104 | 80 | 46 | M12 | 400 | 125 | 52 | |
400CD | 135 | 110 | 80 | 46 | M12 | 400 | 125 | 52 | |
400CV | 135 | 106 | 76 | 46 | M12 | 400 | 125 | 52 | |
400CK | 140 | 80 | 80 | 52 | M12 | 400 | 125 | 52 | |
400CW | 140 | 86 | 86 | 52 | M12 | 400 | 125 | 52 | |
450CN | 140 | 83 | 83 | 52 | M12 | 450 | 125 | 52 | 6kg |
450CW | 140 | 86 | 86 | 52 | M12 | 450 | 125 | 52 | |
450CA | 135 | 99 | 72 | 43.5 | M12 | 450 | 125 | 52 | |
450CB | 154 | 90 | 90 | 46.3 | M14 | 450 | 146 | 55 | |
450CD | 154 | 90 | 90 | 55 | M14 | 450 | 146 | 55 | |
450CS | 154 | 73 | 73 | 57 | M14 | 450 | 146 | 55 | |
450C | 154 | 89 | 73 | 57 | M14 | 450 | 146 | 55 | 8kg |
500CW | 135 | 104 | 80 | 46 | M12 | 500 | 125 | 52 | |
500CB | 175 | 102.4 | 86.4 | 57 | M16 | 500 | 162 | 69 | |
500C | 171 | 108 | 108 | 60.4 | M16 | 500 | 162 | 69 | 12.3kg |
500CS | 171 | 104 | 88 | 58 | M16 | 500 | 162 | 69 | |
500CA | 190 | 160.4 | 124.4 | 62 | M20 | 500 | 178 | 72 | |
500CD | 190 | 155.6 | 119.6 | 69 | M20 | 500 | 178 | 72 | |
600C | 171 | 108 | 108 | 60.4 | M16 | 600 | 162 | 69 | |
600CD | 190 | 155.6 | 119.6 | 69 | M20 | 600 | 178 | 72 | |
600CA | 190 | 160.4 | 124.4 | 62 | M20 | 600 | 178 | 72 | |
600CB | 190 | 160.4 | 124.4 | 62 | M18 | 600 | 178 | 72 | |
300 | 155 | 88.9 | 88.9 | 57.1 | M12 | 300 | 186 | 55 | 6kg |
320 | 155 | 104 | 88.9 | 55 | M12 | 320 | 186 | 55 |
3. Clip-on
Type | Pitch | h | L | W | H | Weight |
380HD | 135 | 18 | 380 | 104 | 55 | 3.215 |
400HD | 135 | 18 | 400 | 106 | 51 | 3.055 |
450HD | 135 | 18 | 450 | 106 | 51 | 3.395 |
450HW | 154 | 20 | 450 | 124 | 50 | |
450HB | 175 | 26 | 450 | 127 | 68 | 5.600 |
500HD | 175 | 26 | 500 | 127 | 68 | 6.230 |
500HW | 171 | 20 | 500 | 137 | 68 | |
500HB | 175 | 18 | 500 | 127 | 60 | 6.206 |
600HD | 175 | 26 | 600 | 127 | 68 | 7.220 |
600HB | 190 | 26 | 600 | 137 | 71 | 8.220 |
600HA | 216 | 30 | 600 | 160 | 76 | 8.980 |
700HW | 171 | 20 | 700 | 137 | 63 | 8.200 |
700HD | 175 | 26 | 700 | 127 | 68 | 8.275 |
750HA | 216 | 30 | 750 | 160 | 76 | |
800HD | 190 | 26 | 800 | 137 | 70 | 9.505 |
Quality Control:
1.Ex works Inspection
2.Products Audits/Examination(Strict inspection according to customer's request)
3.Production Procedure Audit/Examination(Entire Procedure Control)
4.Raw material Inspection/Examination;Purchased Parts Inspection(Including All Purchased Material)
Rubber track warranty
All Pooyert rubber tracks and rubber pads are one year normal use warranty,If there is any quality problem,during the warranty period,we are responsible for the replacement of the new rubber track,just need to provide photos of the tracks as they sit on the machine and serial number on the tracks.

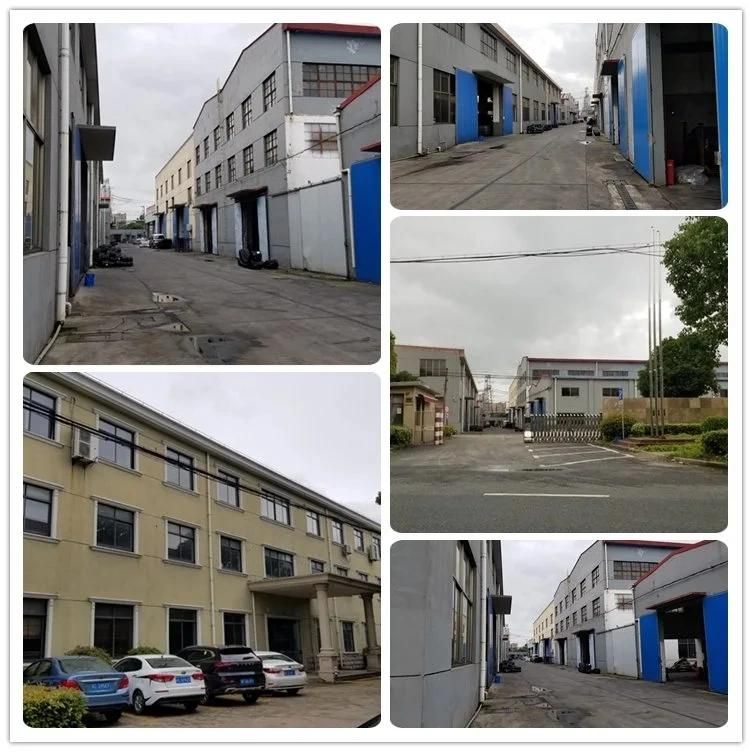

Workshop:
