Ramming Machine for Installation of Highway Guardrail Air Compressor to Increase The Strength of Piling

Xuzhou Hengxing Jinqiao Machinery Technology Co., Ltd.
  • Type:Hydraulic Hammer
  • Pressure Pile Driver Type:Hydraulic Pile Driver
  • Pile Hammer Type:Hydraulic Hammer
  • Power Source:Diesel
  • Motor Power:53kw
  • Noise:With Noise

Base Info

  • Model NO.:HXT26D,36DD
  • Certification:CE, ISO 9001:2000
  • Condition:New
  • Warranty:1 Year
  • Drilling Diameter:0-300 mm
  • Hydraulic Hammer Model:Yc260,Yc360
  • Walking Speed(Km/H):20km,H
  • Drilling Depth:1700mm
  • After-Sales Service:Rovided: Video Technical Support, Online Support
  • Front and Rear Adjusting Angle of Frame:+-12
  • Pilling Height:0-3200mm
  • Dimension(L*W*H):5600*2250*2600(Floded)
  • Traveling Speed:>8000 M,H
  • Transport Package:Container
  • Specification:2600*2200*2900
  • Trademark:EVER STAR
  • Origin:China
  • HS Code:8430100000
  • Production Capacity:1000 Pices,1year

Description

Basic Info.

Model NO. HXT26D/36DD Certification CE, ISO 9001:2000 Condition New Warranty 1 Year Drilling Diameter 0-300 mm Hydraulic Hammer Model Yc260/Yc360 Walking Speed(Km/H) 20km/H Drilling Depth 1700mm After-Sales Service Rovided: Video Technical Support, Online Support Front and Rear Adjusting Angle of Frame +-12 Pilling Height 0-3200mm Dimension(L*W*H) 5600*2250*2600(Floded) Traveling Speed >8000 M/H Transport Package Container Specification 2600*2200*2900 Trademark EVER STAR Origin China HS Code 8430100000 Production Capacity 1000 Pices/1year

Product Description

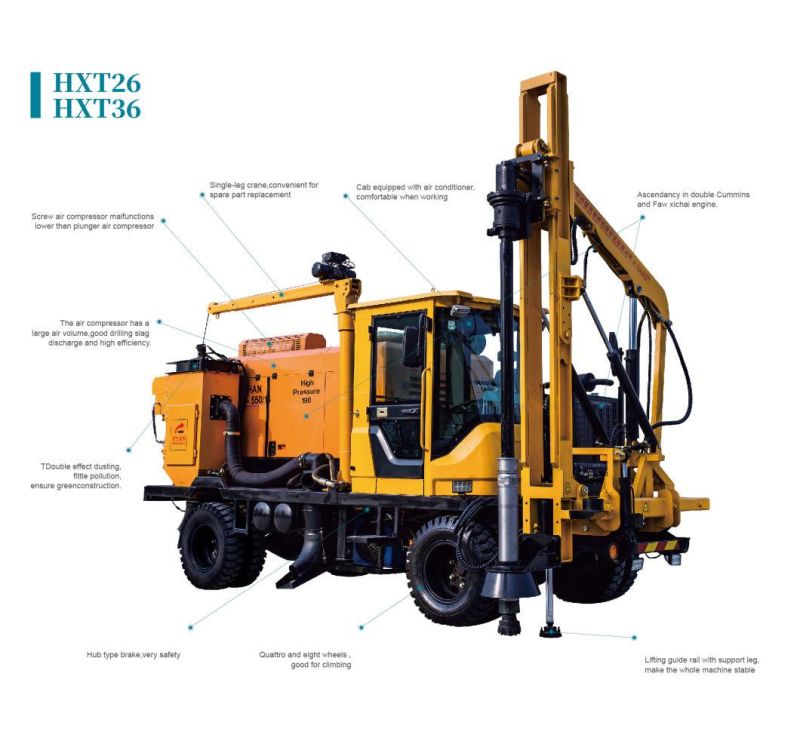

Ramming Machine for Installation of Highway Guardrail Air Compressor to Increase The Strength of Piling


Dimension(L*W*H)5600*2250*2600(floded)mm
Dimension(L*W*H)5600*2650*3970(working)mm
chassis body width2150mm
Vehicle weight7000kg
Tier type7.5-16
Voltage24V
Hydraulic hammer typeYC260/YC360mm
Working flow of hydraulic hammer50-90/50-90l/min
Mpa11-14/12-15Mpa
Shock frequency400-800/400-800Bpa
Working stroke of hydraulic hammer2300mm
Drill rod diameter75/85mm
Hitting force of hydraulic hammer6-8/7-14T
Pile driving efficiency2000/2500mm/min
Walking speed>20km/h
Brake modeFour-wheel type air brake
Drilling engine model Cummins6BTA5.9-C180-2
Drilling engine power132Kw
Driving modeFour-wheel drive
Turning radius3000mm
Power of pile driving engine53Kw
Torque of rotary motor for percussion Drilling
Tools
800-1800Nm
Turning radius6000mm
Drilling depth1700mm
Drilling diameter0-300mm
Inclination of slide guide rackleft30/right10°
Front and rear adjusting angle of frame±12°
Hydraulic system pressure60-100Mpa
Hydraulic system flow63-80L/min
Gear pump flow540-550ml/r
Left and right sliding stroke0-400mm
Pile height range0-3200mm
The max distance between the center of
 the bit and the frame
680mm
The max distance between the center
and the frame of the pile driver
600mm
The max distance between the center of
the pulling out cap and extending of the frame
680mm
Effective capacity of hydraulic tank88L
Effective capacity of diesel tank120L
Air compressor pressure15m^3/min
Climbing ability0.8-1.3Mpa
All models0-25°
Other configurationHXT26-1,-2,-3,-4,-5
HXT36-1,-2,-3,-4,-5

 pilot valve ,air conditioner
Ramming Machine for Installation of Highway Guardrail Air Compressor to Increase The Strength of Piling



Ramming Machine for Installation of Highway Guardrail Air Compressor to Increase The Strength of Piling
 FAQ 1.What is the main function of our pile driver?

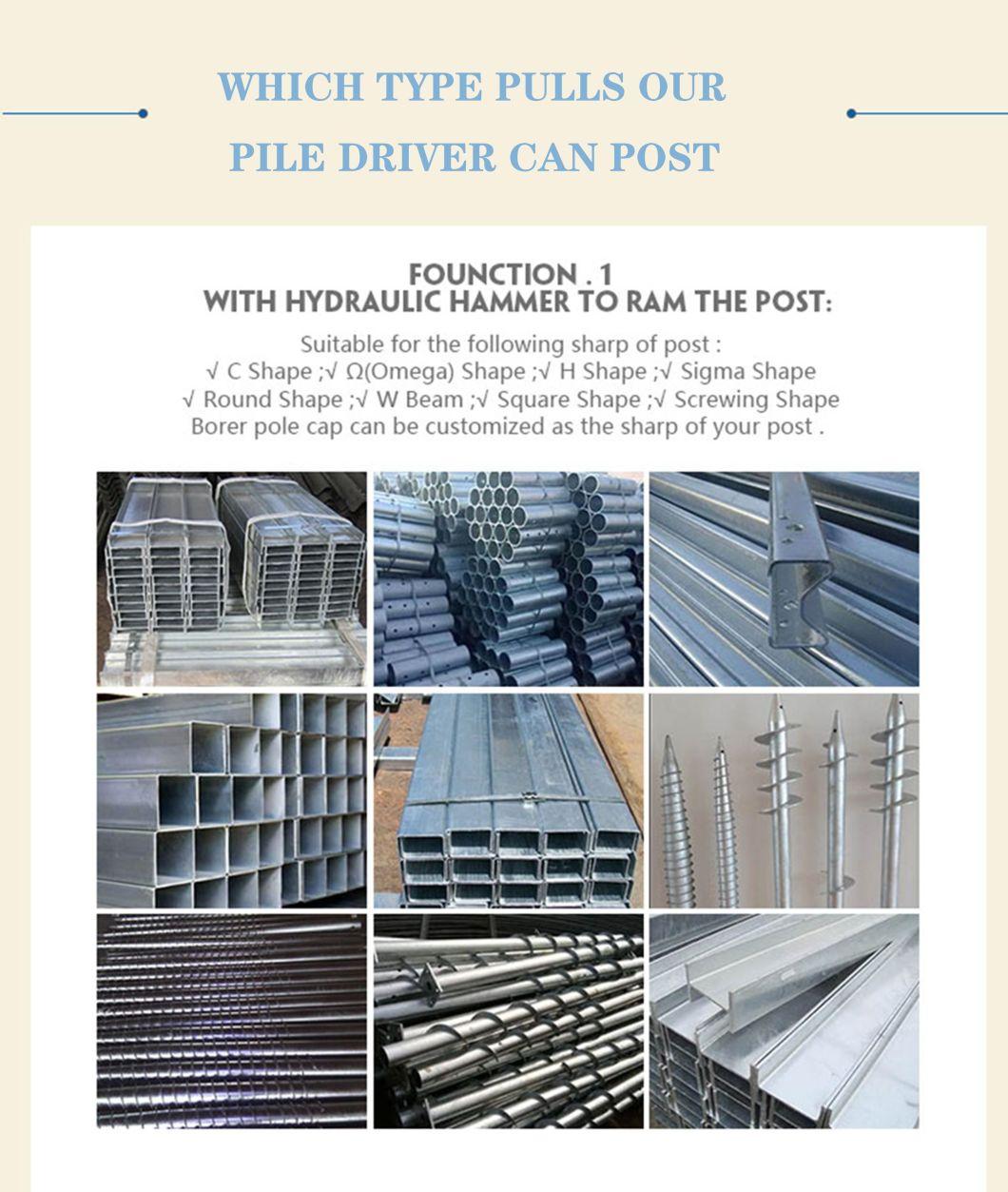

Ans.: It has different models used for all kinds of PV post install, it is the best choice for solar power station construction.
 2.What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer),during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.
 3.What is the lead time and shipping method?
Ans.:Usually the lead time is 3 days, and we send the machine by sea.
 4.What kinds of payment terms do we accept?
Ans.:T/T or L/C at sight...

Ramming Machine for Installation of Highway Guardrail Air Compressor to Increase The Strength of Piling


Ramming Machine for Installation of Highway Guardrail Air Compressor to Increase The Strength of Piling
Ramming Machine for Installation of Highway Guardrail Air Compressor to Increase The Strength of PilingRamming Machine for Installation of Highway Guardrail Air Compressor to Increase The Strength of PilingAbout UsXuzhou Hengxing Jinqiao Machinery Technology Co., Ltd covers an area of more than 50 acres and with factory area about 20000 square meter.We are the professional construction machinery manufacture for rotary drilling rig kelly bar, highway guardrail pile driver and PV post driver, with our own R&D and sales team.

Over the years we keep strengthening our independent research and development ability,meanwhile we actively join the China Construction Machinery Association to learn the latest news of this industrial. Also we continue to strengthen our cooperation relationship with China University of Mining and Technology and pursue of development and innovation of our techniques.

We have passed the international Quality Certification of ISO9001:2008,our engineers are skilled in using AUTO-CAD,PRO-E and UG to design products, for the development of new products, they strictly implement the APQP&PPAP program. We provide customized services and all products meet the ISO9001 standard,also we have filed many patents.

Our main product kelly bar absorbs a number of advanced technology from home and abroad , with special advantages of high wear resistance and high torque, now we are the nominated supplier of kelly bar for rotary drilling rig manufactures from both home and abroad, such as BAUER, SOILMEC, CMV, MAIT, IMT,ZOOMLION,CSR,CHTC JOVE,OSAINT etc., in addition, our kelly bar enjoys a good market among the end-user customers for construction work such as high-speed railway, highway,urban viaduct,light rail,bridge,high-rise buildings and so on. We have enjoyed a good reputation among customers for many years based on our reliable
quality and perfect services.Other products include the multifunctional exchange highway guardrail post driver and the multifunctional hydraulic crawler PV post driver. Now our post driver has been widely used in construction fields such as highwayguardrail install, PV power station install, farm and orchard construction.
we has always followed our survival principle that "strives for the survival by quality, development through reputation", and our service tenet "your demand is our demand". Through continuous technological innovation we try to build our global brand.

With our high quality products, perfect services and good reputation,we are willing to cooperate with customers and create a better future together! Welcome every friend to visit our factory!
