New Construction Equipment 5ton Zl50gn Mini Front End Wheel Loader with Ce
Shanghai Super-Above Industry Holdings Co., Ltd.- Condition：New
- Rated Load：3-8t
Base Info
- Model NO.：ZL50GN wheel loader
- Transmission：Hydraulic - Mechanical Transmission
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Medium-sized Loader
- Dimension(Long * Breadth * High)：7*3*3.4
- Break out Forth：17ton
- Loader Rated Power：162kw,2200rpm
- Loading Hight：3.1m
- Application：Material Loading
- Usage：Universal Type
- Scraper Type：Pull Scraper
- Load and Unload Method：Front Discharge
- Engine Power：>515kw
- Color：Orange
- Wheel Base：2960mm
- Reach at Maximum Lift：1100~1190mm
- Articulation Angle：35degree
- Fuel Tank：250L
- Hydraulic Tank：210L
- Transport Package：Naked in Container
- Specification：CE
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8429510000
- Production Capacity：10000PC,Year
Description
Travel speed1-gear(F/R) km/h 13/18 2-gear(F/R) km/h 40
Characters of wheel loader
I . The loader adopts the single-stage-4-element hydraulic torque converter and the planetary power gearshift transmission box, which can automatically adjust the output torque. The high-speed light-load operating mode can automatically be shifted to low-speed heavy-load operating mode
II . Optimized and improved design of work unit, making the unit lifting capacity , digging force and unloading height as well as total cycle time at or better than the national figures for high-quality product
IV . The hydraulic system of the working unit adopts soft shaft operation with preset operating valve, which is featured with small pressure loss, easy and reliable operation

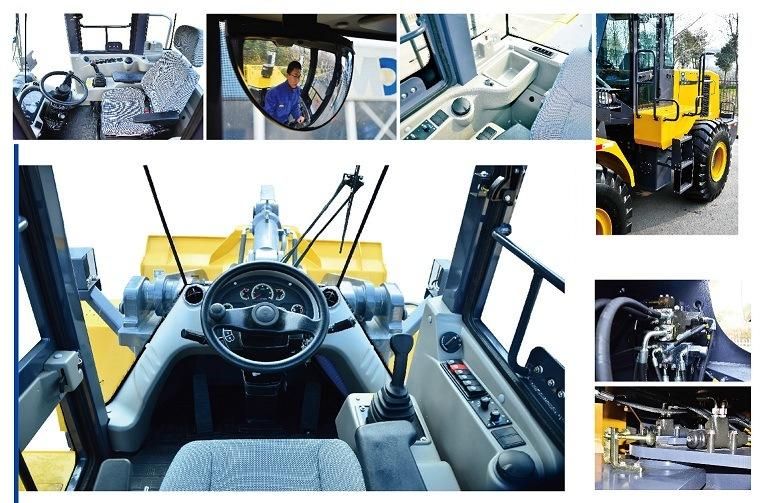

V . Large-vision and fully enclosed driver cab is equipped , with luxury automobile interior decoration, standard heating and ventilation equipment(air conditioner is optional)
VI . Several devices are optional according to the customer and different working condition, such as the joystick . Rops/Fops coal bucket, rock bucket and log grapple
Characters of wheel loader
I . The loader adopts the single-stage-4-element hydraulic torque converter and the planetary power gearshift transmission box, which can automatically adjust the output torque. The high-speed light-load operating mode can automatically be shifted to low-speed heavy-load operating mode
II . Optimized and improved design of work unit, making the unit lifting capacity , digging force and unloading height as well as total cycle time at or better than the national figures for high-quality product
IV . The hydraulic system of the working unit adopts soft shaft operation with preset operating valve, which is featured with small pressure loss, easy and reliable operation
V . Large-vision and fully enclosed driver cab is equipped , with luxury automobile interior decoration, standard heating and ventilation equipment(air conditioner is optional)
VI . Several devices are optional according to the customer and different working condition, such as the joystick . Rops/Fops coal bucket, rock bucket and log grapple
