High Intelligence Zoomlion 180m3/H Hzs180p Concrete Batching Plant

Acntruck Automobile Sales (Shanghai) Co., Ltd.

Type：Concrete Mixing Plant
Productivity：180m²,h
Condition：New
Theoretical Output Capacity (M3/H)：180
Discharge Height (M)：4m
Mixer：Js3000

Base Info

Model NO.：HZS180P
Theoretical Production Periods (S)：60
Aggregate Storage (M3)：4*20
Transport Package：Bulk
Origin：China
HS Code：8427209000
Production Capacity：1000,PCS

Description

ModelHZS180PTheoretical Output Capacity (m³/h)180Discharge Height (m)≥4MixerJS3000Theoretical Production Periods (s)60Aggregate Storage (m³)4×20Max. Weighing Value of Slant Belt Conveyor (kg)600The Conveying Capacity of Screw Conveyor (t/h)90Total Installed Power (kW) for Reference205Max. Batching Value and Accuracy of Aggregate (kg)3600±2%Max. Batching Value and Accuracy of Cement (kg)1500±1%Max.Batching Value and Accuracy of Powder Admixtures (kg)600±1%Max. Batching Value and Accuracy of Water (kg)700±1%Max. Batching Value and Accuracy of Liquid Additive (kg)60±1%

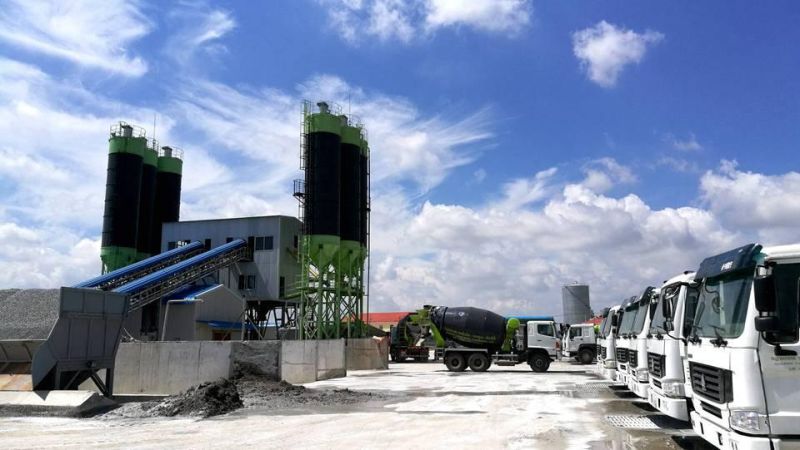

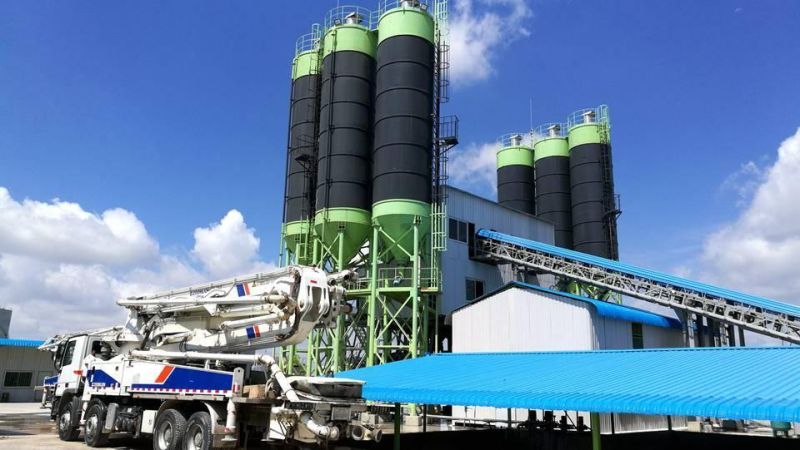

3.Case picture:

High Intelligence Zoomlion 180m3/H Hzs180p Concrete Batching Plant
