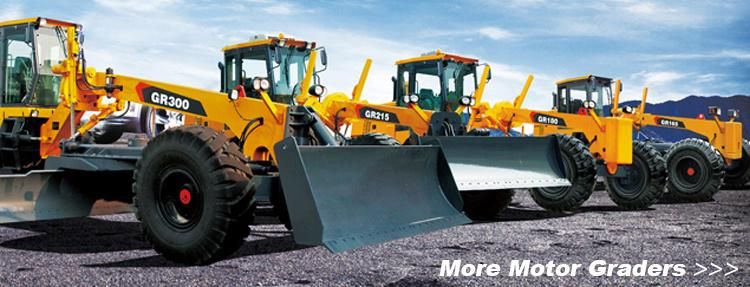

• Model NO.：Motor Grader
• Transmission：Hydraulic - Mechanical
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Operating Weigh：16500kg
• Moldboard：4270X610mm
• Engine Model：6ctaa8.3 6CTA8.3
• Rated Power/Speed：153kw,2200rpm 160kw,2200rpm
• Travelling Speed ,Forward：5, 8, 11, 19, 23, 38 Km,H
• Travelling Speed ,Reverse：5, 11, 23 Km,H
• Max. Gradeability：20%
• Working Hydraulic Pressure：16MPa
• Transmission Pressure：1.3~1.8MPa
• Tractive Force：41.6kn
• Maximum Lift Above Ground：450mm
• Blade Cutting Angle：28-70degree
• Dimension(Lxwxh)：8970X2625X3470mm
• Keyword：Motor Grader
• Transport Package：Naked
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8429209000
• Production Capacity：10000PCS,Year

Basic specificationEngine model6CTAA8.3 6CTA8.3Rated power/speed  153kW/2200rpm  160kW/2200rpmDimension(LxWxH)8970×2625×3470mmOperating weight(Standard)16500kgPerformance specificationTravelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)82KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPaOperating specificationMax. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height4270×610mm
