• Model NO.：JC60
• Type：Small Loader
• Engine：Xinchai
• Engine Power：45kw
• Rated Operating Capacity：850kg
• Tipping Load：1700kg
• Bucket Capacity：0.5 Cubic Meter
• Hydraulic Pump Flow：75L,Mini
• Weight：3240kg
• Max Travel Speed：12km,H
• Grade Ability：20
• Tire：12-16.5
• Fuel/Hydra Oil Capacity：80,80L
• Total：2160mm
• Lenght with Bucket：2160mm
• Lenght Without Bucket：2750mm
• Width with Bucket：1880mm
• Transport Package：Nude in Contaienr
• Specification：60hp
• Trademark：SUNYO
• Origin：Linyi, China
• HS Code：8429510000
• Production Capacity：8000 Per Year

Basic Info.

Model NO. JC60 Type Small Loader Engine Xinchai Engine Power 45kw Rated Operating Capacity 850kg Tipping Load 1700kg Bucket Capacity 0.5 Cubic Meter Hydraulic Pump Flow 75L/Mini Weight 3240kg Max Travel Speed 12km/H Grade Ability 20 Tire 12-16.5 Fuel/Hydra Oil Capacity 80/80L Total 2160mm Lenght with Bucket 2160mm Lenght Without Bucket 2750mm Width with Bucket 1880mm Transport Package Nude in Contaienr Specification 60hp Trademark SUNYO Origin Linyi, China HS Code 8429510000 Production Capacity 8000 Per Year

Product Description

SUNYO / Chinese High Quality/  JC60 Skid Steer Loaer  with Famous Brand Engine and Hydraulic parts . Widely used, flexible operation

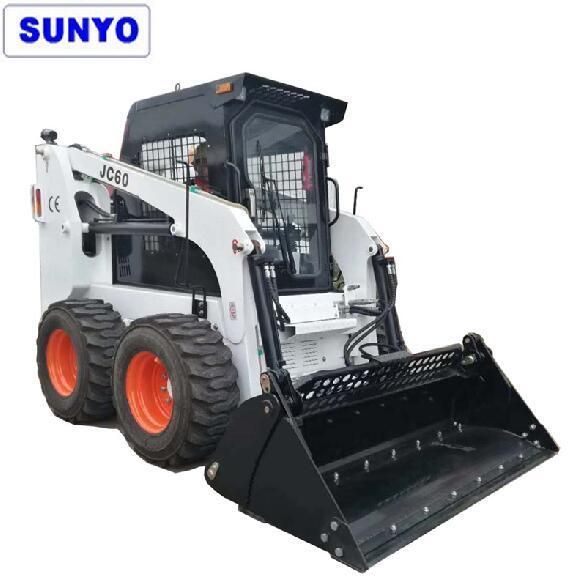

JC60G skid steer loader

• Chinese xinchai diesel engine model A498BPG
• American Sauer /Eaton brand hydraulic pump
• American Eaton brand hydraulic motor
• Open cabin with mechanical control system
• Standard bucket
• Double accelerograph control
• Hydraulic brake
• Standard bucket

 JC60 Skid Steer Loader Specifications:

Item	Description	Item	description
Rated operating capacity(kg)	850	Hinge pin height (mm)	3100
Tipping load (kg)	1700	Total height (mm)	2160
Bucket capacity(m3)	0.5	Length with bucket (mm)	3490
Hydraulic pump flow (L/min)	75	Length without bucket(mm)	2750
Engine power (kw)	45	Width with bucket (mm)	1880
Weight(kg)	3240	Track width (mm)	1500
Max travel speed (km/h)	12	Wheelbase (mm)	991
Grade ability	20	Ground clearance (mm)	205
Tire	12-16.5	Dumping angle	40
Fuel/hyd oil capacity (L)	80/80	Dumping height (mm)	2400
Height at maximum extension	4000	Maximum reach (mm)	750

Skid Steer Loader: Skid-steer loaders are four-wheeled or tracked vehicles with the wheels mechanically locked in synchronization on each side, and where the left-side drive wheels can be driven independently of the right-side drive wheels. The wheels typically have no separate steering mechanism and hold a fixed straight alignment on the body of the machine. Turning is accomplished by differential steering, in which the left and right wheel pairs are operated at different speeds, and the machine turns by skidding or dragging its fixed-orientation wheels across the ground.

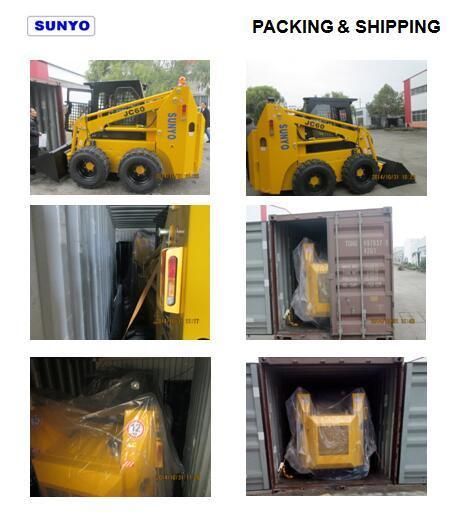

Packing & Shipping:

We have been engaged in foreign trade for more than 18 years and have very rich experience in shipping. According to the past situation, each of our products is complete and delivered to customers as planned.
Generally, For the JC60 skid steer loader , one 40H container can load 4 sets, one 20 container can load 2 sets.  it also can load in the bulk ship, or Ro-on/Ro-off ship. it according your requirements

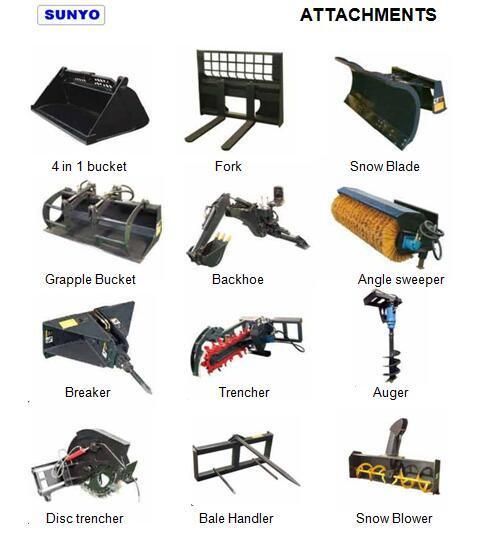

 Attachments:
Our skid steer loader can be with some more attachements excapt the standard bucket. for exmple the 4 in 1 bucket, Quick Change, Fork, Auger, Hamer, Grass Grab, Wooden Fork, Snow blade, sweaper, Rops And so on.
Our Service :
Pre-sale service:
To our customers, before you buy the equipments, we hope to understand your needs, according to your machine requirements and your budget; choose the right model for you, to ensure that you buy high-quality products at a lower price.
At the same time, you are welcome to visit our factory in LINYI, China; we will book hotels, air tickets and take you up from air port.


After-sale service:
After the sale, we will properly arrange the transportation of the machine to ensure that the goods are safely delivered to your hands.
At the same time, we will provide you with technical support 24 hours a day, or send engineers to guide the installation and operation. If there are any quality problems with the machine, we will solve it for you in the first time.

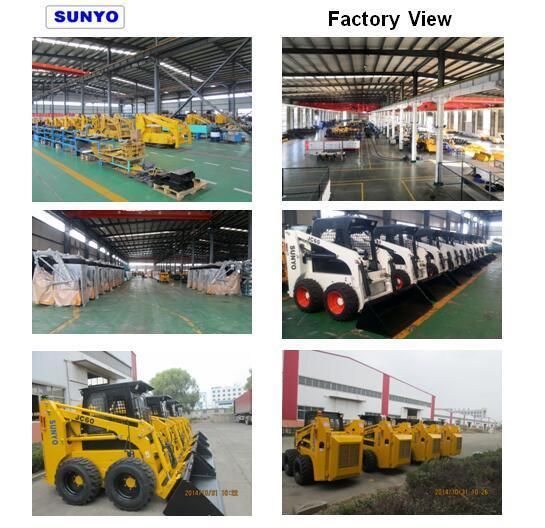

Factory View:

Here show some factory pictures to help you understand our company.


Exhibition:
Here show you some exhibition pictures .


Certificate :



FAQ:
Q1: Which country do you export to?
Asia: Pakistan, Philippines, Thailand, Myanmar, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc.
Middle East: Iran, UAE, Jordan, Oman, Saudi Arabia, Syria, etc.
Europe: Poland, Russia, Ukraine, Belarus, Bulgaria, etc.
Africa: South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America: Paraguay, Colombia, Brazil, Peru, Chile, Cuba, Venezuela, etc.
Oceania: Australia, etc.

Q2: What is the proportion of your products export?
90% of our products are exported to all over the world.

Q3: What is the payment term?
We can discuss with you. Consider for long-term customers we are favorable payment terms TT, L/C, west union. It depends on the cooperation time, country and contract value.

Q4: What kind of logistic service do you supply?
FOB, CIF, C&F

Q5: What spare parts can you supply?
All kinds of spare parts of SUNYO JCM, SDLG, SHACMAN,  SHANTUI, YTO,  etc.
