Engineering & Construction Machinery

Rubber Track 400*72.5*76W for Hyundai R55-3/7/9 R60cr-9

Shanghai Puyi Industrial Co., Ltd.
  • After-sales Service:Online Support
  • Warranty:One Year Under Normal Use
  • Type:Crawler
  • Application:Excavator
  • Certification:ISO9001: 2000
  • Condition:New

Base Info

  • Material:Rubber and Steel,Fiber
  • Width:400mm
  • Pitch Length:72.5mm
  • Links:76
  • Weight:266.76kg
  • Transport Package:Kraft Paper, Wooden Case, Pallet
  • Specification:400*72.5*76W
  • Trademark:No Marks or As Buyers′ Requests
  • Origin:Shanghai, China
  • HS Code:8431499900
  • Production Capacity:3000pieces Per Month

Description

Basic Info.

Material Rubber and Steel,Fiber Width 400mm Pitch Length 72.5mm Links 76 Weight 266.76kg Transport Package Kraft Paper, Wooden Case, Pallet Specification 400*72.5*76W Trademark No Marks or As Buyers′ Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 3000pieces Per Month

Product Description

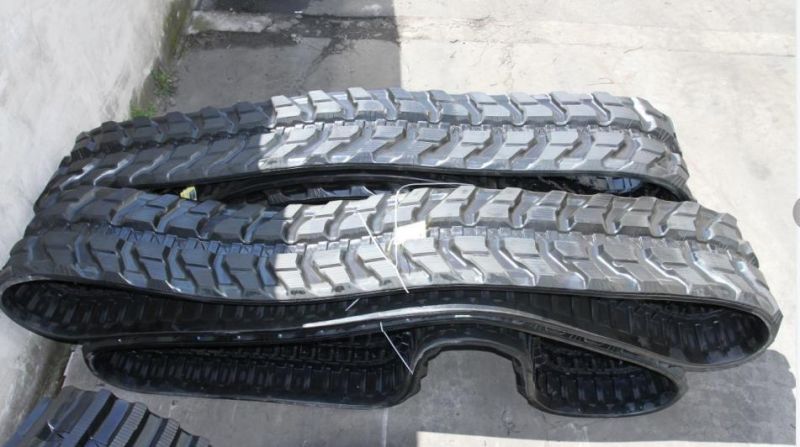

Rubber Track 400*72.5*76W for HYUNDAI R55-3/7/9 R60CR-9
Rubber Track 400*72.5*76W for Hyundai R55-3/7/9 R60cr-9
Commodity Name: RUBBER TRACK
Links: 76
Pitch Length: 72.5mm
Width: 400mm
Total Length: 5510mm
Weight: 266.76kg



Specifications
1).Less damage to the ground surface
2).Low noise
3).High running speed
4).Less vibration;
5).Low ground contact

We are a professional supplier for rubber track. They could be used on Wheelchair,Agriculture machine such as Rice harvester, Wheat harvester,Combine harvester machine; Construction machine like Excavator, Mini-excavator, Bulldozer, Dumper, Crawler loader, Crawler crane, Carrier vehicle,Swamp Truck, Amphibious Tank,Paver.Othe vehicle like Snowblower,Snowmobile,Off-road jeep, Crawler Robot etc.
1. Type of rubber tracks:
(1) Bolt on type
(2) Bolt on type with steel bottom
(3) Chain on type
(4) Clip on type
(5) Pavers rubber pads

2. The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, a major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the same weight.

More Parameters:
ModelSizeWeight(kg)/LinkModelSizeWeight(kg)/LinkModelSizeWeight(kg)/Link
HS-3232*12.70.0031QD-118118*600.122YT-200200*52.50.3935
BK-B40*9.30.0084SJ-120120*610.1477SQ-A220*53.50.2062
HL-4040*440.0268RN-120120*600.125JH-220220*850.9
PY-4045*31.750.0172WG-123123*380.0703JA-220220*50.30.4
DG-5050*22.2250.03GF-A125*190.0243DY-250250*50.30.3507
GF-B50*190.0093DN-A130*18.50.0289LP-250250*50.30.523
GMD-B50*200.0109WJ-130130*400.1088CQ-255255*720.4758
HGD-5252*580.0474TH-136136*450.0868FP-250250*800.4897
XL-6060*13.90.59WGJ-130130*650.4348WD-255255*730.4549
LWM-6060*22.2250.023HBC-140140*300.0334SQ-B255*720.45
JQ-B60*12.70.0182SL-140140*800.2778CF-280280*601.9
BF-B60*150.0073JT-140140*200.0332LEVE-280280*870.4839
BK-A60*13.010.0178PW-148148*600.2804KD-320320*872.1607
DN-B60*18.50.0088ZY-148148*600.4445QATV-320320*870.4688
JT-6060*200.0125XF-A150*590.2051WD-320320*72
JQ-A76*12.70.0158NG-150150*650.3095TG-320320*870.9412
BF-A80*150.0112SF-150150*720.3781TJ-360A360*870.8285
HL-8080*440.055XF-B150*590.2178NY-380380*650.7854
SMX-7070*400.0636LEVE-160160*600.8065YQZG-400400*73
CHJ-8080*40.20.0817YSD-165165*64.50.3612QATV-400400*871.25
TH-8585*59.40.08WJ-165165*65.50.2989TK-560560*1053
GMD-A100*200.0242WHKD-170170*640.2419DNS-580580*60.50.675
BD-B100*400.0454LEVE-180180*650.3571XLG-620620*100
BD-A100*400.08YN-180180*720.4729BV206620*90.63.125
HL-105105*420.0572HC-200200*60.20.3WZY-800800*90.6
CX-118118*610.1625HS-200200*720.75KCM-500500*1102.9836
