Mini Hydraulic Side Unload 2WD Dumper 1 Ton with Diesel Engine

XUZHOU BOB-LIFT CONSTRUCTION MACHINERY CO., LTD.
  • Warranty：1year
  • Certification：ISO, CE
  • Condition：New
  • Rated Load：1 Ton
  • Transmission：Hydraulic - Mechanical
  • Load and Unload Mode：Front Discharge

Base Info

  • Model NO.：FC10
  • Walking Mode：Wheeled
  • Type：Small Loader
  • Product Name：Dumper
  • Color：Customer Requirements
  • Drive Type：Left Hand Drive
  • Cab：Air Conditioner
  • Bucket Volume：0.5m3
  • Discharge Height：150mm
  • Maximum Gradient：21%
  • Minimum Turning Radius：4000mm
  • Overall Dimension：2620*1600*1480mm
  • Net Weight：1000kg
  • Transport Package：Wooden Packing
  • Specification：2620*1600*1480(mm)
  • Trademark：BOB-LIFT, Accept OEM
  • Origin：Xuzhou, Jiangsu
  • HS Code：8428909090
  • Production Capacity：100 Sets,Month

Description

FC10 DumperRated load(kg)1000Bucket volume(m3)0.5Discharge height(mm)150Maximum gradient(%)21Buck width(mm)1480Traveling speed(II forward 1gear)(Km/h)9Traveling speed(III forward 3gear)(Km/h)22Traveling speed(reward gear)(Km/h)4.8Minimum turning radius(mm)4000Overall dimension(mm)2620*1600*1480Wheel base(mm)1500Thread(mm)1230Mini ground clearance(mm)200Net weight(kg)1000Engine modelZS1100Engine Rated power(kw)12.1Engine Rated power(r/min)2200Tipping modelmachanicalElectic startingYes

[Product Photos]

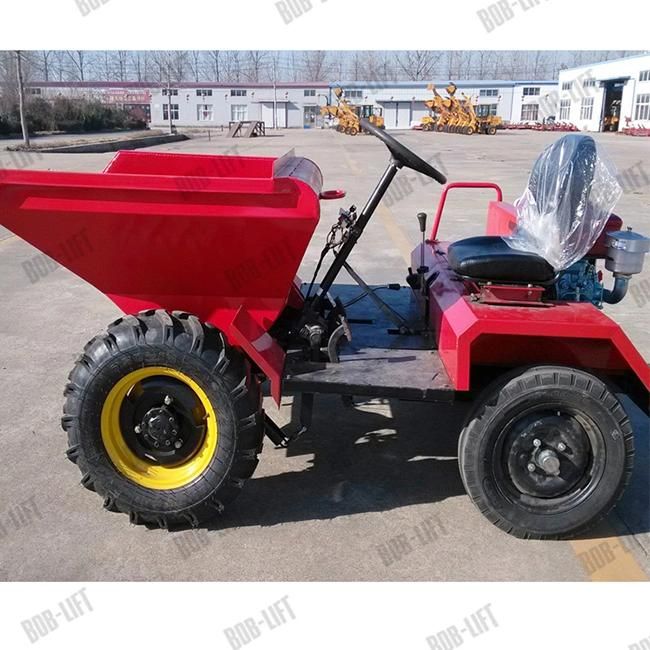

Mini Hydraulic Side Unload 2WD Dumper 1 Ton with Diesel Engine

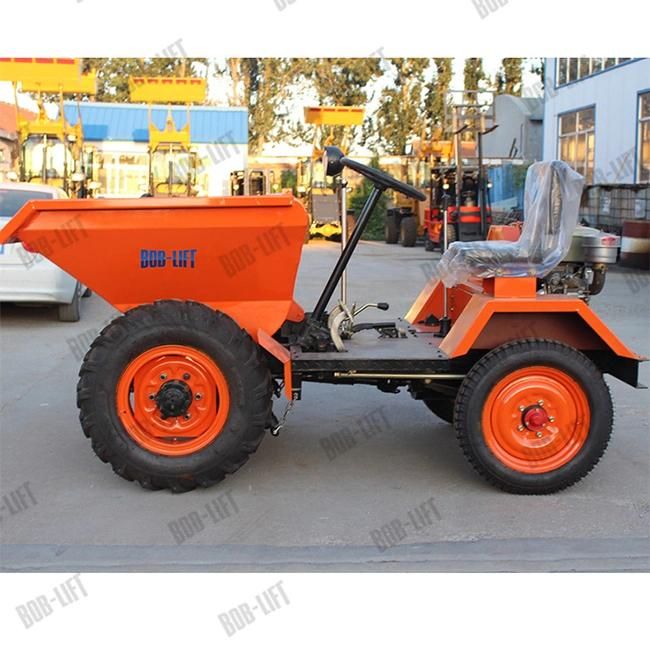

Mini Hydraulic Side Unload 2WD Dumper 1 Ton with Diesel Engine

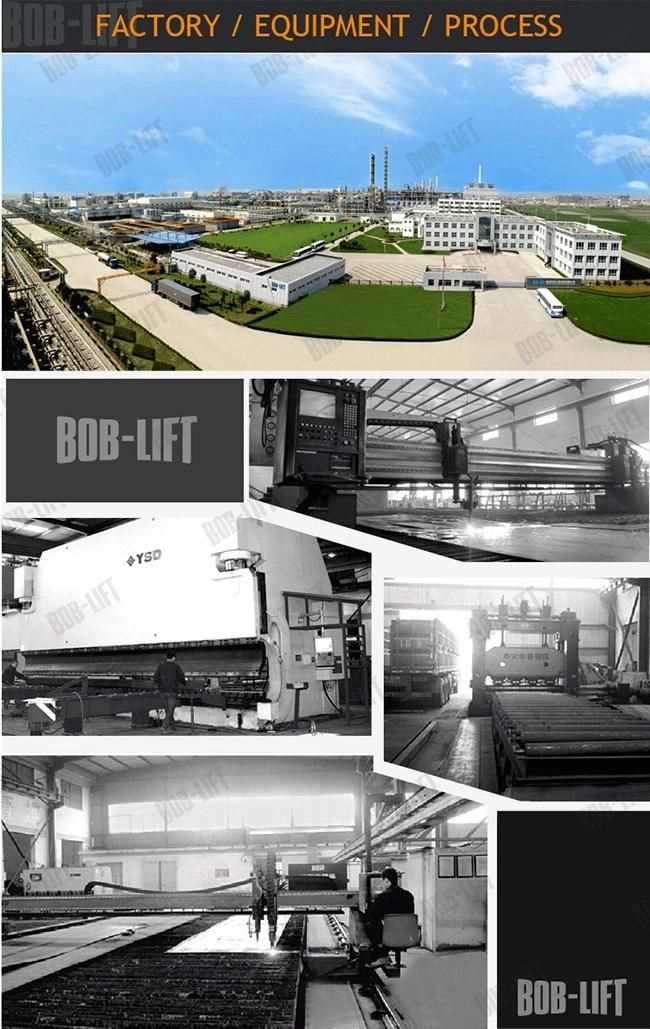

[Company Information]
Mini Hydraulic Side Unload 2WD Dumper 1 Ton with Diesel Engine
[Packing]
Mini Hydraulic Side Unload 2WD Dumper 1 Ton with Diesel Engine
[Certification]
Mini Hydraulic Side Unload 2WD Dumper 1 Ton with Diesel Engine
