• Model NO.：250X48.5KX84
• Link：84
• Name：Rubber Track
• for Machine：Yanmar Excavator
• Transport Package：Pallet or Bare Package
• Specification：250*48.5K*84
• Trademark：according to buyers
• Origin：Shanghai China
• HS Code：8431499900
• Production Capacity：3000PC,Month

Basic Info.

Model NO. 250X48.5KX84 Link 84 Name Rubber Track for Machine Yanmar Excavator Transport Package Pallet or Bare Package Specification 250*48.5K*84 Trademark according to buyers Origin Shanghai China HS Code 8431499900 Production Capacity 3000PC/Month

Product Description

Characteristics

1). Rubber track with Less damage to the ground surface
2). Low noise
3). High running speed
4). Less vibration
5). Low ground contack specific pressure
6). High tractive force
7). Light weight
8). Anti-vibration


Extreme Durability & Performance

Our joint free track structure, Special designed tread pattern, 100% virgin rubber,and one piece forging insert steel result extreme durability & performance and longer service life for construction equipment use. Our tracks perform a high level of reliability and quality with our latest technology in mold tooling and rubber formulation.

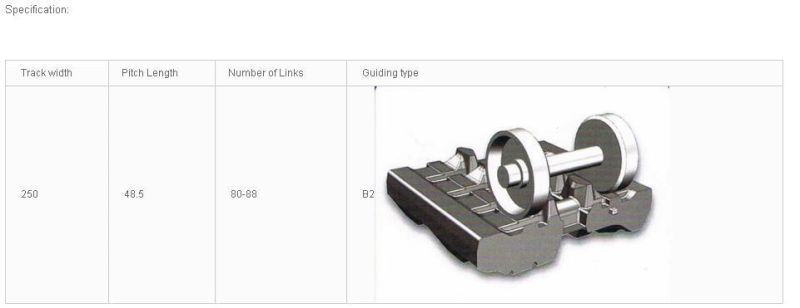

Specification & application:

Specifications for Excavator Rubber Tracks

size width*pitch	links	size width*pitch	links	size width*pitch	links
130*72	29-40	250*109	35-38	B350*55K	70-88
150*60	32-40	260*52.5	74-80	350*56	80-86
150*72	29-40	260*55.5K	74-80	350*72.5KM	62-76
170*60	30-40	Y260*96	38-41	350*73	64-78
180*60	30-40	V265*72	34-60	350*75.5K	74
180*72	31-43	260*109	35-39	350*108	40-46
180*72K	32-48	E280*52.5K	70-88	350*109	41-44
180*72KM	30-46	280*72	45-64	Y320*107K	39-41
180*72YM	30-46	V280*72		400*72.5N	70-80
B180*72	31-43	Y280*106K	35-42	400*72.5W	68-92
H180*72	30-50	300*52.5N	72-98	Y400*72.5K	72-74
T180*72		300*52.5W	72-92	KB400*72.5K	68-76
V180*72K	30-50	300*52.5K	70-88	400*72.5KW	68-92
190*60	30-40	300*52.5KW	72-92	400*73	64-78
190*72	31-41	E300*52.5K	70-88	400*74	68-76
200*72	34-47	KB300*52.5	72-92	400*75.5K	74
200*72K	37-47	KB300*52.5N	72-98	Y400*107K	46
Y200*72	40-52	JD300*52.5N	72-98	400*78
230*48	60-84	300*53K	80-96	K400*142	36-37
230*48A	60-84	300*55	70-88	400*144	36-41
230*48K	60-84	300*55YM	70-88	Y400*144K	46-41
230*72	42-56	300*55.5K	76-82	450*71	76-88
B230*72K	34-60	300*71K	72-76	DW450*71	76-88
230*72K	42-56	300*72	36-40	450*73.5	76-84
V230*72K	42-56	BA300*72	36-46	450*76	80-84
W230*72		300*109N	35-42	450*81N	72-80
230*96	30-48	300*109W	35-44	450*81W	72-78
230*101	30-36	K300*109	37-41	KB450*81.5	72-80
250*47K	84	300*109WK	35-42	K450*83.5	72-74
250*48.5K	80-88	320*52.5	72-98	Y450*83.5K	72-74
250*52.5	72-78	320*54	70-84	K450*163	38
250*52.5N	72-78	B320*55K	70-88	485*92W	74
250*52.5K	72-78	Y320*106K	39-43	K500*71	72-76
250*72	47-57	350*52.5	70-92	500*92	72-84
B250*72	34-60	E350*52.5K	70-88	500*92W	78-84
B250*72B	34-60	350*54.5K	80-86	K500*146	35
250*96	35-38

How to confirm a replacement rubber track size:

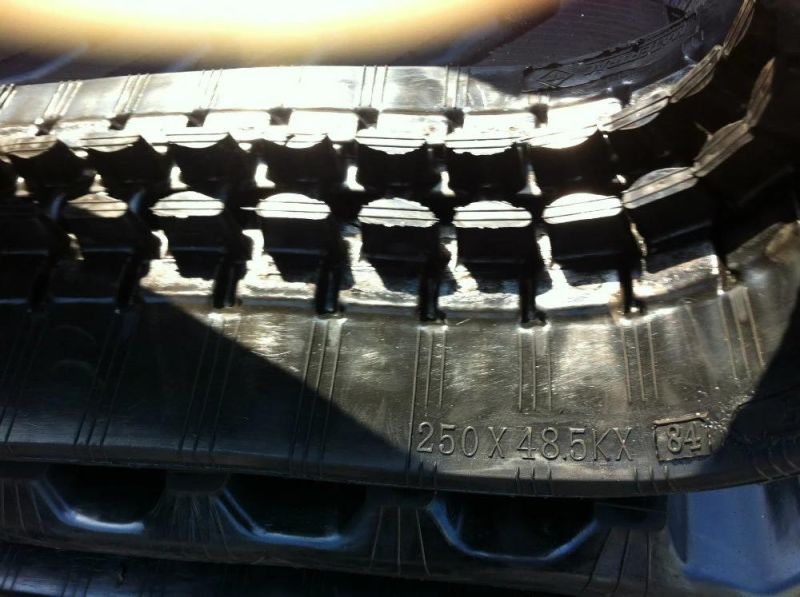

First try to see if the size is stamped along the inside of the track.
If you can't find the rubber track size stamped on the track, Pls inform the blow information to us:

1. The make, model, and year of the vehicle

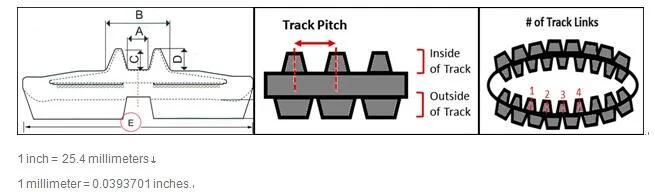

2. The Rubber Track Size = Width(E) x Pitch x Number of Links (described below)

Product Warranty

All our rubber tracks are made with a serial Number, we may trace the product date against the serial Number.



It's normally 1 year factory warranty from production date, or 1200 working hours.
