• Model NO.：BY800
• Condition：New
• Dimension：2170X900X1650mm
• Warranty：6months
• Rated Load：800kgs
• Front Sholve：High Tip
• Hydralic Piston Pump：Hydro-Gear
• Color：Yellow Red Sliver Black
• Package：Plywood Case
• After-Sales Service Provided：Overseas Service Center Available
• Transport Package：Plywood Case or Cartoon
• Specification：CE
• Origin：Jiangsu, China
• HS Code：84289090
• Production Capacity：500unit,Month

Basic Info.

Model NO. BY800 Condition New Dimension 2170X900X1650mm Warranty 6months Rated Load 800kgs Front Sholve High Tip Hydralic Piston Pump Hydro-Gear Color Yellow Red Sliver Black Package Plywood Case After-Sales Service Provided Overseas Service Center Available Transport Package Plywood Case or Cartoon Specification CE Origin Jiangsu, China HS Code 84289090 Production Capacity 500unit/Month

Product Description

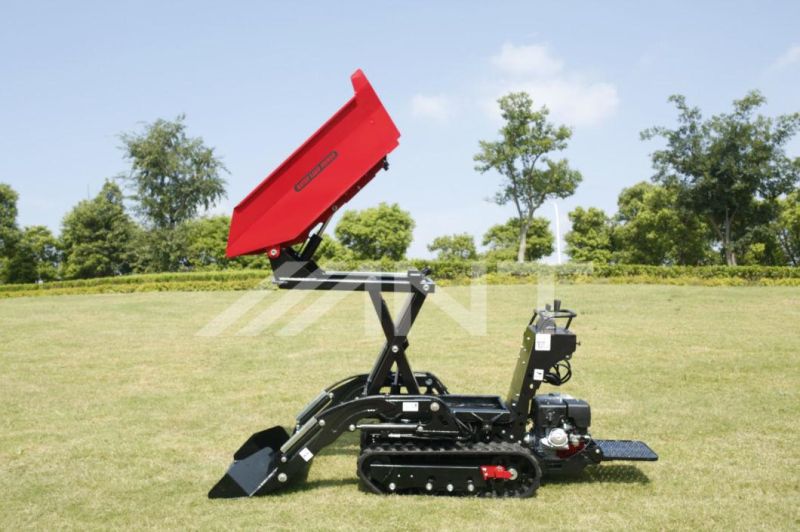

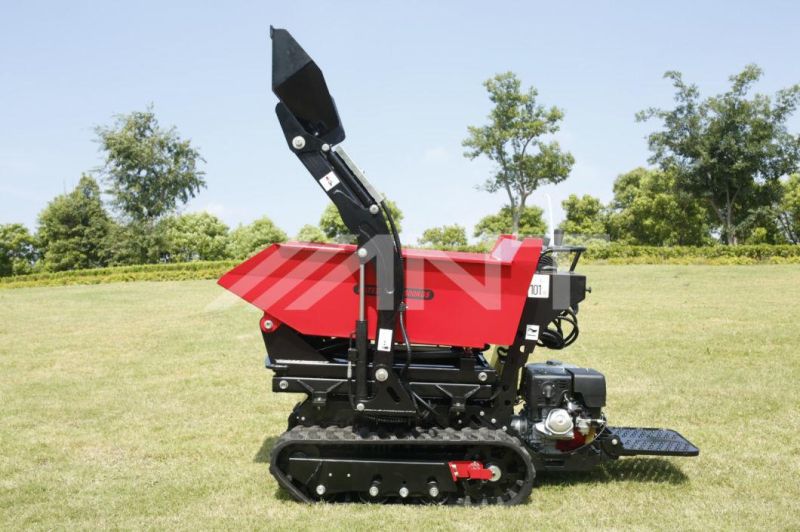

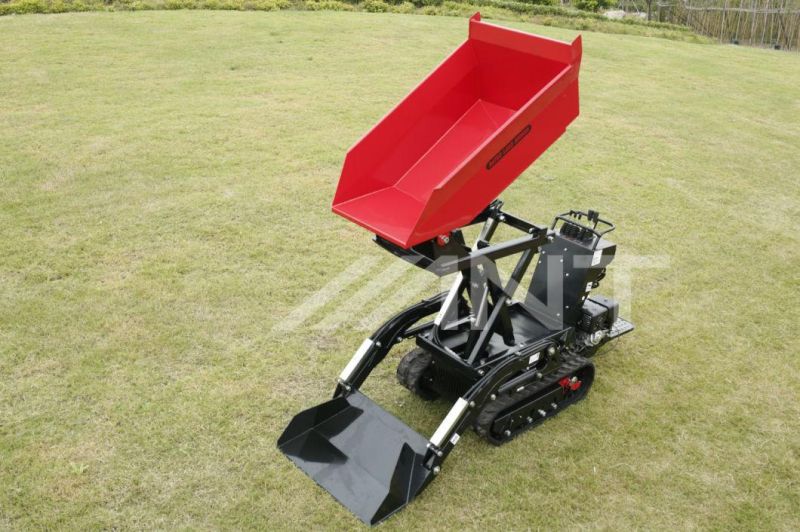

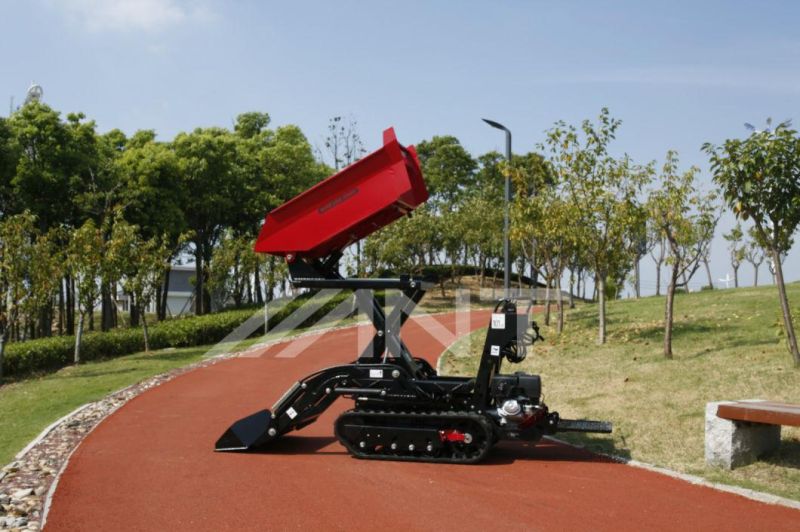

BY800 farming tractor agricultural machine mini crawler tractor

Specifications

*Maximum loading weight is 800kgs.
*Easy and comfortable operation due to the intuitive controls.
*Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.
*Lifting height reaches to 1.4m by X-support.
*Easy climbing and stable crossing the obstacles.
*Spot turning, mini slipping.


Model	BY800
Engine	Honda GX390 13HP gasoline/B&S/Kama Diesel
Type	Hydra-static
Operative weight       kgs(lbs)	800 (1762)
Max travel speed       km/h(mph)	0-4.8(0-3.0)
Transmission
Hydraulic pump	2 x variable displ.
Flow                 Vmin(gpm)	2 x 32.4 (2 x 8.5)
Hydraulic motors	2 x orbital
Brake parking	Mechanical
Hydraulic system
Hydraulic pump	Piston pump
Flow                 Vmin(gpm)	1 x 13.5 (1 x 3.5)
Hi-flow               Vmin(gpm)	1 x 22 (1 x 3.5)
Max pressure           bar(psi)	150 (2180)
Main valve	2-3 way
Cooled system	air-cooled
Skip tipping system	Hydraulic
Tracks
Standard track width     mm(in)	180 (7.1)
Track roller	3
Rocking rollers	Yes
Track tensioning	Yes
