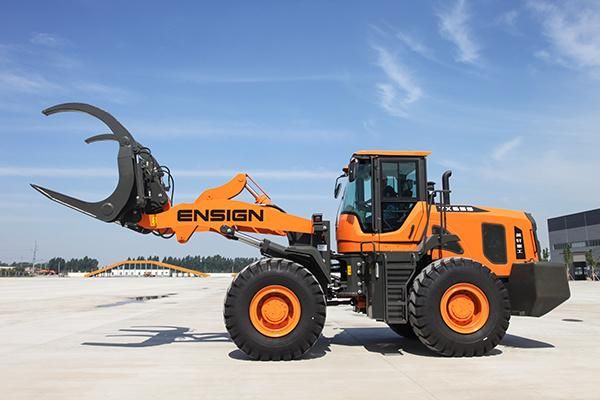

Ensign New 5 Ton Front Wheel Loader for Sale

Ensign Heavy Industries Co., Ltd.
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Transmission：Power Transmission
  • Walking Mode：Wheeled
  • Type：Medium-Sized Loader
  • Usage：Universal Type

Base Info

  • Model NO.：YX655
  • Scraper Type：Tractor-Scraper
  • Load and Unload Method：Front Discharge
  • Engine Power：147~515kw
  • Color：Orange
  • Transport Package：1 Unit in 1*40hq
  • Specification：CE,SGS,EAC,ISO
  • Trademark：ENSIGN
  • Origin：Shandong Province, China
  • HS Code：84295100
  • Production Capacity：20000 Pieces,Year

Description

Bucket capacity2.4~4.5(standard bucket 3.0m3)Total cycle time(lift, dump& lower)≤10.2sRated load5000kgDump height/Dump angle3220/51mm/ °Overall operating weight16800kgDump distance/Dump angle1210/51mm/ °Max. traction force≥160kNMin. ground clearance534mmMax. breakout force≥170kNWheel base2920mmGrade ability30°Wheel tread2190mmMin. turning radius(outer side of the bucket)6900mmDeparture angle30°Min. turning radius(outer side of the tire)
 6150mmSteering angle(left & right)35°Specifications:
1.0 Engine Details
  (1) Model:Weichai  WD10G220E23 Engine
  (2) Engine Type:In-line arrangement,water-cooled,four-cycle diesel engine
  (3) Rated Power:162KW
  (4) Rated Speed:2000 r/min(rpm)
  (4) Fuel Consumption ration in
    Standard working condition:		215g/kw.H

2.0 Transmission System
  (1) Type:Planetary power shift
  (2) Torque converter type:Double turbine, 4 elements
  (3) Gears:2 forward, 1 reverse

3.0 Braking System
 (1) Service brake:Air-over-oil caliper disc
 (2) Parking brake:flexible shaft caliper disc

4.0 Steering system
(1) Type:Load sensing hydraulic
(2) Oil pump type:gear pump

5.0 Working device hydraulic system
(1) Hydraulic system pressure:18 Mpa
(2) Control type:Mechanical
(3) Oil pump type:Gear pump

6.0 Tire
(1) Specification:23.5-25
(2) Tread pattern:L-3

7.0 Bucket
  (1) Bucket capacity:3.0 m3
  (2) Bucket type:Heavy-duty bolt on teeth
  (3) Rated Load:5000kg

Optional Configurations:
 Quick Hitch
  Joystick
  A/C
  Third function valve
  Longer arm
  Rops/Fops
  Tyre Chain
Optional Attachments:
 Rock Bucket
 Pallet/Grass Fork
 Grapple Forks/Wooden Forks
 Grapple Bucket
 Snow Bucket
 New Wooden Forks
 Hydraulic Snow Blade
 Sweeper
 Snow Blower
  4 In 1 Bucket
Ensign New 5 Ton Front Wheel Loader for Sale
 We Are The Factory!
We Only Produce The High Quality Wheel Loader!
Ensign New 5 Ton Front Wheel Loader for Sale
Ensign New 5 Ton Front Wheel Loader for Sale

The information above just for you referrence ,if you want to know more about our products and have questions about them ,please contact me 24h freely ,I am delighted to serve you . Moreover , welcome to visit our website@ensign.en.made-in-china.com and our factory in china.
