• Model NO.：M910
• Type：Small Loader
• Engine：Diesel Perkins,Yanmar,Chinese
• Rated Power：30HP, 40HP, 50HP, 60HP, 70HP, 80HP
• Rated Loading Capacity：1ton, 1.5ton, 2 Ton, 2.5ton, 3 Ton
• Weight：2000kg, 3000kg, 3500kg, 5000kg
• Max. Lifting Height：3000mm, 4000mm, 5000mm, 6000mm
• Max. Hydraulic Output：67L,Min, 82L,Min
• Attachments Available：Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe...
• Similar Brand：Avant, Multione, Weidemann, Giant
• Size：Compact Small
• Loader Usage：Farming, Construction, Gardening, Landscaping
• Transport Package：Container
• Specification：1200kg load capacity, 3000mm lifting height
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8429510000
• Production Capacity：800 Sets,Year

Basic Info.

Model NO. M910 Type Small Loader Engine Diesel Perkins/Yanmar/Chinese Rated Power 30HP, 40HP, 50HP, 60HP, 70HP, 80HP Rated Loading Capacity 1ton, 1.5ton, 2 Ton, 2.5ton, 3 Ton Weight 2000kg, 3000kg, 3500kg, 5000kg Max. Lifting Height 3000mm, 4000mm, 5000mm, 6000mm Max. Hydraulic Output 67L/Min, 82L/Min Attachments Available Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe... Similar Brand Avant, Multione, Weidemann, Giant Size Compact Small Loader Usage Farming, Construction, Gardening, Landscaping Transport Package Container Specification 1200kg load capacity, 3000mm lifting height Trademark STEEL CAMEL Origin China HS Code 8429510000 Production Capacity 800 Sets/Year

Product Description

competitive wholesale price CE mini front end wheel loader
GENERAL INTRODUCTION:

STEEL CAMEL M910 small telescopic loader can be found working in various fields, like farming, gardenning, landscaping, animal house, construction, bee keeping, minicipal work etc. There are many reasons for its popular:

1.Its compact design enable it can work in some limited working site which other normal loaders can not come through

2.The fully hydrostatic driving system makes the driving smooth and easily controlled.

3.The telescopic boom increase the liting height into the level which many other loaders can not achieve

4.Its independent working and driving system offers great convenient to some hydraulic attachments

5.Its front and rear hydraulic output, quick coupling and 3 point hitch, together with hundreds of different attachments can finish almost all the work needs.

6.The flexible articulation offers fantastic motility in rough terrain.


TECHNICAL DATA:


Model	STEEL CAMEL M910 mini wheel loader
Dimension (LxWxH)	2690 X1240 X 2285mm
Max. lifting height (boom extended)	3030mm
Max. lifting height (boom retracted)	2512mm
Max. dumping height	2630mm
Bucket capacity	0.5cbm
Max. loading capacity	1200kg
Min. turning radius	2120mm
Turning angle	45 degree
Min. ground clearance	268mm
Speed	0-12 km/h single speed  0~8~16km/h two speed optional
Weight	1700 kg
Standard tire	26X12-12
Tire pressure	2.8 bar
Oil tank capacity	45L
Pressure	190bar
Working oil flow	33.5L/minx2
Tracking oil flow	78L/min
Oil model(mineral oil)	L-HL46
Fuel tank capacity	30L
Battery	60Ah, 12V
Engine	Perkins 404D-15
Rated power	24.5kw/33hp

APPLICATION:

Loader+Tractor, one Multi-purpose helper for globle customers

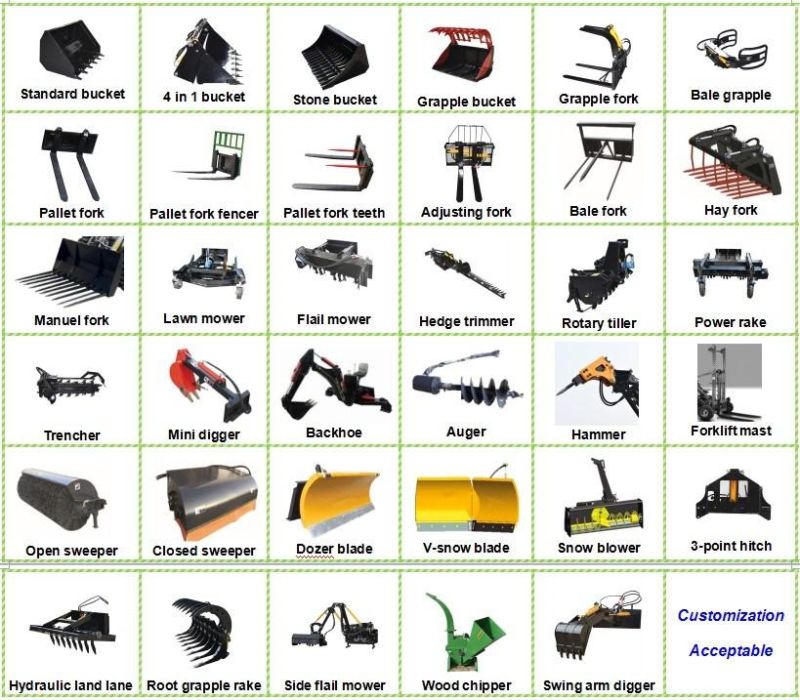

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.

Rear part is tractor, with hydraulic output and 3-point hitch, for rotary tiller, trailer, etc.

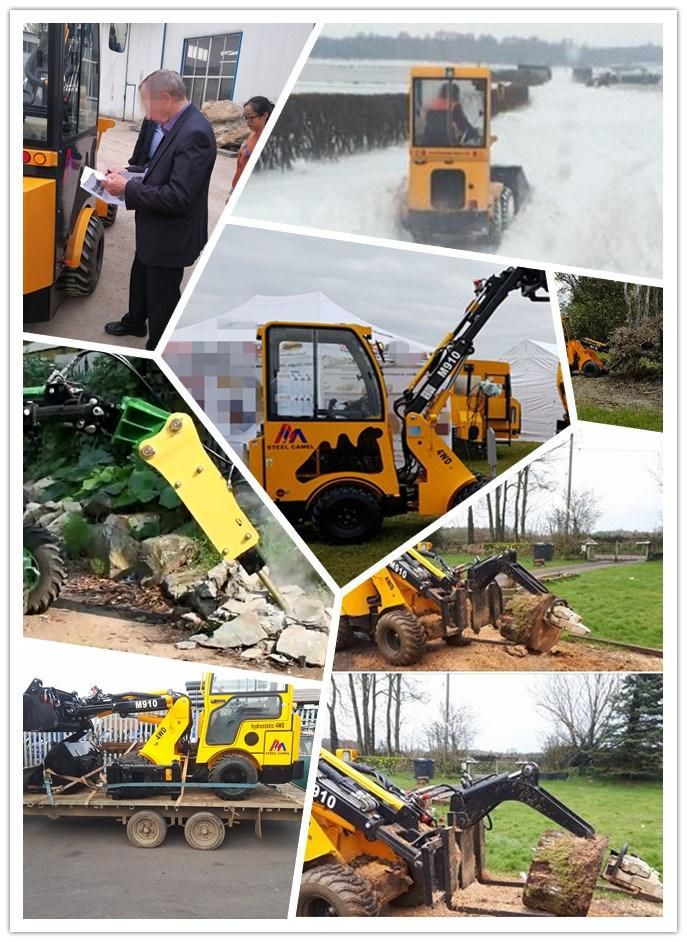

STEEL CAMEL series wheel loaders are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.





LOADING CONDITION:

STEEL CAMEL concern every needs of customer, we designed the loader to the biggest compact to save transporting cost.

Loading condition of M910 mini tractor loader as below:

3 sets/20' GP, 6 sets/40'GP



OUR SERVICES:



COMMON QUESTIONS:




CONTACT US:With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.

Send an inquiry, leave your questions, I will take care of all the rest matters. Anna Guan/Marketing director

Shandong Honest Machinery Co., Ltd
