Articulated Multione Telescopic 1.5 Ton Harley Rake Loader

Shandong Honest Machinery Co., Ltd.
  • Certification：TUV, UL, ISO, RoHS, CE, Rops Fops
  • Condition：New
  • Rated Load：1-3t
  • Transmission：Hydrostatic
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：M915
  • Type：Small Loader
  • Product：Telescopic Loader with Power Rake
  • Engine：Perkins,Yanmar,Kohler,Chinese
  • Power：30-70HP
  • Max. Lifting Height：3000-4000mm
  • Driving Speed：0-24km,H
  • Weight：1600-3000kg
  • Oil Flow：30-100L,Min
  • Wheel Drive：4WD
  • MOQ：1 Set
  • Warranty：12 Months
  • Transport Package：Nude Packing
  • Specification：3450X1500X2300mm
  • Trademark：STEEL CAMEL
  • Origin：Shandong
  • HS Code：8429510000
  • Production Capacity：800 Sets Per Year

Description

M910 M915M920Dimension with cabin (LxWxH)2690x1300x2285mm3400x1500x2300mm3650x1500x2350mmMax.lifting height (boom retract) 2512mm3000mm3200mmMax.lifting height (boom extend) 3030mm3562mm3900mmPulling force12kN18kN19kNBucket capacity0.5cbm0.8cbm1 cbmMax. loading capacity1000kg1500kg2000kgMin. turning radius2120mm2800mm3100mmTurning angle450450450Min. ground clearance268mm330mm330mmSpeed0-10 km/h0~12~24km/h, two speed0~12~24km/h, two speedOperating weight1850 kg2300kg2600kgStandard tire26X12-1231X15.5-1531X15.5-15Tire pressure2.8 bar2.8 bar2.8 barOil tank capacity45L80L80LPressure190bar190 bar190barWorking oil flow33.5L/minx241L/min x 250L/min x 2Tracking oil flow78L/min120L/min120L/minOil model(mineral oil)L-HL46L-HL46L-HL46Fuel tank capacity30L42L52LBattery60Ah, 12V60Ah, 12V60Ah, 12VEnginePerkins/YanmarPerkins/Yanmar/KohlerYanmar/Kohler/ChineseRated power33hp50hp68hp-74hp

Loader+Tractor, one Multi-purpose helper for all your works

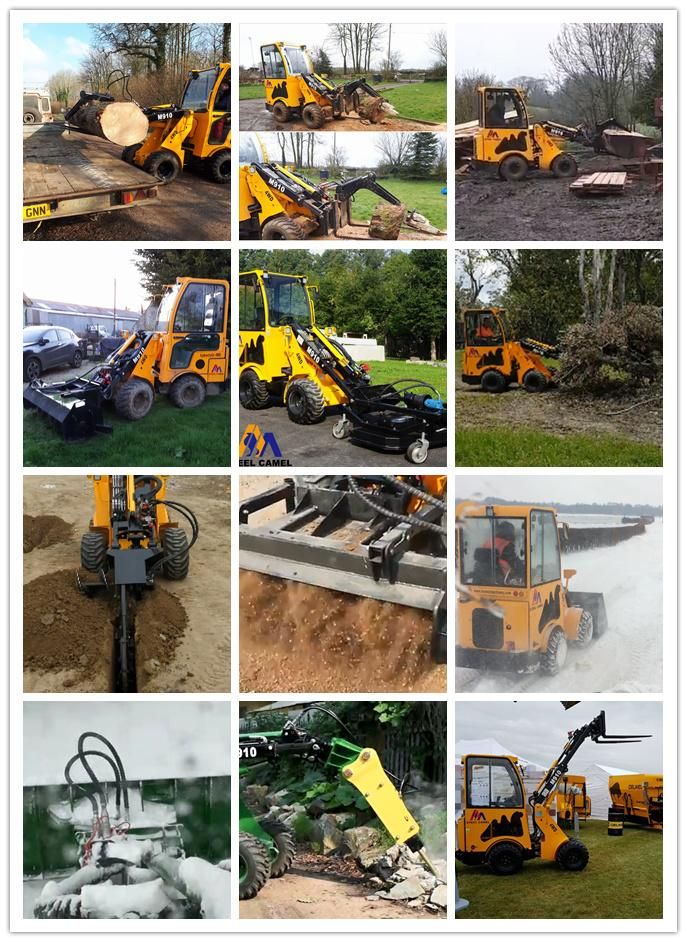

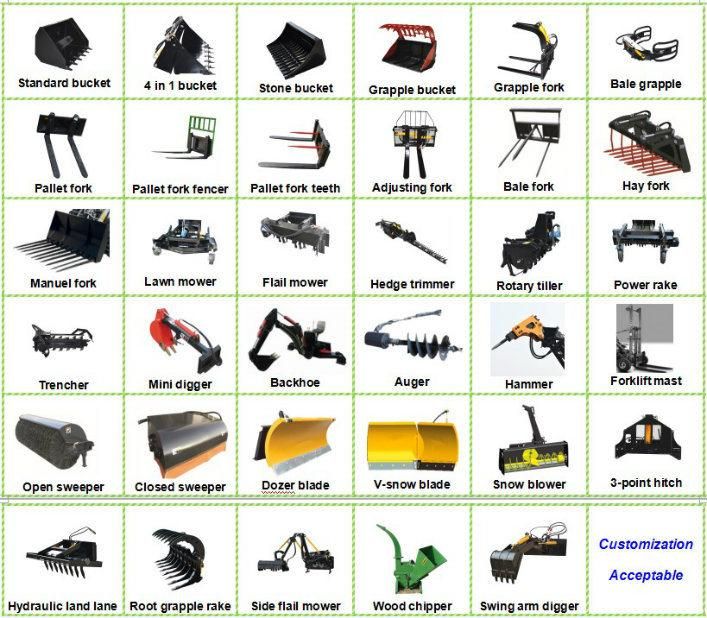

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.
Rear part is tractor, with hydraulic output, 3-point hitch, hydraulic PTO, for rotary tiller, flail mower, plough, harrow, trailer, etc.
STEEL CAMEL series machines are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.
Articulated Multione Telescopic 1.5 Ton Harley Rake Loader
Articulated Multione Telescopic 1.5 Ton Harley Rake Loader

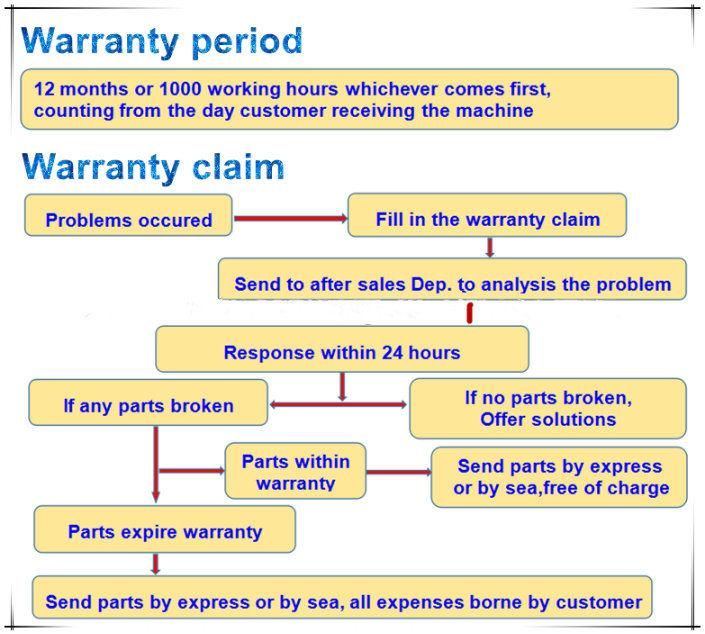

Loader warranty:
Articulated Multione Telescopic 1.5 Ton Harley Rake Loader
