Hydraulic Articulated Compact Wheel Loader Mini Front End Loader for Sale

Sinoway Industrial (Shanghai) Co., Ltd.
  • Warranty:1 Year
  • Certification:ISO, CE, ISO14001

Base Info

  • Model NO.:SWL30G
  • Condition:New
  • Rated Load:1-3t
  • Transmission:Power
  • Load and Unload Mode:Front Discharge
  • Walking Mode:Wheeled
  • Type:Small Loader
  • Brand:Sinoway
  • Engine:Cummins
  • Power:97kw
  • Operating Weight:10.8 Ton
  • Max. Traction Force:93.5 Kn
  • Dumping Clearance:3160mm
  • Tire Size:17.5-25
  • Transport Package:Naked, 1 Unit, 1 X 40′hq Container
  • Specification:ISO
  • Trademark:SINOWAY
  • Origin:China
  • HS Code:8429510000
  • Production Capacity:500 PC,Month
  • Package size per unit product:697.00cm * 225.00cm * 330.00cm
  • Gross weight per unit product:10800.000kg

Description

Basic Info.

Model NO. SWL30G Condition New Rated Load 1-3t Transmission Power Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Brand Sinoway Engine Cummins Power 97kw Operating Weight 10.8 Ton Max. Traction Force 93.5 Kn Dumping Clearance 3160mm Tire Size 17.5-25 Transport Package Naked, 1 Unit/ 1 X 40′hq Container Specification ISO Trademark SINOWAY Origin China HS Code 8429510000 Production Capacity 500 PC/Month

Packaging & Delivery

Package size per unit product 697.00cm * 225.00cm * 330.00cm Gross weight per unit product 10800.000kg

Product Description

Main Advantage
Equipped with Yuchai or Cummins engine with strong power and high reliability.

The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
Optimized preheating system and hyperboloid efficient fan, adaptable from -30 ºC ~ 45 ºC ambient temperature.
Single layer radiator and big range fin spacing for high efficiency and easy maintenance.

The large diameter and large air flow fan is used to enhance the performance of the cooling system with greater cooling effect and more energy efficient; The design of automatically leveling of the bucket and the boom lifting limit can be used to ensure that the bucket parallels to the ground while being placed on the ground so as to minimize the movement of the operation handle and to improve the operation efficiency;

Equipped with the highly comfortable seats with damping shock absorber that can be adjusted in six directions in accordance with the human engineering design to effectively reduce the fatigue strength, together with the humanized designs such as the cup holder and the storage box, etc.; Acoustic absorbing materials applied on the inner side of the hood to effectively reduce the noise;
Equipped with extra large engine hood with large opening angle of the side door to facilitate maintenance.

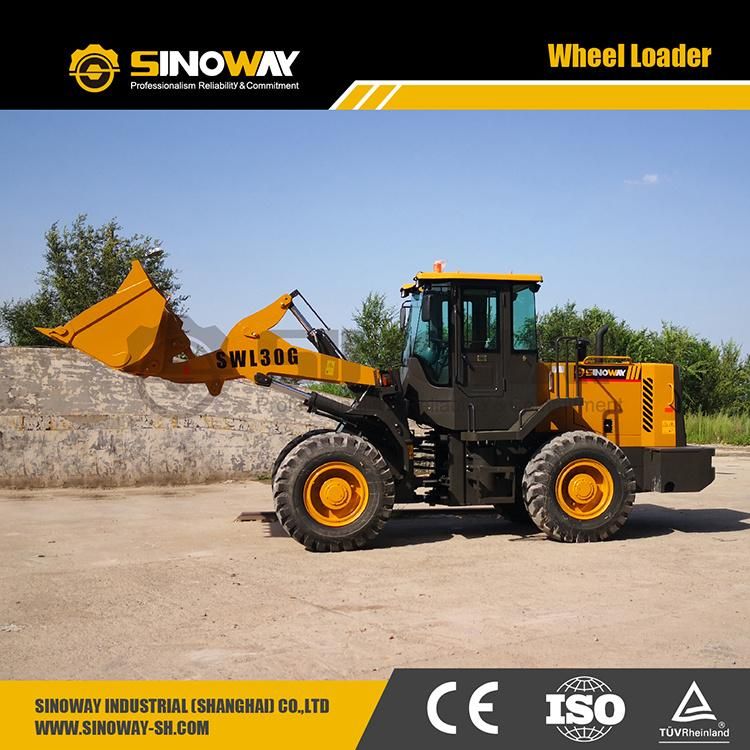

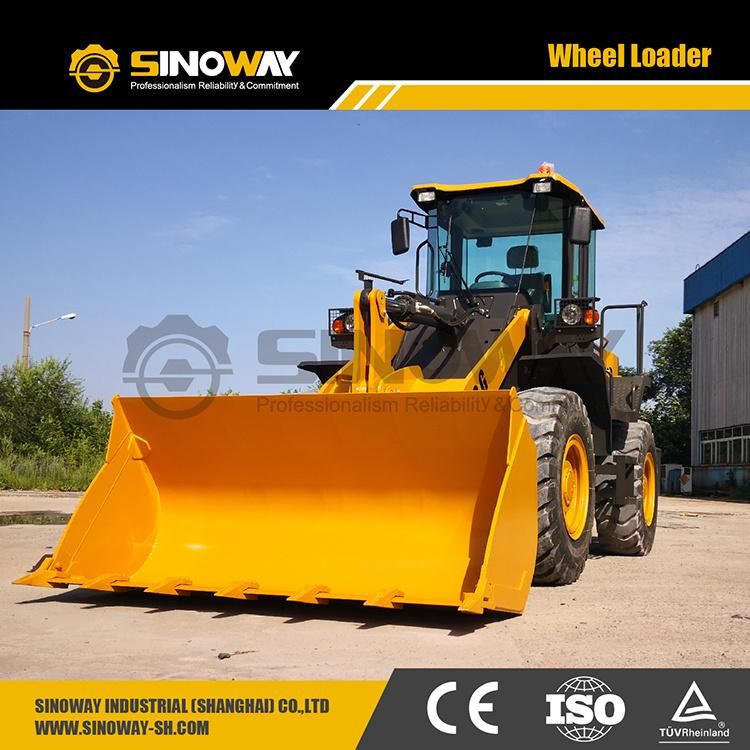

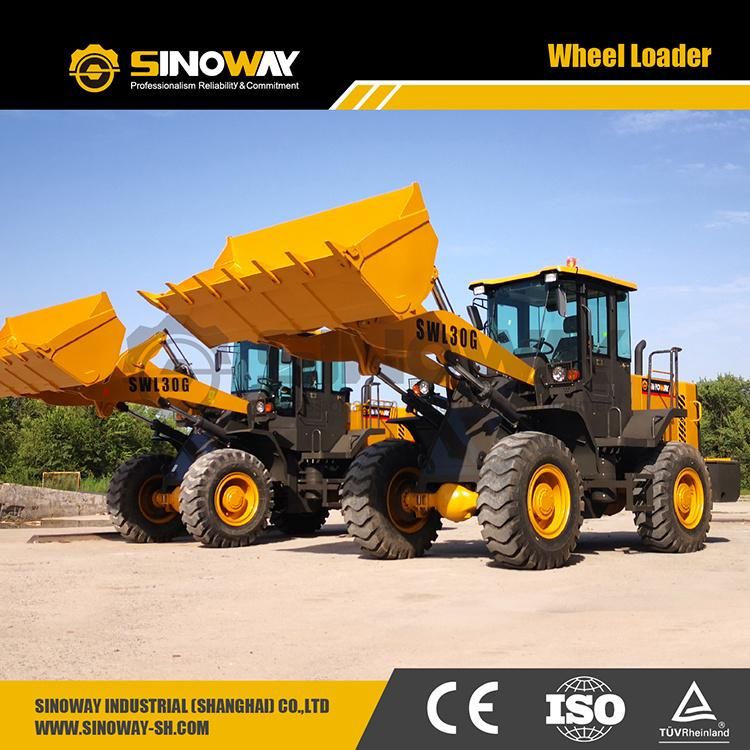

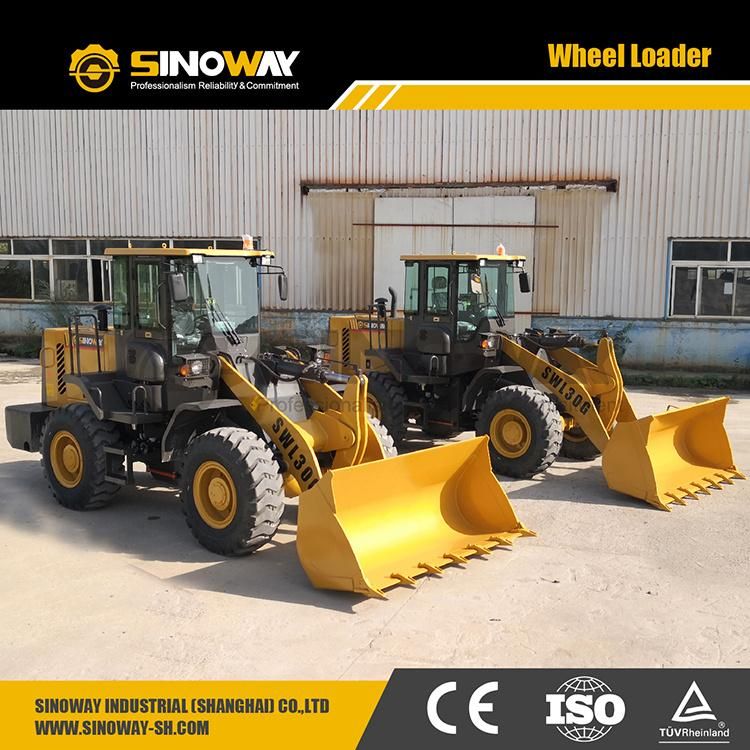

Prodcut Show
Hydraulic Articulated Compact Wheel Loader Mini Front End Loader for SaleHydraulic Articulated Compact Wheel Loader Mini Front End Loader for SaleHydraulic Articulated Compact Wheel Loader Mini Front End Loader for SaleHydraulic Articulated Compact Wheel Loader Mini Front End Loader for Sale
Specifications

Engine
ModelCummins 6BT5.9
TypeSix-cylinder,water-cooled, turbocharged,mechanical injection
Rated power97KW
Rated speed2200rpm
Main Technical Specification
Rated load3000Kg
Operating weight10800Kg
Rated bucket capacity1.7m3
Max. breakout force100KN
Max. dump clearance3060mm
Dump reach1008mm
Dump angle at any position45o
Digging depth(with bucket bottom horizontal)210mm
Min. turning radius(outside of bucket)5500mm
Oscillating angle of rear axle±11o
Lifting time of bucket≤5.6s
Lowering time of bucket≤3.1s
Dumping time≤1.1s
Implement Hydraulic System
Model of oil pumpCBGj2100
System pressure15.6MPa
Model of multi-way directional valveDF25.2C
Priority valveDJS2-UX
Axle And Tyre
Type of main reducerSpiral bevel gear, single stage
Gear ratio of main reducer5.285
Type of final reducerSingle stage planetary
Gear ratio of final reducer3.88
Total ratio20.5
Max. tractive force97KN
Tyre size17.5-25
Steering System
TypeArticulated fully hydraulic steering
Model of steering pumpCBY2050
Model of redirectorBZZ1-500
System pressure9.8MPa
Articulated steering angle38±1o(L/R)
Transmission System
Torque Converter
ModelYJH315-3
Type3 elements, singel stage
Torque ratio3
Cooling typePressure oil circulating
Gear box
ModelYJSW315-3
TypePower shift
Gear shifts(Forward/Reverse)F2/R1
Travelling speed(km/h)
Forward/Reverse I10.8/14.5
ForwardII32.5
Dimensions
Overall length(with bucket on ground)6970mm
Overall width(to outside of wheels)2250mm
Overall height(to the top of the cab)3228mm
Bucket width2330mm
Wheel base2750mm
Tread1850mm
Ground clearance360mm
Service Capacities
Fuel tank150L
Engine crank case20L
Converter and gear box32L
Hydraulic tank140L
Braking System
Service brakeAir-pushing-oil disc brake on four wheel
Air pressure0.65MPa
Parking brakeCable-Controlled caliper disc brake
