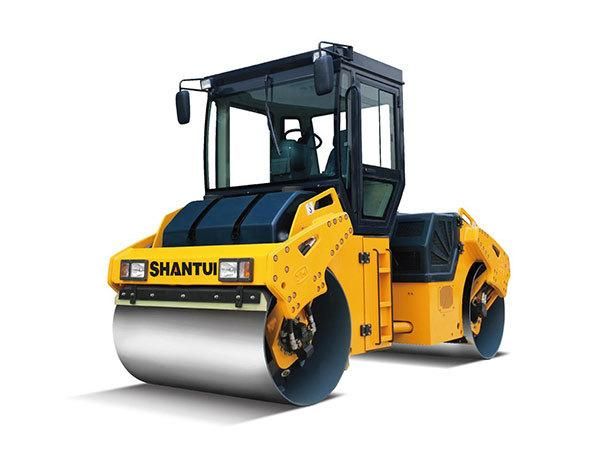

Shantui Brand New 10 Ton Construction Machine Road Roller (SRD10)
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Available
- Warranty：2 Years
- Type：Road Roller
- Working Method：Vibration
- Axle：Uniaxial Monowheel
- Grinding Wheel Type：Tire Grind
Base Info
- Model NO.：SRD10
- Compaction Depth：1700mm
- Engine Type：Diesel Engine
- Travel Speed：12km,H
- Centrifugal Force：110,65
- Certification：CE
- Condition：New
- Transport Package：Nude
- Specification：As below
- Trademark：Shantui
- Origin：Hunan
- HS Code：842940190
- Production Capacity：1000 Pieces,Month
Description
Basic Info.
Model NO. SRD10 Compaction Depth 1700mm Engine Type Diesel Engine Travel Speed 12km/H Centrifugal Force 110/65 Certification CE Condition New Transport Package Nude Specification As below Trademark Shantui Origin Hunan HS Code 842940190 Production Capacity 1000 Pieces/MonthProduct Description
Shantui Brand New 10 ton Construction Machine Road Roller (SRD10)Rich configurationTwo big anticorrosive sprinkling cisterles connected design, large capacity, electric control pressure intermittent sprinkling water.
Equipped with cab, optional air-conditioning or anti-roll frame
The overall shape is beautiful with the streamline design, and the console have a good view.
Hydraulic walking brake, electric control disc parking brake, equipped with emergency towing device, good safety performance
The articulated steering makes it flexible.
DANFOSS driving and vibrating system brings stability and reliability.
Hydraulic dual - wheel drive, infinitely variable, hydraulic steering, easy to operate
Using double frequencies, double amplitudes, imported plunger pumps and motors
Equipped with high quality Cummins engine, stronger power with less fuel consumption
| Parameter name | SRD10 |
| Performance parameters | |
| Operating weight (Kg) | 10000 |
| Exciting force (KN) | 110/65 |
| Vibration frequency (Hz) | 40/46 |
| Nominal amplitude (mm) | 0.75/0.35 |
| Ground pressure (KPa) | - |
| Gradeability (%) | 30 |
| Engine | |
| Engine model | Cummins 4BT3.9-C110 |
| Rated power/rated speed (kW/rpm) | 82kw/2400rpm |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 4420*1900*2950 |
| Driving performance | |
| Forward speed (km/h) | F1: 0-6, F2: 0-12 |
| Reversing speed (km/h) | R1: 0-6, R2: 0-12 |
| Chassis System | |
| Wheelbase (mm) | 3300 |
| Tank capacity | |
| Fuel tank (L) | 150 |
| Working device | |
| Compacting width(mm) | 1700 |
