Diesel shotcrete gunning machine used for industrial kilns′s inner from China

Zhengzhou Lead Equipment Co., Ltd.
  • After-sales Service：Online support
  • Warranty：1 year
  • Type：Shotcrete
  • Shotcrete Type：Dry
  • Machining Process：Welded Molding Machine
  • Structure：Spiral Type

Base Info

  • Model NO.：LZ-9
  • Productivity：9m3,H
  • Feeding Height：1.17m
  • Certification：ISO9001: 2000, CE, SGS
  • Condition：New
  • Color：Yellow
  • Product Name：Shotcrete Machine
  • Drive Type：Electric Motor Drive, Pneumatic Drive, Diesel Driv
  • Max. Aggregate Size：Dia.20 mm
  • Conveying Hose Inner Diameter：Dia.64 mm
  • Conveying Pressure：0.2-0.4MPa(29-58psi)
  • Air Consumption：10~12m 3 ,min(357-430CFM)
  • Diesel Engine：20hp,2200rpm, Radiator Cooling
  • Transport Package：Plastic Wrap, Plywood Case, Free-Fumigation
  • Specification：ISO
  • Trademark：Leadcrete
  • Origin：China
  • HS Code：84743100
  • Production Capacity：5000 Sets,Year

Description

Diesel engine driveOutput Capacity6-9m 3 /hMax. Horizontal Conveying Distance200mSuitable Mix Ratio(Cement/Sand)≤1:4~5Max. Aggregate SizeDia.20 mmConveying Hose Inner DiameterDia.64 mmConveying Pressure0.2-0.4MPa(29-58PSI)Air Consumption10~12m 3 /min(357-430CFM)Material Charging Height1.1mRotor Speed7.5-11r/minDiesel Engine20hp,2200rpm, Radiator CoolingDiesel Engine StartingElectric startClutch Type in Diesel EngineAutomatic ClutchAir VibratorOR100,OliOverall Dimension(length×width×height)2.66×1.11×1.50mNet Weight950kgIf there is no model you need, please contact us in time. Can be customized according to your project!

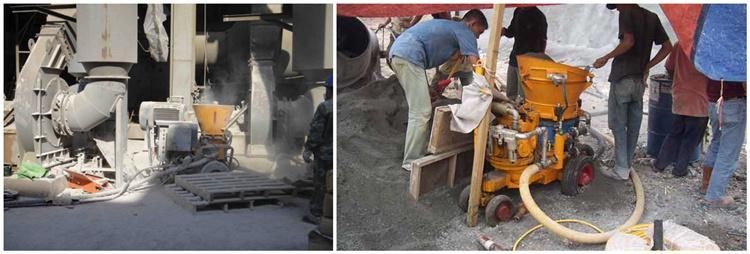

3. Application:
LZ-9 can be used for large-section tunnel building, mine, etc
Diesel shotcrete gunning machine used for industrial kilns′s inner from China

4. Features:
1. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
4. Partifularly used for dry, damp mix and steel(polymer)fiber reinforced shotcrete.

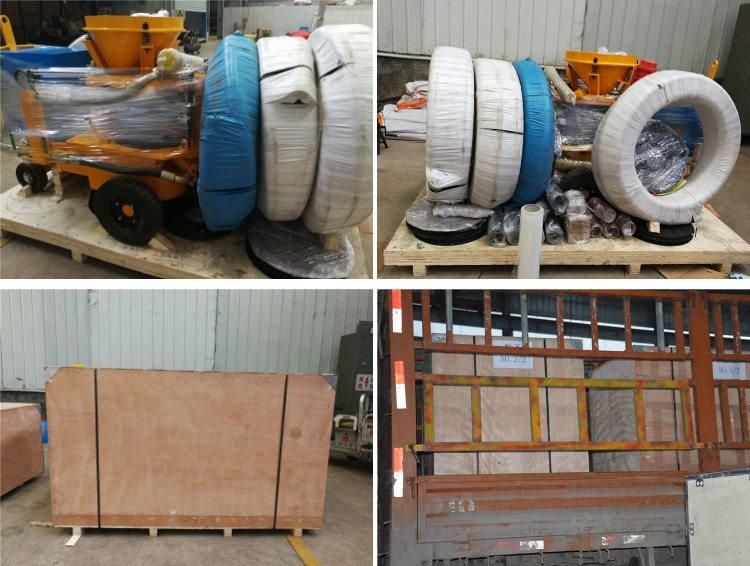

5.Packaging & Shipping:
Diesel shotcrete gunning machine used for industrial kilns′s inner from China

6.Company Information:
Diesel shotcrete gunning machine used for industrial kilns′s inner from China
Diesel shotcrete gunning machine used for industrial kilns′s inner from China
Diesel shotcrete gunning machine used for industrial kilns′s inner from China
