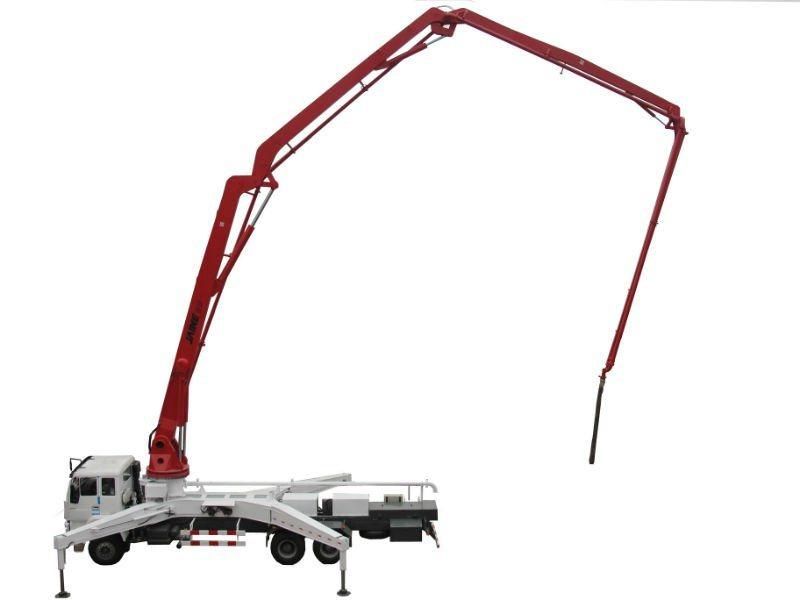

• Model NO.：HB Truck Mounted Concrete Pump
• Structure：Cylinder Type
• Productivity：40
• Feeding Height：1370mm
• Vibrating Amplitude：2.6mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Orange
• Max Theoretical Concrete Output (L/H)：75,46
• Concrete Slump (mm)：120-230
• Powder (Kw)：Diesel Motor 130
• Speed (R/Min)：2300
• Conveying Cylinder Diameter (mm)：125,1600
• Concrete Cylinder Diameter (mm)：200,1600
• High-Low Pressure Switch：Yes
• Distance (Vertical Height/Horizontal Dis：270,1200
• Pipe Cleaning Mode：Washing
• Transport Package：Naked in Container
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8705909100
• Production Capacity：10000PC,Year

Overall Performance
 Description
UnitParametersMax theoretical conveying capacitym3/h40/24Max theoretical conveying pressureMpa10Distributing valve form S S-VALVEConcrete cylinder diameter× stroke mmspecification :diameter×travelmmφ160×1000Hopper volumem30.4Particale Sizemm35Material outlet diametermmφ125Material feeding heighmm1150 Conveying Distancem200m Concrete pipe Diamm12cmPower System
 Model of diesel engine Deutz diesel engineDiesel engine powerkw70Model of main oil pump K3VG112Diameter of main oil cylinder× diameter×strokemmφ110×φ70×1000Diameter of swing oil cylindermmφ63Hydraulic System
 Hydraulic oil circuit type Open circuitOil pressure of pumping system(set valve of safely valve)Mpa20Oil pressure of distributing system(set valve of safely valve)Mpa13Oil pressure of mixing system(set valve of safely valve)Mpa11Other Parameters

Diesel engine power of radiatorW100Rotary speed fanr/min3000Allowable max. aggregate sizemm40,30
Cobble40,Detritus30Inner diameter of concrete conveying tube

 mmφ80/φ100
Overall dimension (L×W×H)mm4320×1800×2000Overall weighkg3200Trailing speedkm/h<8
Advantages of truck-mounted concrete pump
1) Concrete pump is a very efficient and reliable means of placing concrete, which makes it a very economical method as well.
2) Sometimes, concrete pump is the only way of placing concrete in a certain location. Such as a high rise building, or large slabs
where the chutes of the concrete truck can't reach where the concrete is needed.
Other times, the ease and speed of concrete pump concrete makes it the most economical method of concrete placement.

Features of truck-mounted concrete pump
1) Electronically controlled hydraulic system reversing, using constant power variable plunger pump, long usage life
2) Two working mode: low voltage with large displacement and high pressure with small displacement
3) Cooling system takes oil-wind cooling methond, high cooling power can efficient reduce heat of hydraulic system.Controllable and
large-duty forced air-cooled heat sink is two-circuit and bulk oiled, so to make sure that the oil temperature is less than 60 degree under
the condition of consecutive work.
