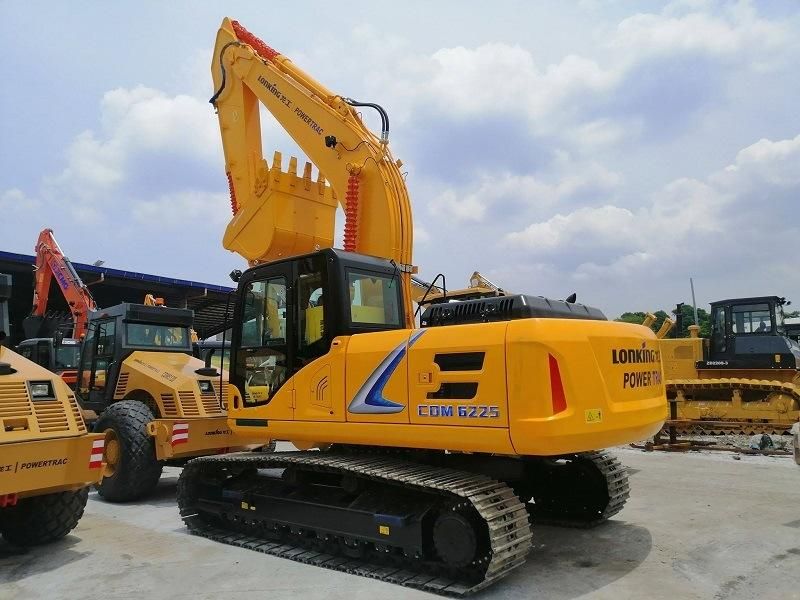

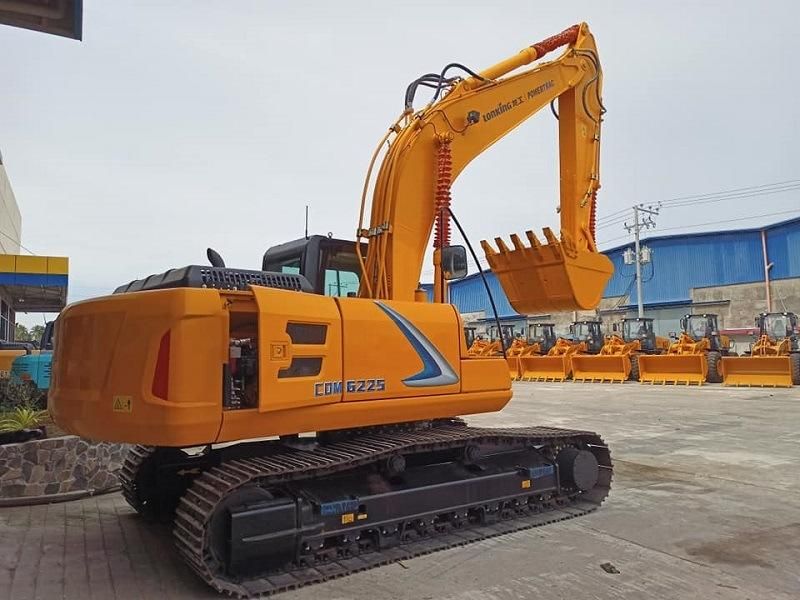

• Model NO.：CDM6225
• Bucket Capacity：1.1
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Rated Power：112,1950 Kw,Rpm
• Transport Package：Nude
• Trademark：Lonking
• Origin：Shanghai, China
• Production Capacity：5000PCS,Year

Model CDM6225GeneralOperating weight( kg)21800Standard bucket(m³)1.1Bucket range(m³)0.8-1.1 Ground pressure(kPa)51Travel speed(km/h)3.33/5.54 Swing speed (rpm)11.6Gradeability35° (70%)EngineModelCummins 6BTAA5.9-C (Euro II)Rated power(Kw(hp)/rpm)112 (150) /1950 Displacement (L)5.9Fuel tank(L)380Hydraulic SystemMax.pressure of Implements(MPa)34.3Max. flow of system( L/min)208×2 Hydraulic oil tank(L)280Working DeviceBoom length(mm)5675Arm length(mm)2920Bucket radius(mm)1452Digging ForceMax. arm digging force (SAE/ISO)(kN)102/105Max. bucket digging force (SAE/ISO)(kN)135/158
Product Images
