• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.1~0.5m³
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Working Pressure of Hydraulic Pump：16 MPa
• Weight：890 Kg
• Max Climb Capability：30
• Max Ecavation Depth：1635 mm
• Max Ecavation Height：2755 mm
• Max Unloading Height：1960 mm
• Engine Model：Kepu192f ,Changchai192f
• Rated Power：7.6,7.5 Kw
• Standard Buket Capacity：0,025m3
• Rotary Speed：11rpm
• Standard Buket Size(L*W：340*370
• Transport Package：Container 13 - 40hc
• Specification：2800mm*800mm*1580
• Trademark：SHANZHUANG
• Origin：Shandong China
• HS Code：84295212
• Production Capacity：12000pieces,Year

Basic Info.

Drive Type Internal Combustion Drive Bucket Capacity 0.1~0.5m³ Size Small-Scale Certification CE, ISO9001: 2000 Condition New Working Pressure of Hydraulic Pump 16 MPa Weight 890 Kg Max Climb Capability 30 Max Ecavation Depth 1635 mm Max Ecavation Height 2755 mm Max Unloading Height 1960 mm Engine Model Kepu192f /Changchai192f Rated Power 7.6/7.5 Kw Standard Buket Capacity 0,025m3 Rotary Speed 11rpm Standard Buket Size(L*W 340*370 Transport Package Container 13 - 40hc Specification 2800mm*800mm*1580 Trademark SHANZHUANG Origin Shandong China HS Code 84295212 Production Capacity 12000pieces/Year

Product Description

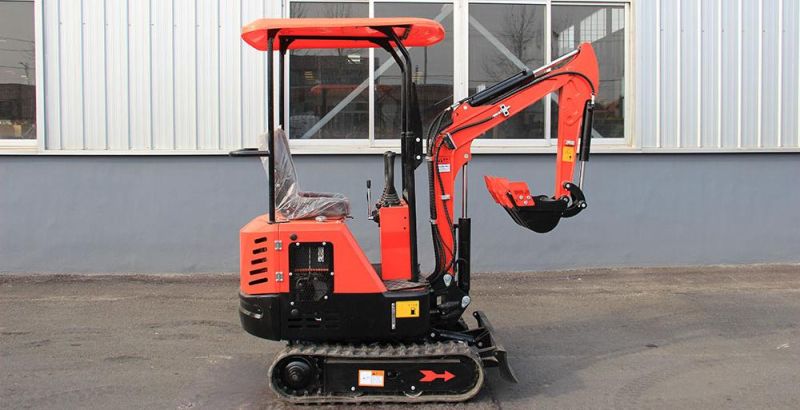

Reliable performance Customized Backhoe Single Bucket Hydraulic 1ton Mini Crawler Excavator for sale

Advantages of the model FW-10A loader:

1. All choose the best domestic and international ingredients, the quality is reliable and meet the needs of humanization.

2. European style appearance and luxurious interior cab; full glass side door with wide view.

3. The brake tube is equipped with a protective sleeve, which can effectively prevent the brake tube from being smashed by the material and greatly improve the safety performance; the unique external introduction setting of the refueling nozzle makes it easy to inject oil and is easy to concentrate on filling butter.

4. Fine pipeline design and rational pipeline layout, beautiful and practical, easy to repair.

5. The bucket is flattened automatically to reduce the fatigue strength of the driver.

Product Parameters:


Excavator model		FW-10A
Engine Model		KOOP KD192F (Euro V)
Rated Power	KW	7.6
Rated Speed	r/min	3000
Working Pressure of Hydraulic Pump	mpa	16
Maximum walking speed	km/h	1.2
Rotary speed	rpm	11
Max Climb Capability	°	30
Bucket digging force	KN	11
Weight	kg	890
Max ecavation depth	mm	1635
Max ecavation height	mm	2755
Max unloading height	mm	1960
Max vertical excavation depth	mm	1305
Max lifting heiht of bulldozer	mm	350
Max excavation depth of bulldozer	mm	209
Standard buket size(L*W)	mm	340*370
Standard buket capacity	m³	0.025
Profile size	mm	2800×800×1580

Product Details:

Our wheel excavator is multifunctional; We offer many optional attachments which could be used in different fields.

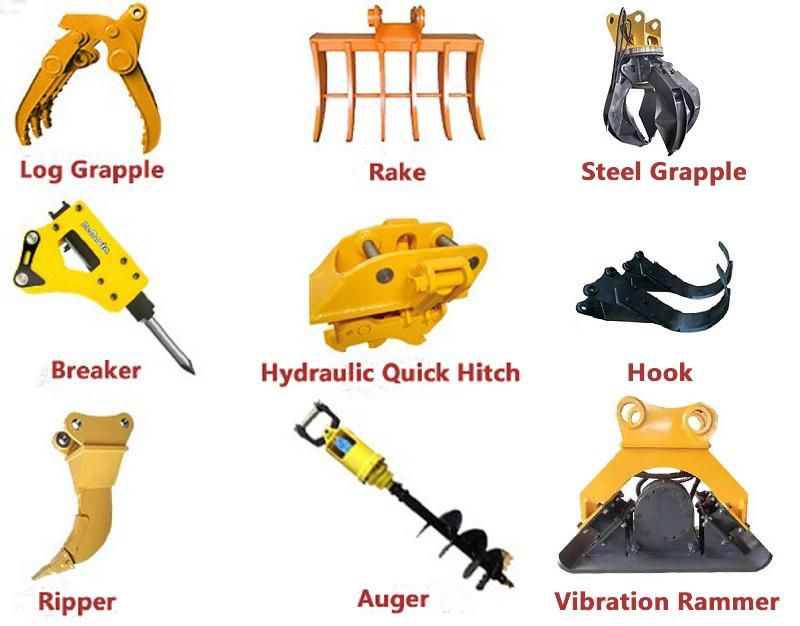

Auger, Breaking hammer,Grab bucket,Rake,Ripper,Rotating grapple,Small bucket and so on.

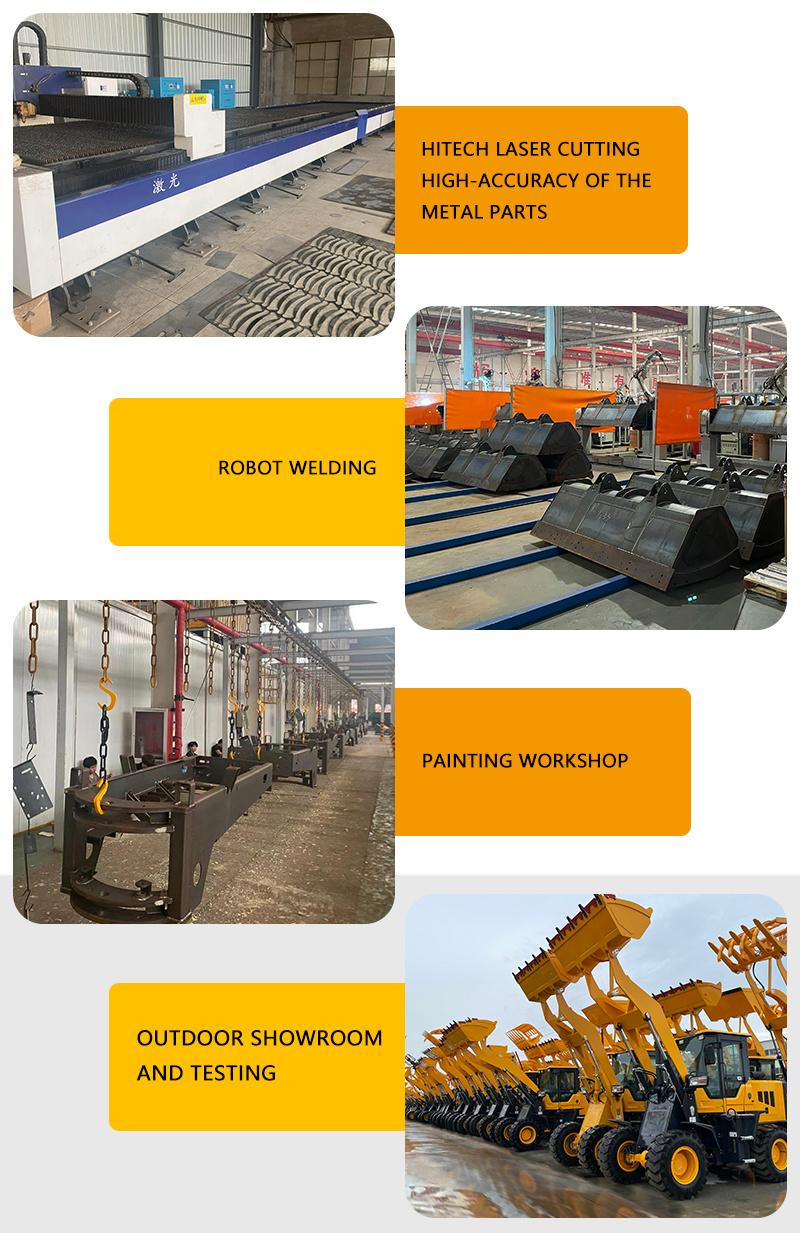

Production workshop:


Packaging&Shipping:

Our Certificates:

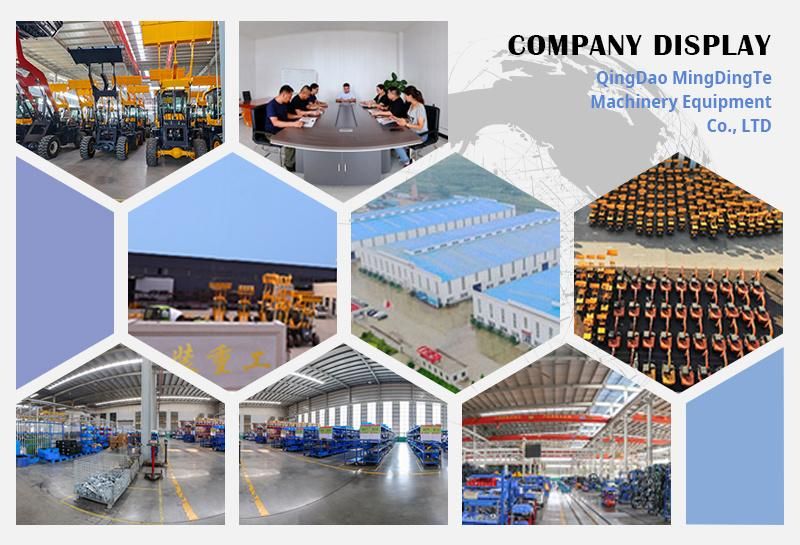

Our Company:


Production Environment:

FAQ:
Q1: Are you original manufacture?
Yes, we are an official leading manufacture in construction machinery in China.

Q2: Which country do you export to?
Our models already exported to more than 20 countries in Europe, including Germany, Austria, Poland, Czech, Greece, Sweden... and other countries, Canada, Philippine, Vietnam, Australian. We set our own showroom and warehouse in Poland and Philippine.

Q3: What is the proportion of your products export?
75% of our products are exported to all over the world.

Q4: What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT,L/C, D/P, depending on the cooperation time, country and contract value.

Q5: What kind of logistic service do you supply?
FOB, CIF, DAP, ETC

Q6: What about the delivery time?
7-15 days after receiving the deposit.
