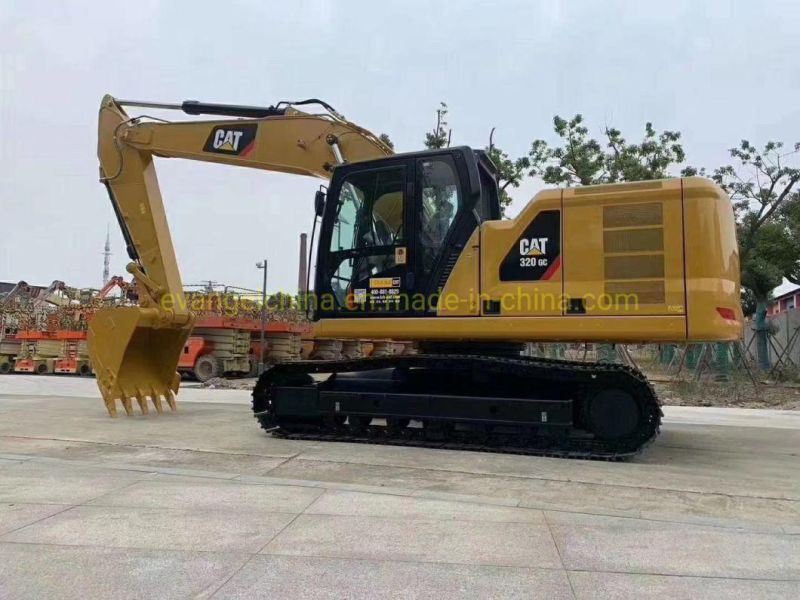

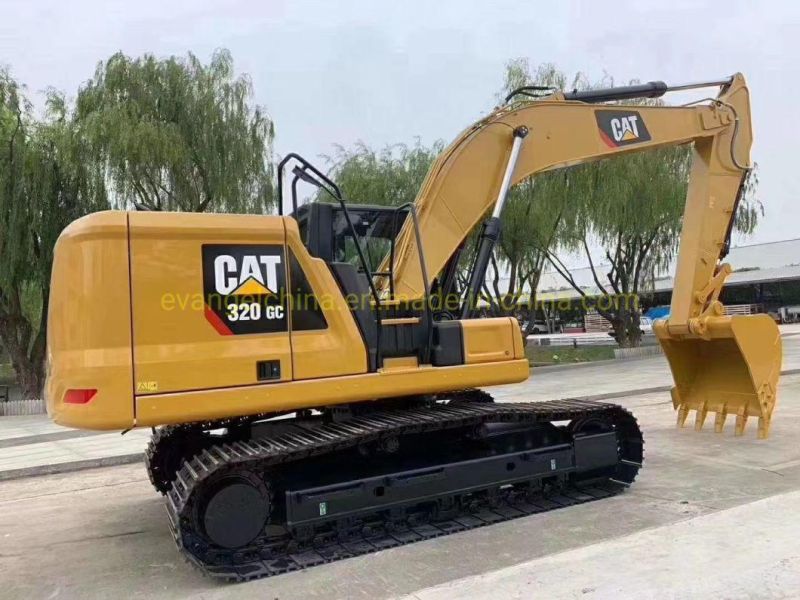

Made in China Brand New 108kw 20t Crawler Excavator 320gc/320 Gc
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Online Video Support
- Warranty：One Year
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Bucket Capacity：1.0~1.5m³
Base Info
- Model NO.：320GC
- Size：Medium-Sized
- Certification：ISO9001: 2000
- Condition：New
- Max Digging Depth：6710mm
- Bore：105mm
- Stroke：127mm
- Displacement：4.4L
- Operating Weight：19800kg
- Transport Package：Nude Packing
- Origin：China
Description
Basic Info.
Model NO. 320GC Size Medium-Sized Certification ISO9001: 2000 Condition New Max Digging Depth 6710mm Bore 105mm Stroke 127mm Displacement 4.4L Operating Weight 19800kg Transport Package Nude Packing Origin ChinaProduct Description
Made in China brand new 108kw 20t crawler excavator 320GC/320 GCThe Ca-t ® 320 GC excavator balances productivity with easy-to-use technology features, a new comfortable cab, reduced fuel consumption by up to 20%, and longer maintenance intervals reducing maintenance costs by up to 20% to give you a durable, low-cost-per-hour excavator for light- to medium-duty applications.
| Net Power - ISO 9249 | 107 kW |
| Engine Model | C-at C4.4 |
| Engine Power - ISO 14396 | 108 kW |
| Bore | 105 mm |
| Stroke | 127 mm |
| Displacement | 4.4 l |
HYDRAULIC SYSTEM
| Main System - Maximum Flow | 429 l/min (113 gal/min) |
| Maximum Pressure - Equipment | 35000 kPa |
| Maximum Pressure - Travel | 34300 kPa |
| Maximum Pressure - Swing | 25000 kPa |
SWING MECHANISM
| Swing Speed | 11.6 r/min |
| Maximum Swing Torque | 74.4 kN·m |
WEIGHTS
| Operating Weight | 19800 kg |
SERVICE REFILL CAPACITIES
| Fuel Tank Capacity | 345 l |
| Cooling System | 25 l |
| Engine Oil | 15 l |
| Swing Drive - Each | 12 l |
| Final Drive - Each | 5 l |
| Hydraulic System - Including Tank | 234 l |
| Hydraulic Tank | 115 l |
DIMENSIONS
| Boom | Reach 5.7 m (18'8") |
| Stick | Reach 2.9 m (9'6") |
| Bucket | 1.0 m³ (1.31 yd³) |
| Shipping Height - Top of Cab | 2960 mm |
| Handrail Height | 2950 mm |
| Shipping Length | 9530 mm |
| Tail Swing Radius | 2830 mm |
| Counterweight Clearance | 1050 mm |
| Ground Clearance | 470 mm |
| Track Length | 4450 mm |
| Length to Center of Rollers | 3650 mm |
| Track Gauge | 2380 mm |
| Transport Width | 2980 mm |
WORKING RANGES & FORCES
| Maximum Digging Depth | 6710 mm |
| Boom | Reach 5.7 m (18'8") |
| Stick | Reach 2.9 m (9'6") |
| Bucket | 1.0 m³ (1.31 yd³) |
| Maximum Reach at Ground Level | 9850 mm |
| Maximum Cutting Height | 9450 mm |
| Maximum Loading Height | 6500 mm |
| Minimum Loading Height | 2180 mm |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 6540 mm |
| Maximum Vertical Wall Digging Depth | 6540 mm |
| Bucket Digging Force - ISO | 129 kN |
| Stick Digging Force - ISO | 99 kN |
