• Model NO.：SD08
• Condition：New
• Color：Green
• Gradeability：30
• Ground Clearance：440mm
• Max. Blade Digging Depth：430mm
• Max. Torque：1078,1250n.M,Rpm
• Transport Package：Nude Packing
• Specification：4020*2400*2679mm
• Trademark：SHANTUI
• Origin：China
• HS Code：84291190
• Production Capacity：1000 Units, Month

Basic Info.

Model NO. SD08 Condition New Color Green Gradeability 30 Ground Clearance 440mm Max. Blade Digging Depth 430mm Max. Torque 1078/1250n.M/Rpm Transport Package Nude Packing Specification 4020*2400*2679mm Trademark SHANTUI Origin China HS Code 84291190 Production Capacity 1000 Units/ Month

Product Description

SHANTUI 80HP Crawler Bulldozer with Angle Shovel SD08

Product Description:

1. Weichai WP4G90E235 turbocharged engine features strong power, high efficiency and energy-saving, and high torque reserve coefficient.

2. The drive system adopts power shift transmission, featuring flexible and convenient operations and high working efficiency.

3. The large gilled tube radiator is adopted to effectively guarantee the normal running under high environmental temperature and ease the cleaning. The radiator with 4-point (up and down) shock-absorbing installation features high stability.

4. The multi-stage filtration system is adopted to effectively guarantee the oil cleanliness and reduce the malfunction rate of hydraulic system.

5. The full box-type main frame welds the front balance beam, working device mounting points, and lifting cylinder rear support points onto the main frame to achieve a better stiffness and durability and improve the motion consistency between left and right cylinders. The rear balance beam brackets adopt the installation structure to ease the replacement.

6. The chassis system features high durability and stability and good traction performance.

7. The cab, operating devices, and instrument assembly features high comfort and convenience.

8. The trimming blade capable of large-angle forward and backward tilting adopts symmetrically arc-shaped double-faced structure to adapt to double-faced operations. The internally arranged vertical plate weldments guarantee the strength for all trimming blade parts to collect more handled material at one time and adapt to various complicated working environments.

9. The rear guard is welded from high strength plates to effectively prevent the damage of drive system arising from the collision with ship compartments during operations and guarantee more durable reliability and service life of the machine.

Paramerer:

Item	Parameters	Unit
Dimmensions(LxWxH)	3973*2553*2785	mm
Operating Weight	79500	kg
Ground Pressure	0.045	MPa
Gradeability	30	°
Engine Model	WP4G90E235
Rated Power	162/1800	kW/rpm
Blade Type	Straight tilting blade (For standard and wetland models) U-blade (For U-blade and U-blade wetland models)
Blade Capacity	1.84(For standard and U-blade models) 1.92(For wetland and U-blade wetland models)	m³
Blade Size WxH	--	mm
Max drop below ground of blade	383	mm

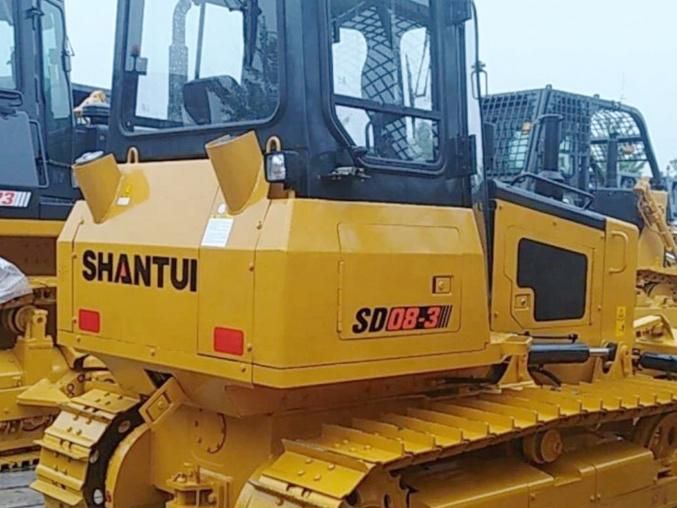

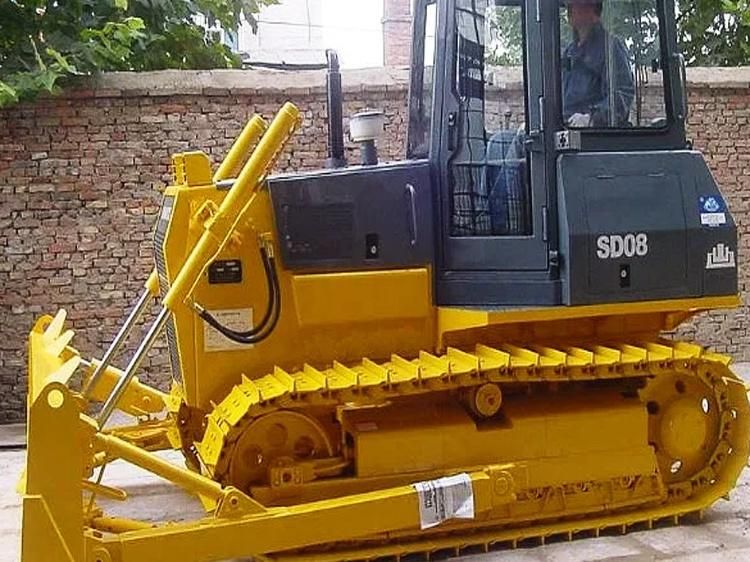

 Photoes:
