• Travel Speed：56.9cm,S
• Centrifugal Force：40KN
• Certification：EPA, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Operating Mass：30000kg
• Max. Travel Speed：20.5km,H
• Tire Number：5+6
• Tire Contact Pressure：307-460 Kpa
• Min Turning Radius：8000mm
• Rooling Width：2755mm
• Wheel Overlap：50mm
• Grade Abality：20%
• Diesel Power：125kw
• Overall Dimensions：4874*2755*3103mm
• Transport Package：Container, RO - RO Ship, Frame Cabinet, etc.
• Specification：CE, Rohs, ISO9001, ISO4001
• Trademark：CHHGC
• Origin：Henan, China
• HS Code：84294
• Production Capacity：5000 Sets,Year

Basic Info.

Travel Speed 56.9cm/S Centrifugal Force 40KN Certification EPA, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Operating Mass 30000kg Max. Travel Speed 20.5km/H Tire Number 5+6 Tire Contact Pressure 307-460 Kpa Min Turning Radius 8000mm Rooling Width 2755mm Wheel Overlap 50mm Grade Abality 20% Diesel Power 125kw Overall Dimensions 4874*2755*3103mm Transport Package Container, RO - RO Ship, Frame Cabinet, etc. Specification CE, Rohs, ISO9001, ISO4001 Trademark CHHGC Origin Henan, China HS Code 84294 Production Capacity 5000 Sets/Year

Product Description

Product Description

Heavy Tire Roller Compactor HRS235H For Sale

Specifications:



1.Cummins B Series water-cooled supercharged engine, powerful, high performance and advanced;
2.Equipped with shift the synchronizer gearbox or power shift hydraulic transmission, performance, advanced,
easy to operate;
3.Power sprinkler system is completely rust-proof material, large-capacity fiberglass tank, to extend the operating time;
4.With infrared night vision function operating surveillance systems, operating job is very convenient;
5.The whole structure is compact, low center of gravity design, attractive appearance;
6.The spacious enclosure with ventilation and air conditioning (choice), ease of operation

Performance Characteristics:

1- Shift synchronizer gearbox or power shift hydraulic transmission
2- Infrared night vision function operating surveillance
3- Powerful Famous brand diesel engine for various working conditions.
4- Hydrostatic travel drive with imported hydraulic pump and motor at two-range infinitely variable speeds results in less shock to road surface.
5-Operating weight and ground contact pressure can be adjusted by filling water or wet sand with greater
 adjusting scope.
6-Power sprinkler system with corrosion free materials and reinforced polyethylene water tank and multi-stage water filters for reliable operation.
7-Unique, beautiful and compact appearance design .
8-Spacious and closed operator's cab with ventilating and air conditioning devices (optional).

Main Technical Specifications:


Model	Unit	HRS2030	HRS1626	HRS1626-2	HRS1016
Maximum quality of work	kg	30000	26000	26000	16000
Minimum quality of work	kg	20000	16000	16000	10000
The maximum forward speed	km/h	20.5	20.5	20	14
Number of tires	Pcs	5+6	5+6	5+6	4+5
Average ground pressure	kPa	307~460	250-420	250-420	150~300
Minimum turning radius	mm	8000	7710	7710	7500
Rolling width	mm	2755	2755	2755	2255
Tire overlap width	mm	50	50	50	40
Grade ability	%	20	20	20	20
Diesel models	Brand	Cummins 6BTA5.9	Cummins 6BT5.9	Cummins 6BT5.9	Cummins 4BT3.9
Diesel Power	kW	125	110	110	75
The engine speed	r/min.	2300	2300	2300	2400
Dimensions (cab)	mm	4874*2755*3103	4874*2755*3103	4874*2755*3103	4770*2255*3100
Dimensions (awning)	mm				4770*2255*3192

Applications of Pneumatic Type Road Roller

Pneumatic smooth-tire rollers is suitable for compaction of various cohesive and non-cohesive materials such as sandy soil, crushed stone, stabilized soils, bituminous concrete and rolling
 cement concrete (RCC) on road surface construction.

Especially for final compaction of asphalt surface on high-class highway,which is super quality compaction
 equipments for high-class highway, airport, municipal road and industrial ground.

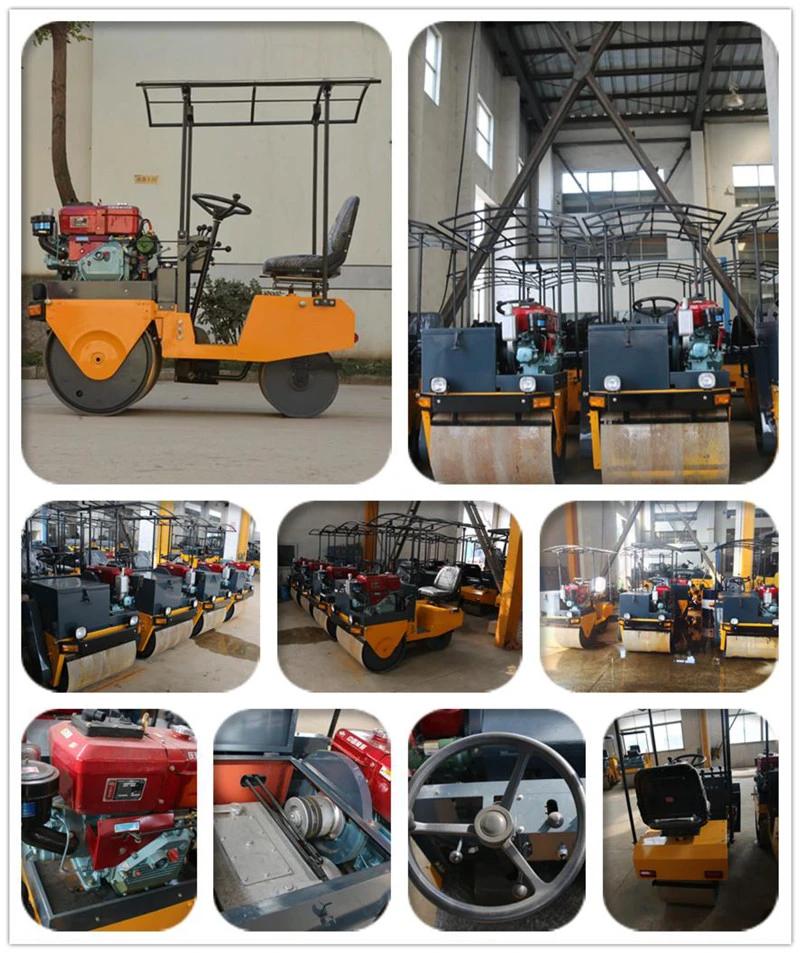

Production Workshop



Certificate


Business Partners

FAQ

Q1. How to ship the vehicles?
A:   By container, bulk ship, RORO.

Q2. Do you have RHD(right hand driving) vehicles?
A:   Yes, noramlly we supply all LHD vehicles, and we have some RHD model vehicles.

Q3. What is your payment term?
A:  We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which model vehicles do you supply?
A:  We supply all kinds of vehicles such as SUV, MPV, Pickup,van,truck, bus etc,.

Q5. What is your terms of delivery?
A:   FOB, CIF.

Q6. How about your delivery time?
A:  Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:  Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
