• Model NO.：GYP-50
• Compaction Depth：40cm, 30cm
• Engine Type：Petrol Engine, Honda Gx390
• Travel Speed：40cm,s, 30cm,S
• Centrifugal Force：40KN, 50kn
• Certification：EPA, CE, ISO 9001:2000, ISO9001: 2000, CE, TUV
• Condition：New, New
• Shotcrete Type：Wet
• Color：Orange
• Machining Process：Vibration
• Power Kw(HP)：9.6(13.0)
• Dimension(L*W*H)mm：965*600*1370
• Weight Kgs(Lbs)：360
• Plate Size Cm/in：L890(35.6)Xw600(24)
• Frequency Rpm：4100
• Max Speed：3600rpm
• Transport Package：Wooden Carton
• Trademark：GEYO
• Origin：China
• HS Code：8430610000
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. GYP-50 Compaction Depth 40cm, 30cm Engine Type Petrol Engine, Honda Gx390 Travel Speed 40cm/s, 30cm/S Centrifugal Force 40KN, 50kn Certification EPA, CE, ISO 9001:2000, ISO9001: 2000, CE, TUV Condition New, New Shotcrete Type Wet Color Orange Machining Process Vibration Power Kw(HP) 9.6(13.0) Dimension(L*W*H)mm 965*600*1370 Weight Kgs(Lbs) 360 Plate Size Cm/in L890(35.6)Xw600(24) Frequency Rpm 4100 Max Speed 3600rpm Transport Package Wooden Carton Trademark GEYO Origin China HS Code 8430610000 Production Capacity 1000PCS/Month

Product Description

Plate compactor,there are internal combustion and electric vibrating plate ram.

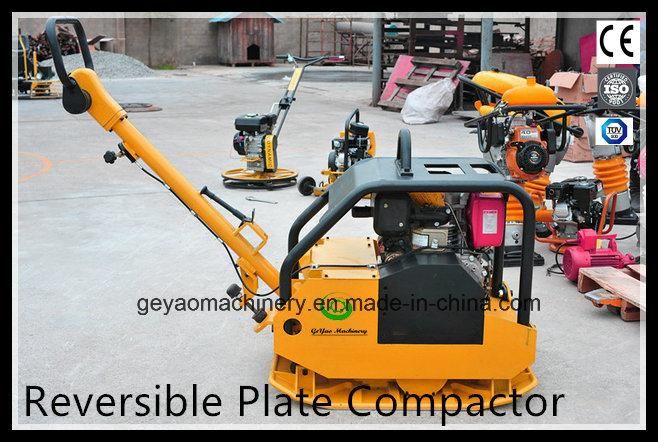

Easily Operate Reversible Plate Compactor GYP-50





Features and Advantage:
1.Handle hydraulic system for forward and reverse
2.Ductile iron base plate for durability
3.The unique design of electric start-up,ensures the quick start in severe condition.
4.Diesel power system,more powerful force,better compaction effect,low maintenance cost ad lift time.
5.lifting hook ensures easy to delivery in different job site

Specification

Model	GYP-50
Weight(kg)	360
Dimension(mm)	L965*W600*H1370
Plate Size(mm)	L600*W890
Centrifugal force(KN)	50
Working Frequency(rpm/hz)	4100/69
Forward Speed(m/min)	22
Engine Type	Air-cooled,4-cycle,gasoline
Engine Type	Honda GX390/Kipor KM186
Max Output(rpm)	9.6(13.0)/6.2(8.5)
Max Speed (rpm)	3600
Fuel tank(L)	5.5

Application Scope
Plate compactor series are made of high quality steel,artificial design,facility operation,is widely applied to municipal conservation,road construction,building construction,flooring treatment, strengthen cohesive force between particles and less friction materials.
Such as river sand,soil,gravel,asphalt surface of the whole compacting.
Ditches,concrete perimeter sidewalk all kinds of backfill compaction
Reservoir,dam slope surface solidify.

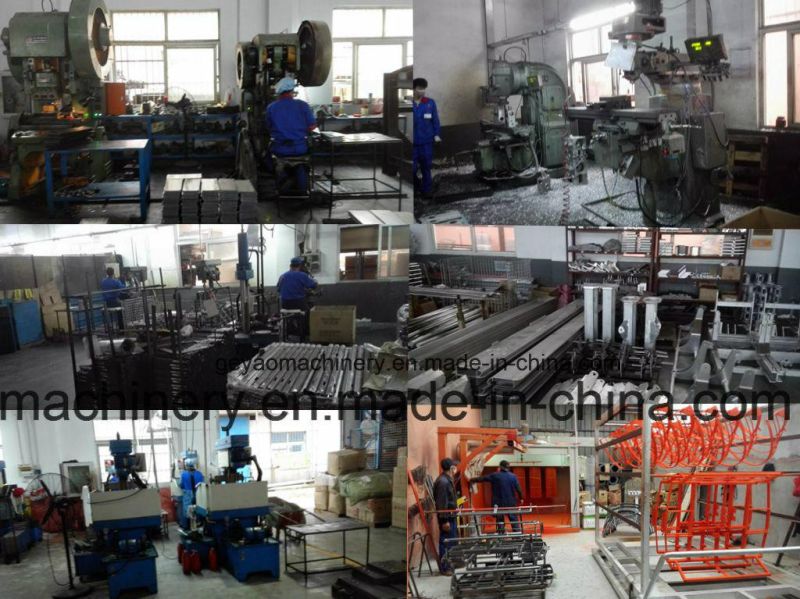

MACHINERY OPERATION PROCESSING.

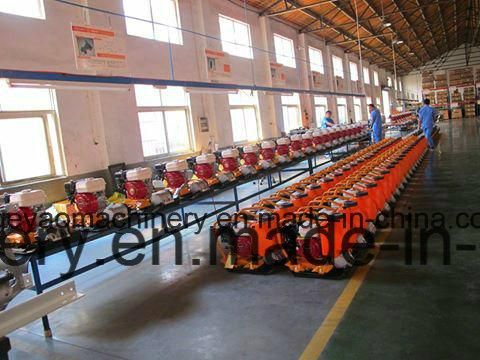

ASSEMBLING

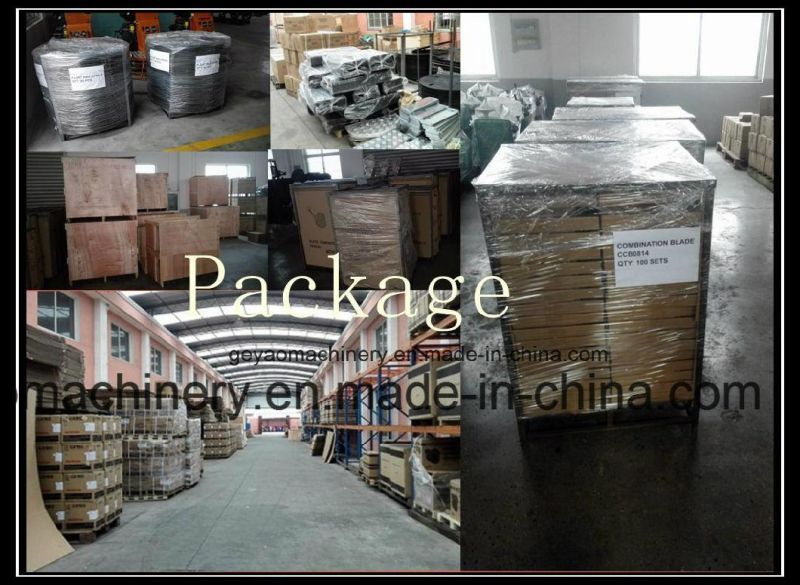

PACKAGE

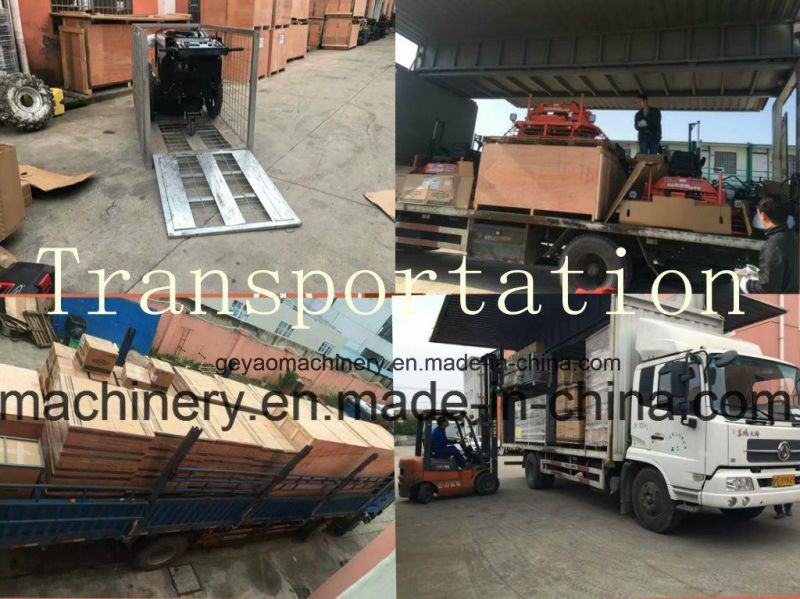

TRANSPORTATION

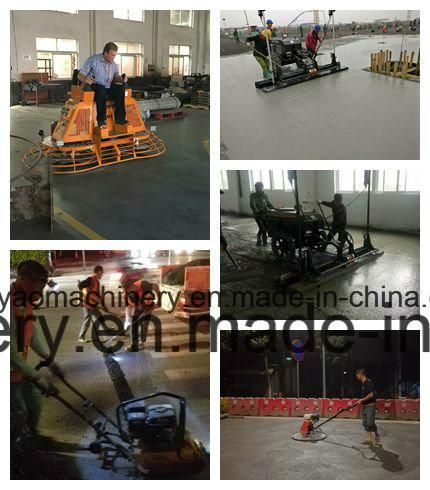

PERFORMANCE


Our Customer Service Team will make response to you promptly in 24h*7.
