• Model NO.：YTCT
• Size (L*W*H)：2793*560*710mm
• Hydraulic Oil Flow：120-180L,Min
• Blow Frequency：350-500BMP
• Chisel Diameter：140mm
• Suit Excavator：18-26ton
• Color：Any Color Could Do, Normal Yellow, Blue
• MOQ：1 Set
• Payment：Tt LC
• Transport Package：Inside with Film, Outside with Wooden Case
• Specification：box type
• Trademark：YTCT
• Origin：China
• HS Code：8412210000
• Production Capacity：50000,Year

Basic Info.

Model NO. YTCT Size (L*W*H) 2793*560*710mm Hydraulic Oil Flow 120-180L/Min Blow Frequency 350-500BMP Chisel Diameter 140mm Suit Excavator 18-26ton Color Any Color Could Do, Normal Yellow, Blue MOQ 1 Set Payment Tt LC Transport Package Inside with Film, Outside with Wooden Case Specification box type Trademark YTCT Origin China HS Code 8412210000 Production Capacity 50000/Year

Product Description

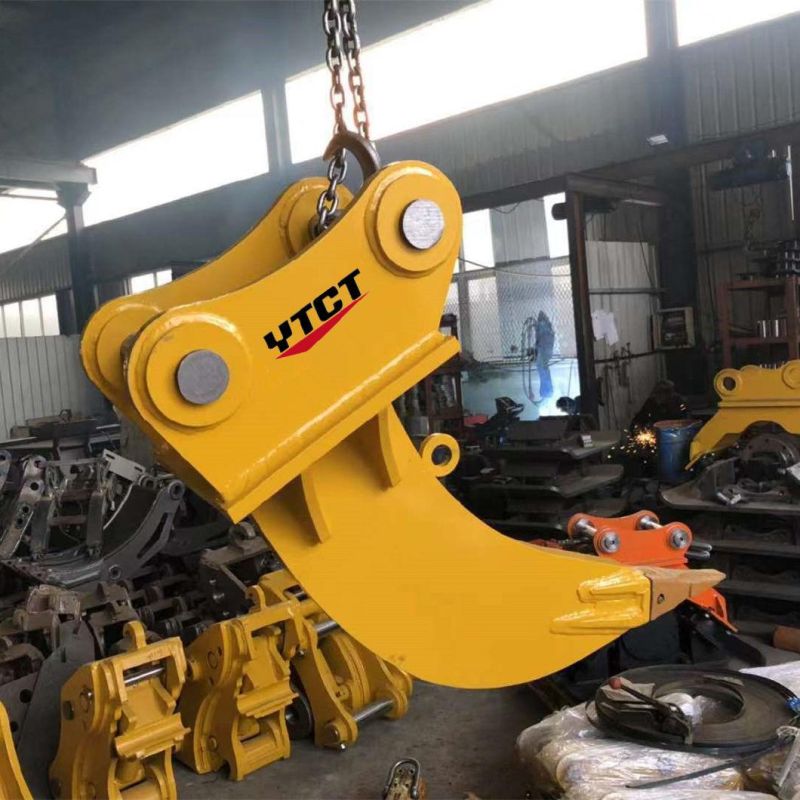

product feature:
1.made of high strength steel plate,easy to use and install.

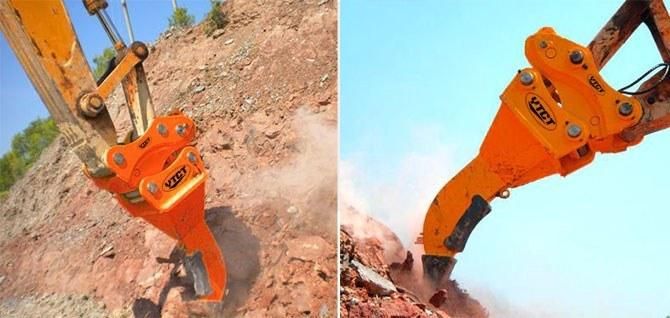

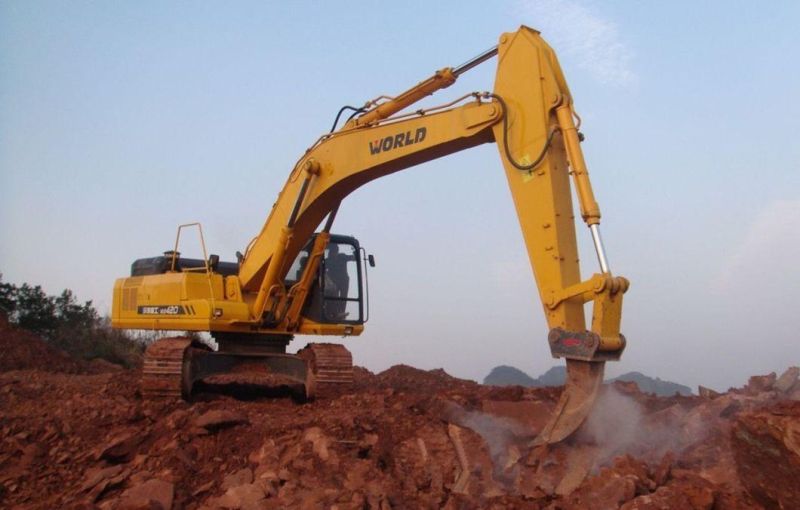

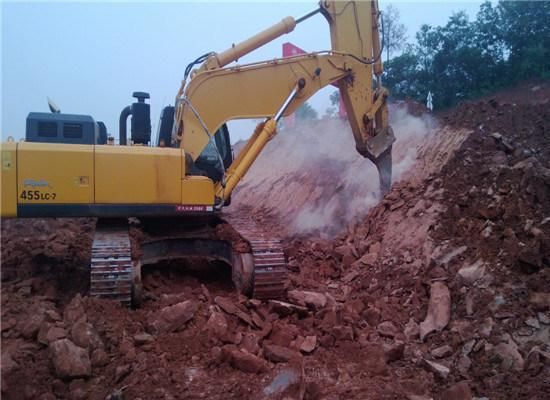

2.For crushing hard rocks,secondary solid rocks and weathered granite, easy for excavator to dig and load.

3.normally,one ripper tooth,also could customize two or three teeth,strong digging capacity.

4.. Custom service is available, single tooth and double teeth.

5. Heat treated pins.

6. Good welding technology.

7.12 months warranty, 6 months replacement.



Category	UNIT	YTCT06	YTCT08	YTCT10	YTCT17	YTCT20
A	mm	1150	1200	1450	1550	1650
B	mm	270	400	420	450	580
C	mm	550	665	735	820	980
D	mm	390	510	600	650	760
E	mm	265	335	420	470	580
F	mm	65	90	90	110	110
Weight	kg	300-400	550-650	600-700	700-850	800-1000
Carrier	ton	12--15	20-25	25-30	30-45	45-90
