2t Motor Grader Sag200c-6 with Hydraulic Pump for Sale

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Free Spare Parts
  • Warranty：1 Year
  • Certification：TUV, UL, ISO, RoHS, CE
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Hydraulic - Mechanical

Base Info

  • Model NO.：SAG200C-6
  • Walking Mode：Wheeled
  • Type：Small Grader
  • Maximum Speed：40.3km,H
  • Operating Weight：16000kg
  • Rated Power：164(Kw),2200(Rpm)
  • Engine Model：Qsb6.7-C220
  • Transport Package：Nude
  • Specification：8950*2540*3200mm
  • Trademark：Sinomada
  • Origin：China
  • HS Code：84292090
  • Production Capacity：100 Sets,Month

Description

Basic specification

Engine model

SC8D190G2B1

Rated power/speed

140kW/2300rpm

Dimension(LxWxH)

8900×2625×3470mm

Operating weight(Standard)

15400kg

Performance specification

Travelling speed ,forward

5,8,11,19,23,38 km/h

Travelling speed ,reverse

5,11,23 km/h

Tractive force(f=0.75)

79KN

Max. gradeability

20%

Tire inflation pressure

260 kPa

Working hydraulic pressure

16 MPa

Transmission pressure

1.3~1.8MPa



Blade

Maximum lift above ground

450mm

Maximum depth of cutting

500mm

Maximum blade position angle

90°

Blade cutting angle

28°-70°

Circle reversing rotation

360°

Moldboard width X height

3965×610mm

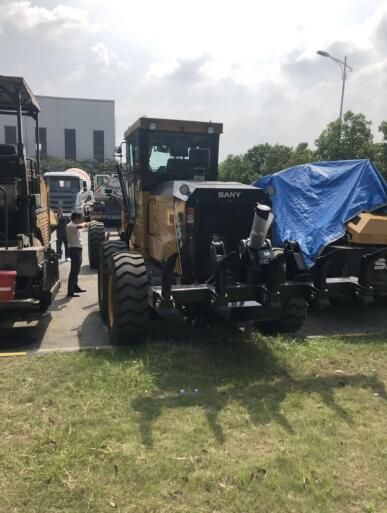

2t Motor Grader Sag200c-6 with Hydraulic Pump for Sale

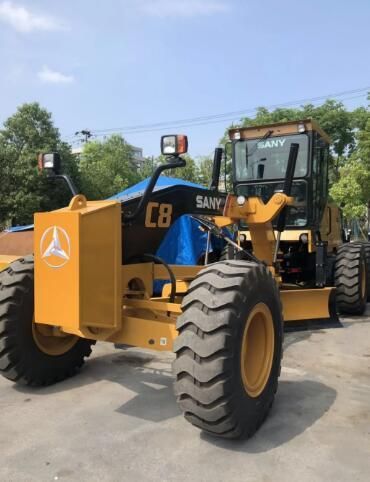

2t Motor Grader Sag200c-6 with Hydraulic Pump for Sale
