• Model NO.：LW150FV
• Load and Unload Mode：Front Discharge
• Walking Mode：Crawler
• Type：Small Loader
• Operating Weight (Kg)：4350kg
• Engine Model：Yn4a062-30cr
• Rated Power/Rated Speed (Kw)：45kw
• Bucket Capacity：0.7-1cbm
• Wheel Base(mm)：2300mm
• Max.Dumping Height(mm)：2950
• Dumping Distance(mm)：1055
• Steering Angel(°)：38
• Emission Standard：China Phase 2
• Max.Breakout Force(Kn)：28
• Gears：Forward 2 Reverse 1
• Total Time(S)：10.2
• Fuel Tank Capacity(L)：200
• Transport Package：Nude
• Specification：5890*1877*2835mm
• Origin：Shandong, China
• HS Code：8429510000
• Production Capacity：100,Month

Basic Info.

Model NO. LW150FV Load and Unload Mode Front Discharge Walking Mode Crawler Type Small Loader Operating Weight (Kg) 4350kg Engine Model Yn4a062-30cr Rated Power/Rated Speed (Kw) 45kw Bucket Capacity 0.7-1cbm Wheel Base(mm) 2300mm Max.Dumping Height(mm) 2950 Dumping Distance(mm) 1055 Steering Angel(°) 38 Emission Standard China Phase 2 Max.Breakout Force(Kn) 28 Gears Forward 2 Reverse 1 Total Time(S) 10.2 Fuel Tank Capacity(L) 200 Transport Package Nude Specification 5890*1877*2835mm Origin Shandong, China HS Code 8429510000 Production Capacity 100/Month

Product Description

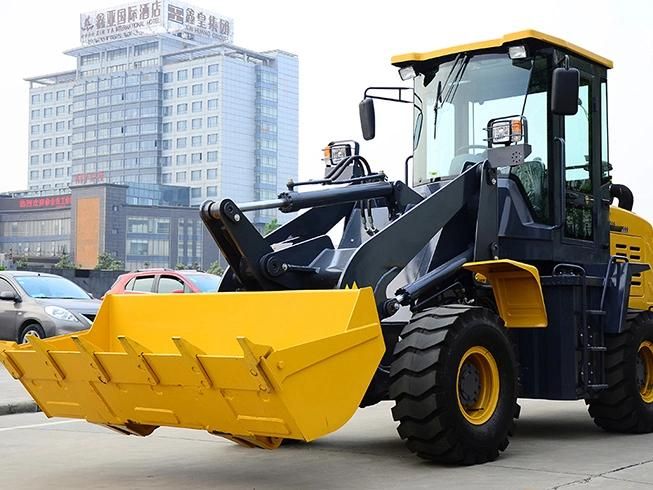

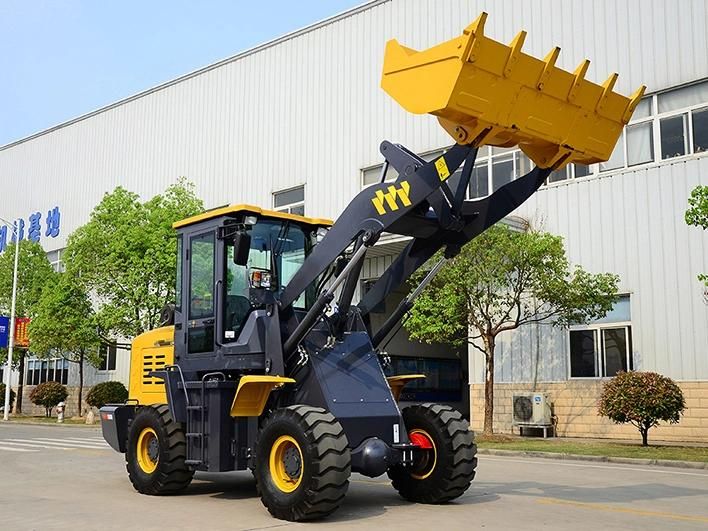

China Famous Brand Maxizm Construction Machinery 1.5Ton Mini Wheel Loader LW150FV
Product Overview

1, High energy-conservation, efficiency, reliability, and comfort.
2, All load-carrying portions of the drive axle are solid and firm enough to ensure excellent overload resistance and meet the needs of diversified high strength and high load operations.
3, As the sole low-speed engine energy-conservation product among the industry's 3t loaders, it's leading the industry's energy-conservation trend.
4, The full-view cab sufficiently takes into consideration the human-machine functions to realize high operation safety and comfort.
5, Undertaking the concept of "ground maintenance", all maintenance locations are scientifically arranged to ease the checking and maintenance.
Parameter

Description	Specification	Unit
Rated operating load	1200	Kg
Bucket capacity	0.7
Machine weight	4350	Kg
Dump clearance at maximum lift	3300	mm
Reach at maximum lift	830	mm
Wheel base	2300	mm
Tread	1500	mm
Max.breakout force	28	KN
Articulation angle	35	°
Gradeability	25	°
Tyre size	16/70-16
Overall machine dimension L*M*H	5890*1877*2835	mm
Model	YN4A062-30CR
Rated Power/Speed	45/2400	Kw/rpm
Travel Speed(I-gear F/R)	8	km/h
Travel Speed(II-gear F/R)	20.5	km/h

Photos

About  Our Company
We are a top package equipment solution provider in Qingdao China, especially for construction machinery, heavy industrial equipment and vehicle. We represent our own Maxizm brand machinery and high quality China machinery brands such as We are a top package equipment solution provider in Qingdao China, especially for construction machinery, heavy industrial equipment and vehicle. We represent our own Maxizm brand machinery and high quality China machinery brands such as .SANY, ZOOMLION,SEM, SDLG, SHANTU, etc.
