• Model NO.：lg938
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Engine：Sida
• Axle：Awd, Big Hub Reduction Gear
• Steering：3-Layer Articulation Steering
• Attachment：Kinds of Attachments
• OEM：Available
• Operating Weigh：4500kg
• Bucket Capactiry：1.0cbm
• Bucket Width：2000mm
• Max Dumping Height：3500mm
• Max Dumping Distance：700mm
• Turning Radius：4500mm
• Engine Model：Power-Hf 4102 Turbo
• Rated Power：76kw
• Gearbox：Atutomatic 265 Split
• Tyre Size：16,70-20
• Transport Package：Container
• Specification：6000x2050x2950mm
• Trademark：LUGONG
• Origin：China
• HS Code：84295100
• Production Capacity：40000 Sets,Year

Basic Info.

Model NO. lg938 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Engine Sida Axle Awd, Big Hub Reduction Gear Steering 3-Layer Articulation Steering Attachment Kinds of Attachments OEM Available Operating Weigh 4500kg Bucket Capactiry 1.0cbm Bucket Width 2000mm Max Dumping Height 3500mm Max Dumping Distance 700mm Turning Radius 4500mm Engine Model Power-Hf 4102 Turbo Rated Power 76kw Gearbox Atutomatic 265 Split Tyre Size 16/70-20 Transport Package Container Specification 6000x2050x2950mm Trademark LUGONG Origin China HS Code 84295100 Production Capacity 40000 Sets/Year

Product Description

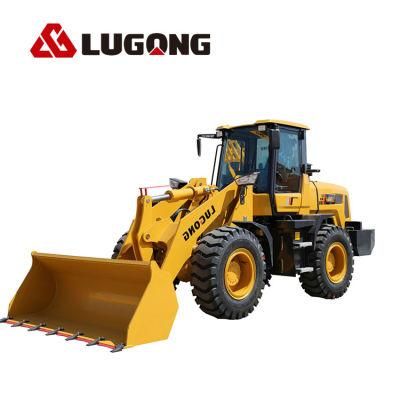

Micro LG938 4102T engine upgreated loaders with grapple with folk


Advantages of LG938
1. Engine
*High performance engine from YUCHAI, SIDA,WEICHAI-HF;
*Best match for compact loader base on 20 years experience
*CUMMINS, DEUTZ, YUNNEI brands for optional.

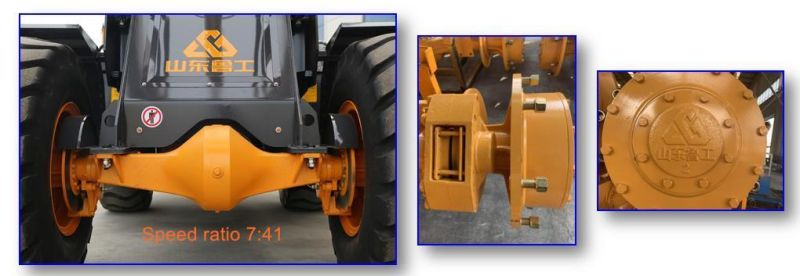

2. Axle
*Patented Axle with special design big hub reduction gear;
*Casting process, 200kgs heavier than other brands;
*Large torque, low fuel consumption, low failure rate, more powerful and durable.

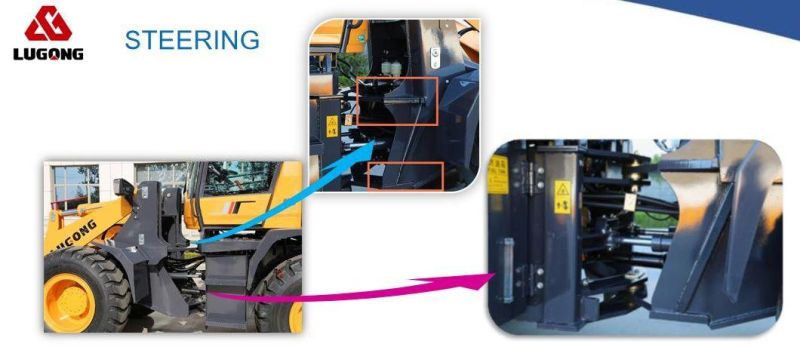

3. Steering
*Three-layer articulation steering design uniform stress, prevent deformation;
*Lengthened and widened hinge plate wedge in column get better chassis strength, more durability;
*Trajectory coincidence technology reduce engine load and tire wear, get small turning circle and more flexible operation.

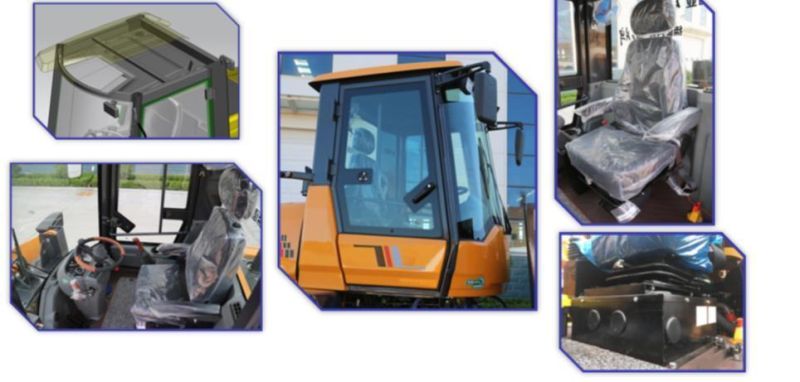

4. Cab
*Exclusively design, welded by high strength rectangular plate. Strong structure provides reliable protection for driver;
*More cab space and curved front windshield bring better driving vision;
*Air-damping luxury aviation seat filled car sponge reduce fatigue of long time driving;
*Optional high quality air conditioner improve driving comfort.

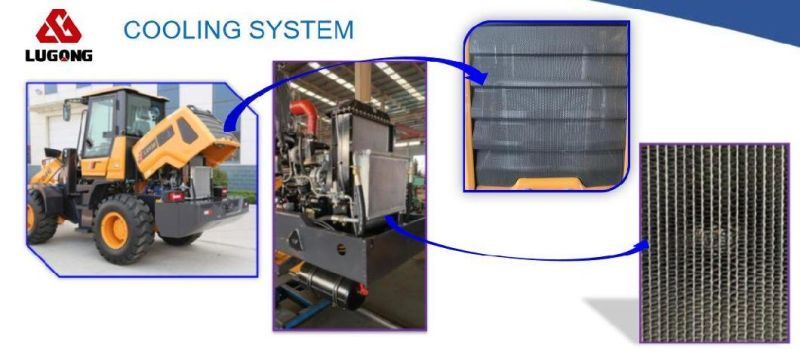

5. Cooling System
*High level water tank, Large hole grid with 32mm double-row radiating pipe increase radiation effect and not be blocked;
*Tank temperature not exceed 80ºC even continuous working 20 hours at surface temperature 50ºC.

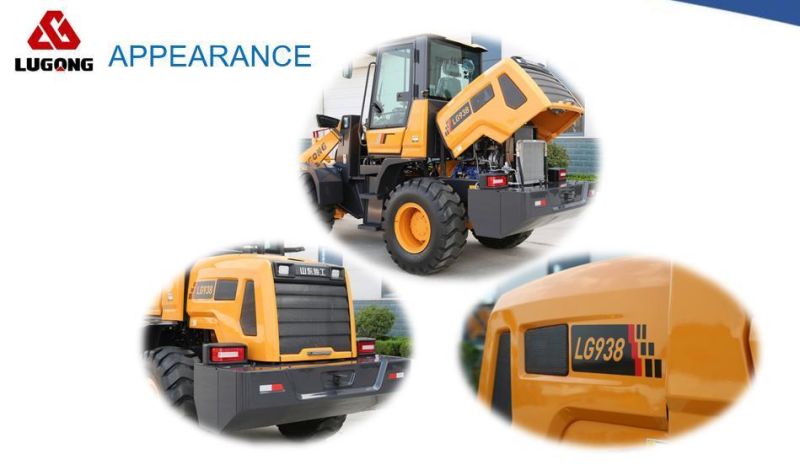

6.Appearance
*Drawing stamping sheet metal gets high structural strength;
*Arc design brings good visual effect;
*Electro-coating ensures excellent anti-corrosion property.

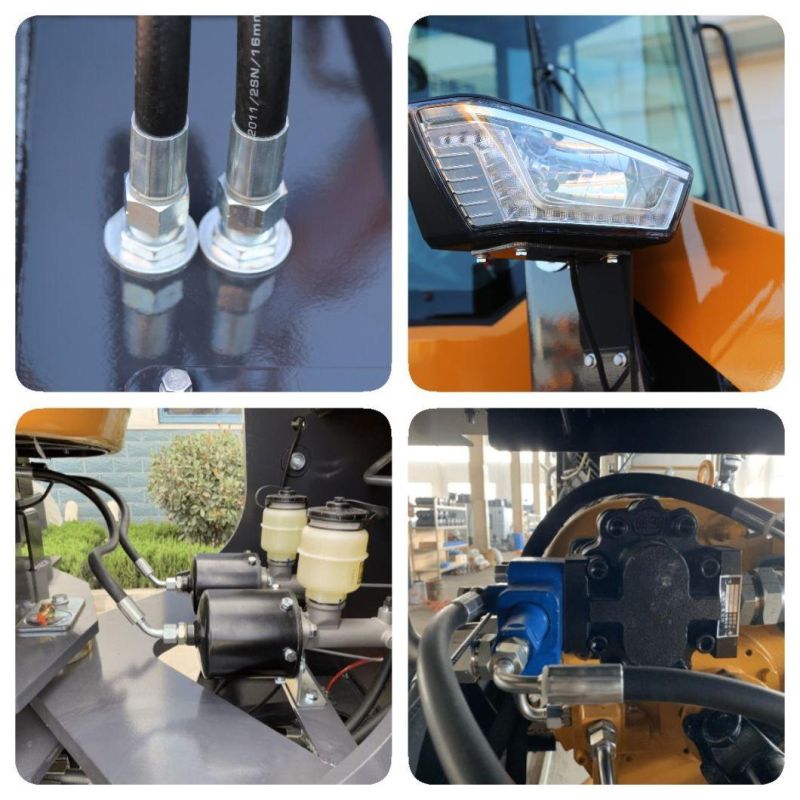

7. More Detail
*Separate design of front and rear brake pumps avoid brake failure;
*Integrated design of pump and valve, cancel flexile hose, increase steering performance and safety;
*H type joint with two sealing ring ensure lifelong no leakage.
*New LED lights bring better brightness and longer life;
*Pickling and phosphating treated oil tank avoid block in hydraulic system;
*Fast joint on air cylinder for blowing dust gun, inflation and grease gun;
*Muffler covered with heat resistant material avoid body scalding and components ageing;
*Shanghai "Steel" brand 18PR Nylon tire.

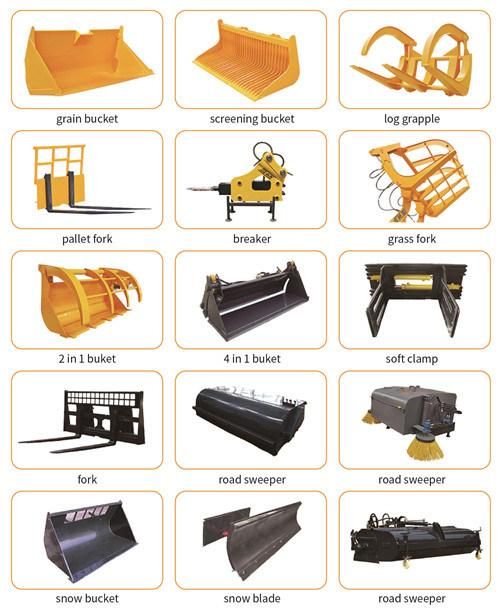

Optional Attachments

Basic Specs

Rated Load	2000kgs	Engine Model	Power 4102 Turbo
Standard Bucket	1.0m3	Gross Power	76KW
Operating Weight	4500kgs	Torque Converter	Hydraulic
Max. Dumping Height	3500mm	Transmission Box	CVT AWD 280 Split type
Turning Radius	4500mm	Axle	2.0T Big hub reduction gear
Tyre	16/70-20	Service Brake	Dual Air Hydraulic Disc

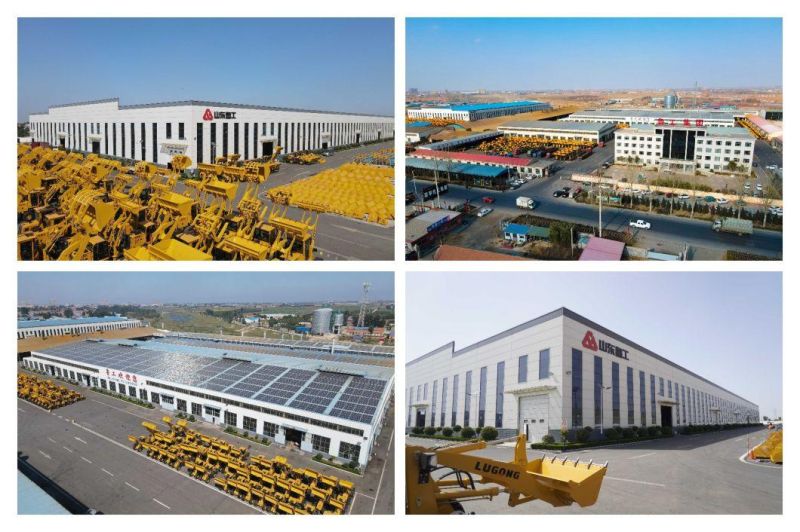

 Company Profile
*First-rate manufacturer of Compact Wheel Loader;
*Founded in 2000. Land 200,000 Sq. meters;
*Employee more than 1100;
*Sales more than 40,000 Loaders in 2020.

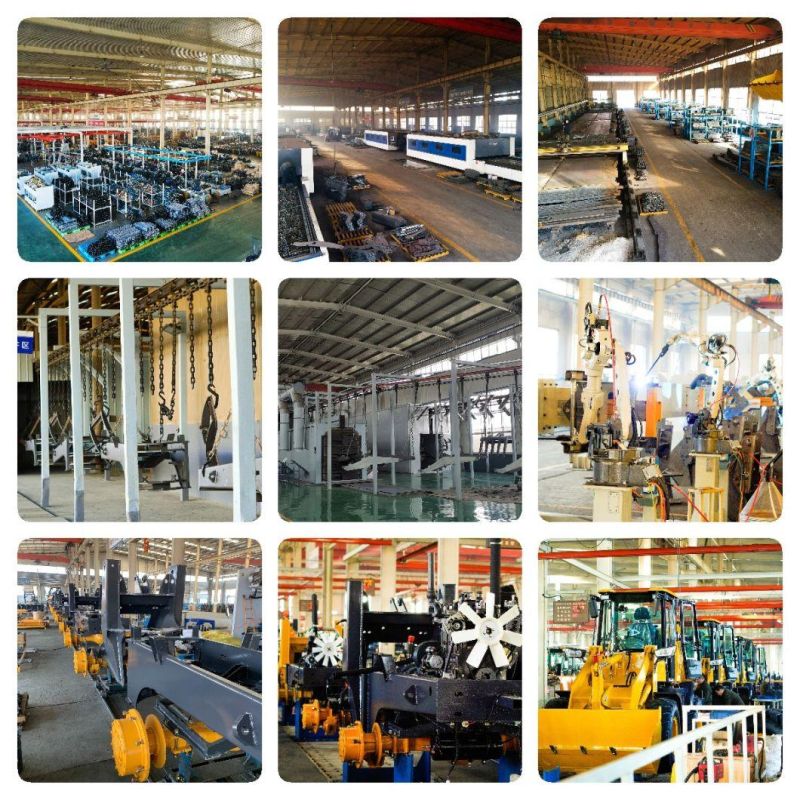

 Production Process
 Overseas Exhibition
 Market Distribution
LUGONG has a domestic network of hundreds of dealers in over 30 provinces.Globally, LUGONG products have been hot-selling in dozens of countries and regions-South Asia, Middle East, Russia, Africa, South America and so on.And LUGONG is continuing to expand the dealer network all over the world.We are going to improve the service quality of dealers and bring best quality products to customers abidingly.
