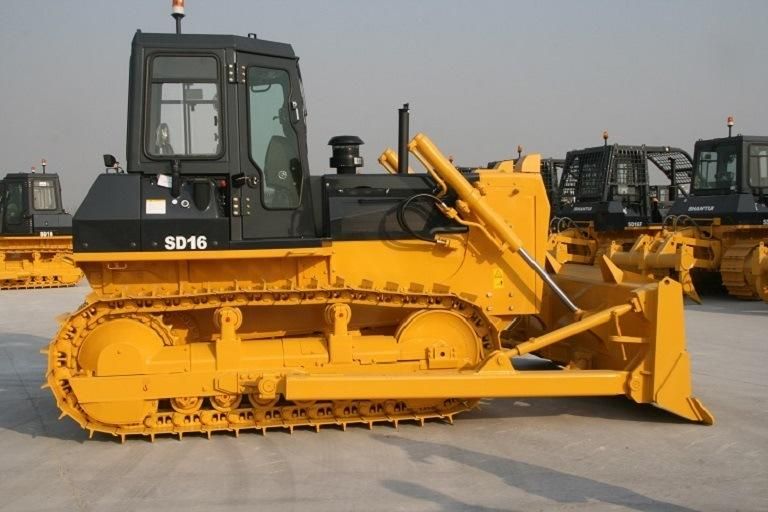

• Model NO.：SD16
• Engine Power：74~147kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Ground Pressure(MPa)：0.072
• Min.Turning Radius(M)：4.466
• Gradeablity (°)：30
• Engine Model：Weichaiwp10g178e355, Shangcaisc11CB184G2b1
• Rated Horsepower(Kw)：120 Kw
• Forward(Km/H)：1st 0-3.29 2ND 0-5.82 3rd 0-9.63
• Reverse(Km/H)：1st 0-4.28 2ND 0-7.59 3rd 0-12.53
• Width of Track Shoes(mm)：510
• Max. Pressure(MPa)：14
• Dozing Capacity (M³)：4.5
• Blade Height(mm)：1149
• Max.Drop Below Ground(mm)：540
• Max. Digging Depth(mm)：572
• Transport Package：Nude
• Specification：5262*4150*3074 mm
• Trademark：Shantui
• Origin：Shandong, China
• HS Code：8429119000
• Production Capacity：10000 Unit,Year

Ground pressure(Mpa)0.072Min.turning radius(m)4.466Gradeablity (°)30Engine Model WeichaiWP10G178E355
ShangcaiSC11CB184G2B1Rated horsepower(Kw)120Torque ConverterTorque converter  3-element 1stage 1phase TransmissionPlanetary gear ,multi disc clutch hydraulically connected forced lubuication Forward(km/h)1st 0-3.29   2nd 0-5.82  3rd 0-9.63Reverse(km/h)1st 0-4.28   2nd 0-7.59  3rd 0-12.53Carrier rollers2each side Track rollers6each side Track typeAssembled single -grouserWidth of track shoes(mm)510Max. pressure(MPa)14Dozing capacity (m³)4.5Blade height(mm)1149Max.drop below ground(mm)540Ripper type 3-shank ripper Max. digging depth(mm)572Overall dimensions(mm)5262*4150*3074



[Product Strengths]

1. Weichai WD10G178E355 features the advantages of robust power, easy maintenance, and high combustion efficiency and conformed to China-III emission regulation.

2. The planetary power shift transmission with forced lubrication and the hydraulically assisted steering system achieve light operations of the machine and feature high transmission power and high productivity.

3.Ternary single-stage and single-phase hydraulic converter torque features a simple structure, which improves the machines' auto-adaption. It can stably transmits the power to driving system, which can effectively protect the driving system and improve the stability and comfort when operating the bulldozers under complicated working conditions.

4. The swing type balance beam suspension structure with splayed beam is connected with the frame and traveling system to transmit the working load and impact load to the main frame during working, which effectively protect the machine.

5. Hexahedral cab provides the operator with spacious and broad visual field. Its outstanding sealed structure effectively can prevent the dust and noise, which can provide roomy comfort with high-power A/C.


[Applicable Working Conditions]
Bulldozing, digging, landfill, and other bulk operations.

[Current sales conditions]
As one of the most popular Shantui products, this bulldozer has been sold all over the world.

[Why choose us]










MAXIZM, as a professional one-stop machinery equipment supplier, we always keep the service philosophy " Running On Faith, Keep Promise, Devote To Customer Concerns, Walk To Success With Customer ", devote ourselves to what customer needs, and provide products and service with high performance and good price.

Please let us know the main use, brand, power and other requirements of the purchased products.
