Shantui Construction Machine 25 Ton Single Drum Road Roller Sr26m-3
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Tire Grind
Base Info
- Model NO.：SR26M-3
- Compaction Depth：40cm
- Engine Type：Diesel Engine
- Travel Speed：2.8-9km,H
- Centrifugal Force：82,40
- Certification：CE, ISO 9001:2000
- Condition：New
- Operating Weight (Kg)：26000 Road Roller
- Exciting Force (Kn)：435,315
- Vibration Frequency (Hz)：29,35
- Ground Pressure (Kpa)：200-460
- Gradeability (%)：40
- Engine Model：Wp6
- Rated Power/Rated Speed (Kw/Rpm)：140,1800
- Wheelbase (mm)：1760
- Fuel Tank (L)：375
- Compacting Width(mm)：2170
- Transport Package：Container,RO-RO
- Specification：6442*2432*3314 mm
- Trademark：SHANTUI
- Origin：China
- HS Code：8429401900
- Production Capacity：100units,Month
Description
Basic Info.
Model NO. SR26M-3 Compaction Depth 40cm Engine Type Diesel Engine Travel Speed 2.8-9km/H Centrifugal Force 82/40 Certification CE, ISO 9001:2000 Condition New Operating Weight (Kg) 26000 Road Roller Exciting Force (Kn) 435/315 Vibration Frequency (Hz) 29/35 Ground Pressure (Kpa) 200-460 Gradeability (%) 40 Engine Model Wp6 Rated Power/Rated Speed (Kw/Rpm) 140/1800 Wheelbase (mm) 1760 Fuel Tank (L) 375 Compacting Width(mm) 2170 Transport Package Container/RO-RO Specification 6442*2432*3314 mm Trademark SHANTUI Origin China HS Code 8429401900 Production Capacity 100units/MonthProduct Description

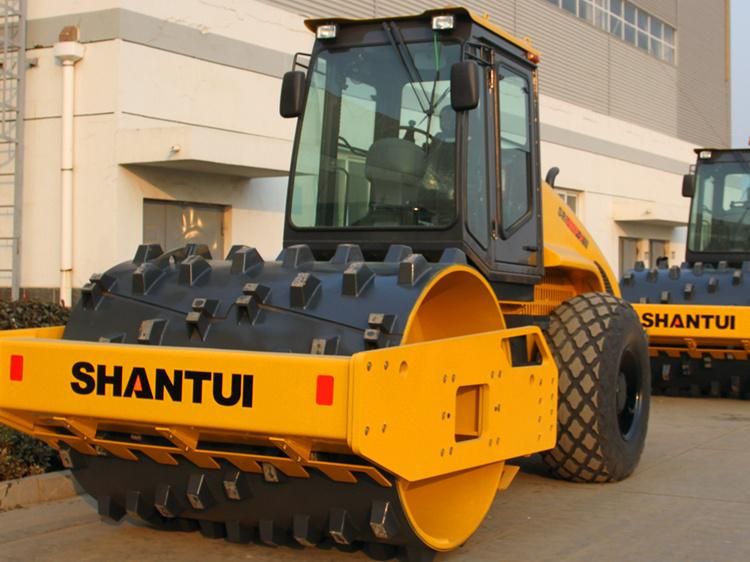

SHANTUI Construction Machine 25 Ton Single Drum Road Roller SR26M-3
Product discription
The proprietary match technology can achieve high operating efficiency and reasonable fuel economy and reduce the composite fuel consumption by 8%~10%.
The core electric and hydraulic parts of imported brands guarantee high quality and reliability and reduce the malfunction downtime.
High value maintenance.
PARAMETER
| Parameter name | SR26M-3 (Standard version) |
| Performance parameters | |
| Operating weight (Kg) | 26000 |
| Exciting force (KN) | 435/315 |
| Vibration frequency (Hz) | 29/35 |
| Nominal amplitude (mm) | - |
| Ground pressure (KPa) | - |
| Gradeability (%) | - |
| Engine | |
| Engine model | WP6 |
| Rated power/rated speed (kW/rpm) | 140/1800 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 6442*2432*3314 |
| Driving performance | |
| Forward speed (km/h) | 2.8/5.5/9.0 |
| Reversing speed (km/h) | 2.8/5.5/9.0 |
| Chassis System | |
| Wheelbase (mm) | - |
| Tank capacity | |
| Fuel tank (L) | 375 |
| Working device | |
| Compacting width(mm) | 2170 |
