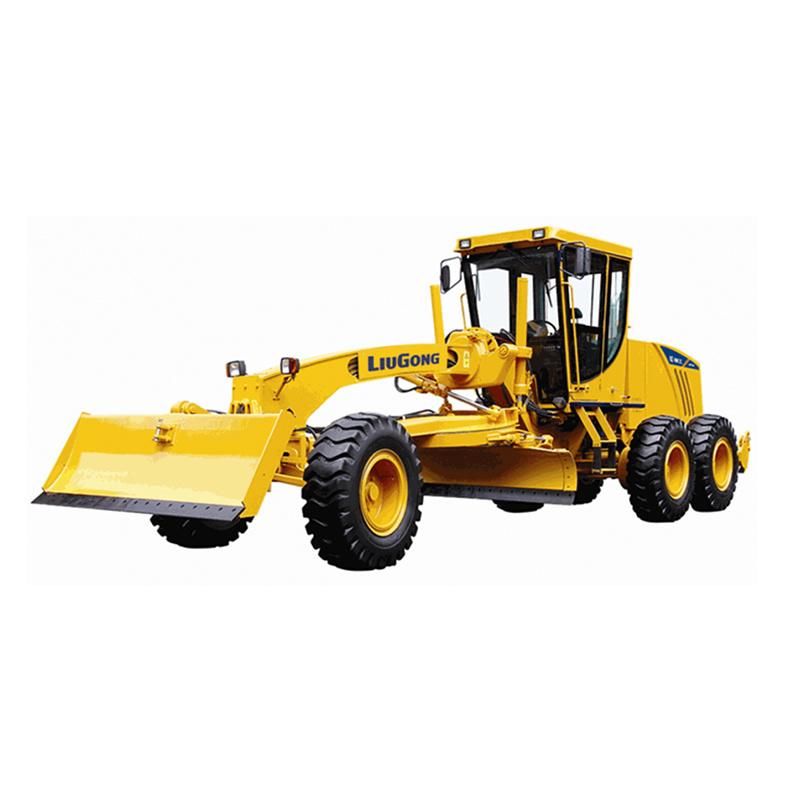

Hot Sale! 15.5ton Motor Grader Liugong Clg4180 with 6bt5.9 Engine
Evangel Industrial (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic
- Walking Mode：Wheeled
- Type：Medium-sized Grader
Base Info
- Model NO.：CLG4180
- Transport Package：Nude Package
- Specification：8790*2600*3438mm
- Trademark：liugong
- Origin：China
- Production Capacity：100sets,Month
Description
Basic specification
Engine model
6BT5.9
Rated power/speed
100/2200kw/rpm
Dimension(LxWxH)
8015×2380×3050mm
Operating weight(Standard)
11200kg
Performance specification
Traveling speed, forward
5,8,13,20,30,42km/h
Traveling speed, reverse
5,13,30km/h
Tractive force(f=0.75)
61.3KN
Max. grade ability
30%
Tire inflation pressure
300kPa
Working hydraulic pressure
16MPa
Transmission pressure
1.3~1.8MPa
Operating specification
Max. steering angle of front wheels
±49°
Max. lean angle of front wheels
±17°
Max. oscillation angle of front axle
±15°
Max. oscillation angle of balance box
16
Frame articulation angle
±27°
Min. turning radius using articulation
6.6m
Blade
Maximum lift above ground
410mm
Maximum depth of cutting
515mm
Maximum blade position angle
90°
Blade cutting angle
54°-90°
Circle reversing rotation
360°
Moldboard width X height
3710×610mm
