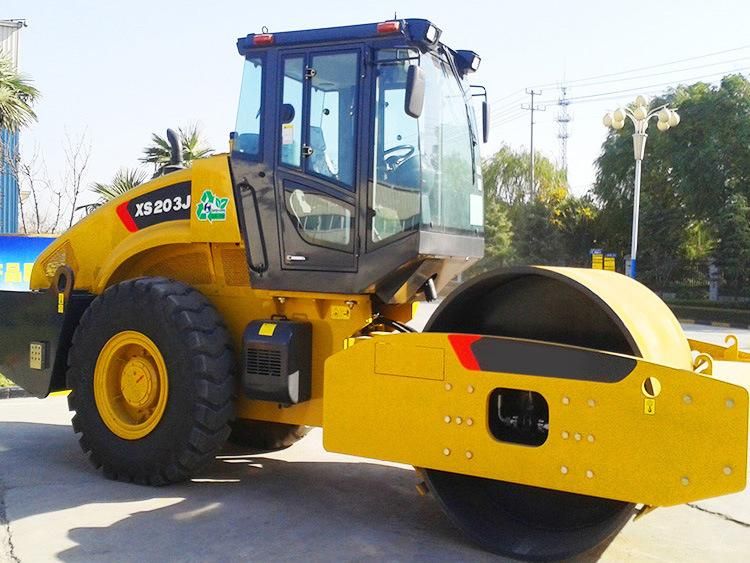

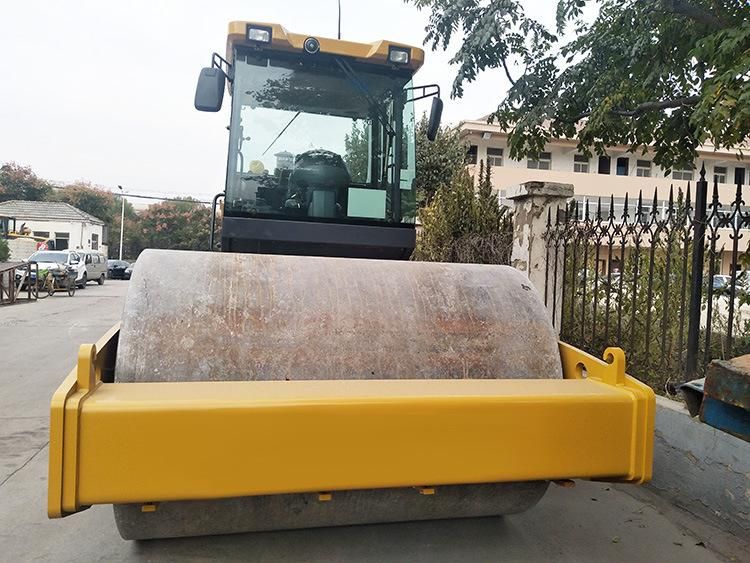

Xs203j 20 Ton Single Drum Vibratory Road Roller Compactor
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year
- Type：Road Roller
- Working Method：Vibration
- Axle：Uniaxial Monowheel
- Grinding Wheel Type：Tire Grind
Base Info
- Model NO.：XS203J
- Compaction Depth：35cm
- Engine Type：Diesel Engine
- Travel Speed：2-11km,H
- Centrifugal Force：353,245kn
- Certification：CE, ISO 9001:2000
- Condition：New
- Service Mass：20000kg
- Static Line Load：470n,Cm
- Vibration Frequency：28,33Hz
- Compaction Width：2130mm
- Transport Package：Roro,Container,Bulk
- Specification：6220*2300*3200mm
- Trademark：SINOMADA
- Origin：China
- HS Code：84295100
- Production Capacity：100 Units, Month
Description
Product DescriptionModel Unit XS203J Operating weight kg 20000 Load applied on front drum kg 10000 Static linear pressure N/cm 470 Speed range km/h Gear I 2.95 Gear II 5.78 Gear III 9.4 Theoretical gradeability % 30 Min. external turning radius mm 6500 Steering angle ° ±30 Oscillating angle ° ±11 Vibration frequency Hz 33/28 Nominal amplitude (high/low) mm 1.9/0.95 Exciting force (high/low amplitude) kN 353/245 Drum width mm 2130 Drum Diemeter mm 1600 Engine model Shaihai Diesel Engine SC8D175.2G2B1 Max. power kW 128@1800r/min Engine oil consumption g/kW.h 205 Hydraulic oil tank capacity L 170 Fuel tank capacity L 310
