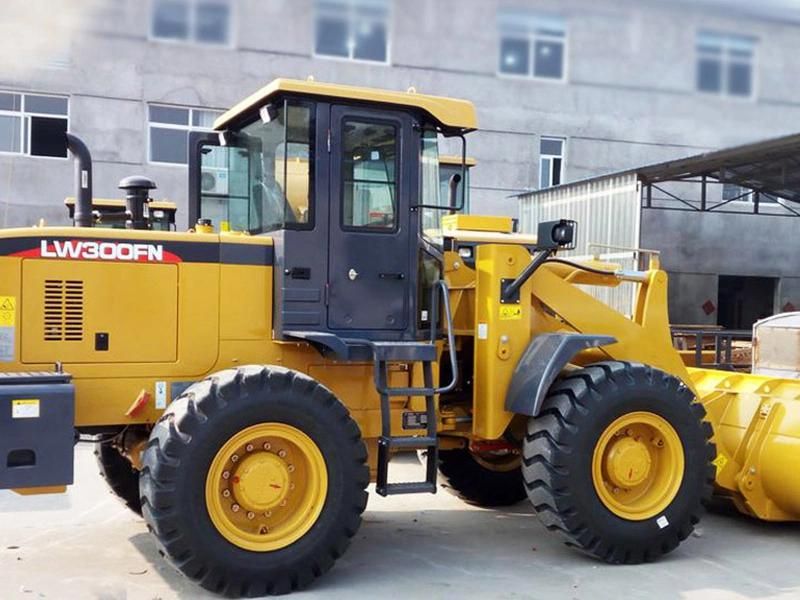

• Model NO.：LW300FN
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Power：92kw
• Rated Operating Load：3000kg
• Wheel Base：2600mm
• Tread：1850mm
• Min. Turning Radius Over Tyres：10mm
• Specification：7050*2482*3118mm
• Origin：China
• HS Code：8501109190
• Production Capacity：200

ItemSpecificationUnitRated operating load3000kgBucket capacity1.5~2.5m³Machine weight10600±200kgDump clearance at maximum lift2770~3260mmReach at maximum lift1010~1210mmWheel base2600mmTread1850mmHeight of hinge at maximum lift height3830mmWorking height(fully lifted)4870mmMax.breakout force130kNMax.horse power95kNHydraulic cycle time-raise5.5sTotal hydraulic cycle time10sMin. turning radius over tyres5165mmArticulation angle35±1°Gradeability28°Tyre size17.5-25-12PR Overall machine dimension L×W×H7050×2482×3118 ModelWP6G125E22 Emission standardsEmission 2 Rated Power/Speed92/2300kW/rpmFuel Tank170LHydraulic Tank170L I-gear(F/R)8/10km/h II-gear(F/R)13/30km/hTravel speedIII-gear(F)24/-km/h IV-gear(F)40/-km/hProuuct Information
