• Model NO.：JM206H
• Certification：CE, ISO 9001:2000
• Condition：New
• Operating Weight：6000kg
• Rolling Width：1520mm
• Vibrating/ Amplitude：0.46mm
• Engine Power：62kw
• Vibration Frequency：50Hz
• Tire Size：10.5,80-16 ( Smooth Tread )
• Transport Package：Nude Packaging
• Specification：3370*1670*2580mm
• Trademark：SINOHENG
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：800 Sets,Month

Basic Info.

Model NO. JM206H Certification CE, ISO 9001:2000 Condition New Operating Weight 6000kg Rolling Width 1520mm Vibrating/ Amplitude 0.46mm Engine Power 62kw Vibration Frequency 50Hz Tire Size 10.5/80-16 ( Smooth Tread ) Transport Package Nude Packaging Specification 3370*1670*2580mm Trademark SINOHENG Origin Jiangsu, China HS Code 84294019 Production Capacity 800 Sets/Month

Product Description

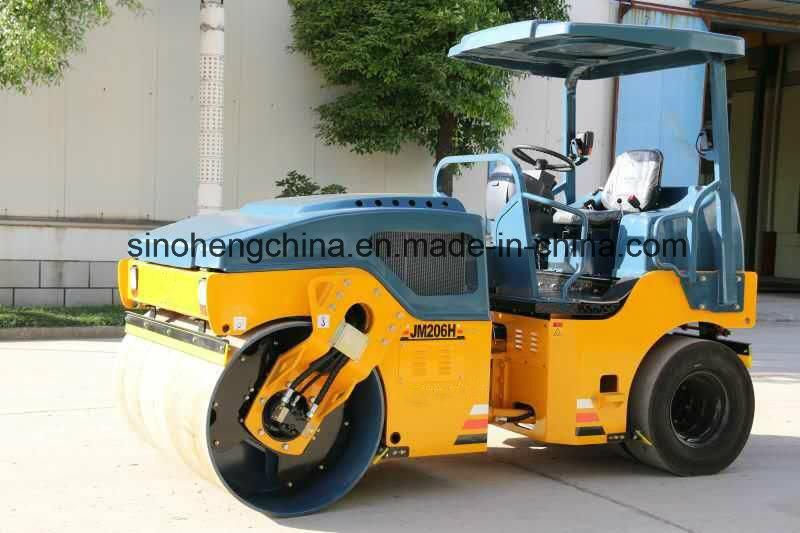

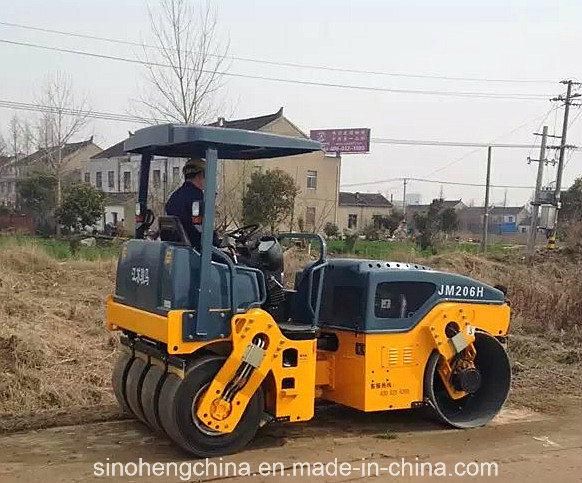

JM206H Full Hydraulic Combined Vibratory Roller 6000kg

Applications

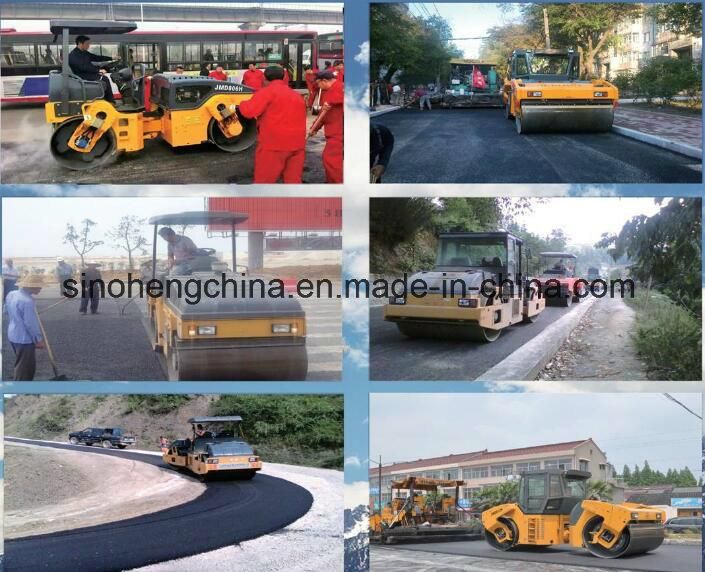

Compacting and repairing the general road base and asphalt pavement, highway, city road, inter-city and country road, other projects, and etc.

Main features

1. Drive system adopts the international reputed brand imported hydraulic components.
2. Hydraulic double drum drive, two-speed stepless change gear. Front-drum hydraulic vibration, electric control delay, hydraulic steering and easy to operate.
3. Rear rubber-wheel driven by high torque motor with two low speed, with differential function, easy to steer, long working life, meanwhile the machine equip the differential self-locking mechanism, to prevent slip.
4. Good sealing performance in machine owes to the compact effect of smooth rubber wheel.
5. Special fork support design, good vision, streamlined design, nice appearance;
6. Double canopy design, good heat-insulation, wide vision;
7. The front cover can be turned up in a big angel for easily maintenance;

Two sets of separate electric control pressurized sprinkler system, anti-corrosive sprinkler tank and system.
Technical Data

Operating weight	6000	kg
Rolling width	1520	mm
Vibrating frequency/ Vibrating frequency/ Vibrating Oscillatory frequency	50	Hz
Vibrating/ amplitude	0.46	mm
Centrifugal force	58	kN
Tire size	10.5/80-16	(smooth tread)
Engine model	4L88
Engine power	62kw
Overall dimension	3370x1670x2580	mm

Good Quality , Excellent Service , Low Price and High Performance !
If you have interest in our machines , please feel free send your inquiry for us , we will give you our reply at our first time within 24 hours !
