• Model NO.：HB37K
• Vibrating Amplitude：2.6mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Concrete Pumping Pressure：8MPa
• Weight：24500kg
• Transport Package：Roro,Nude,Container
• Specification：12000*2500*3900mm
• Origin：China
• HS Code：8705909100
• Production Capacity：50units,Month

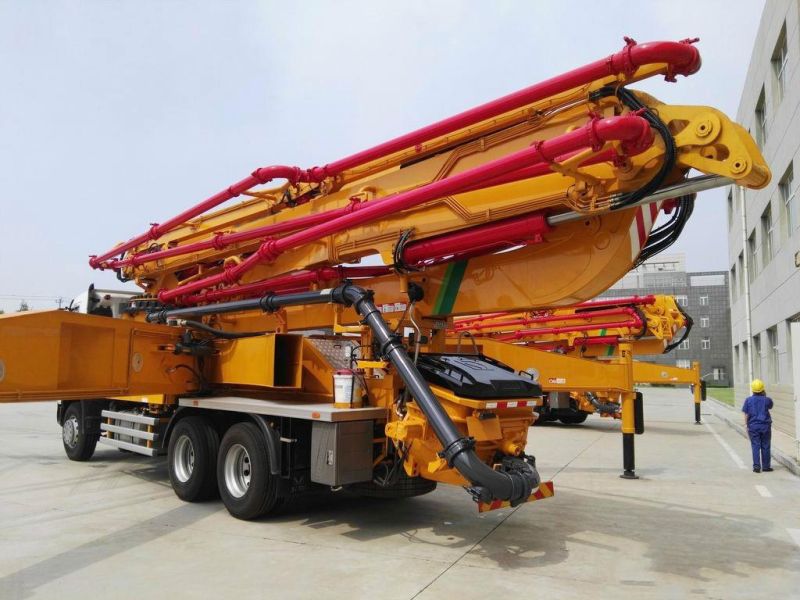

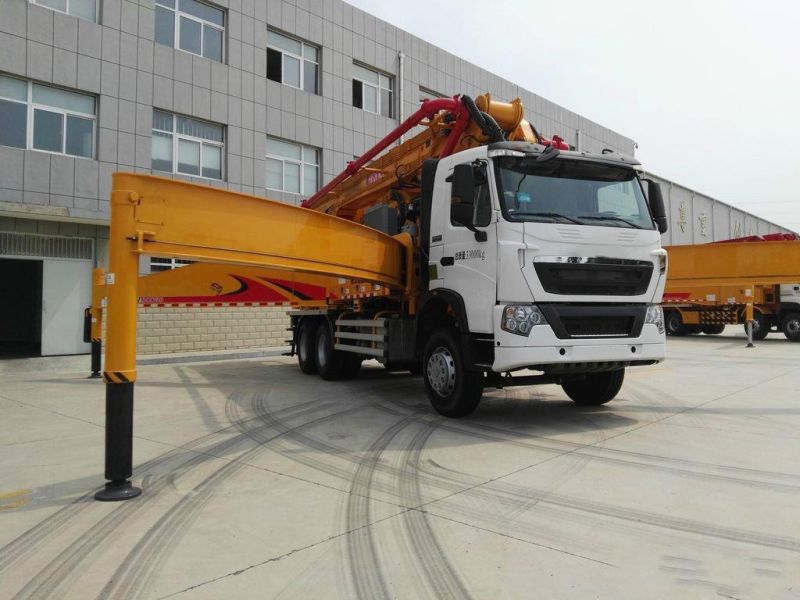

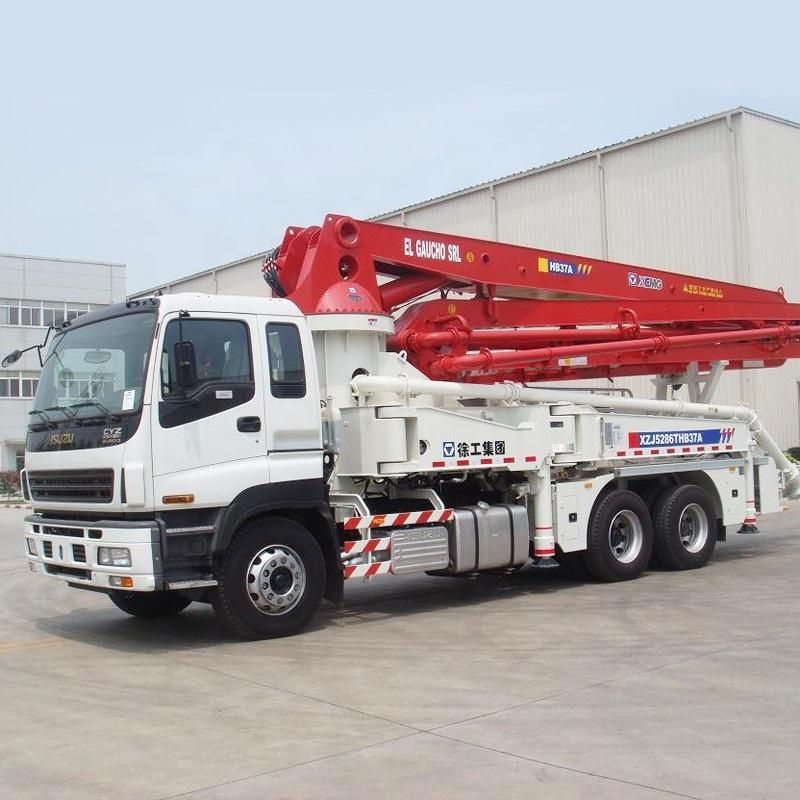

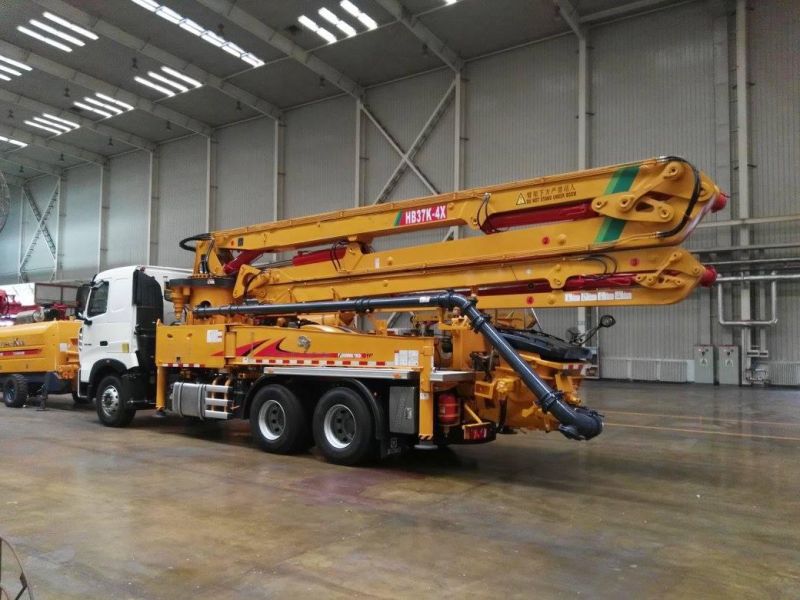

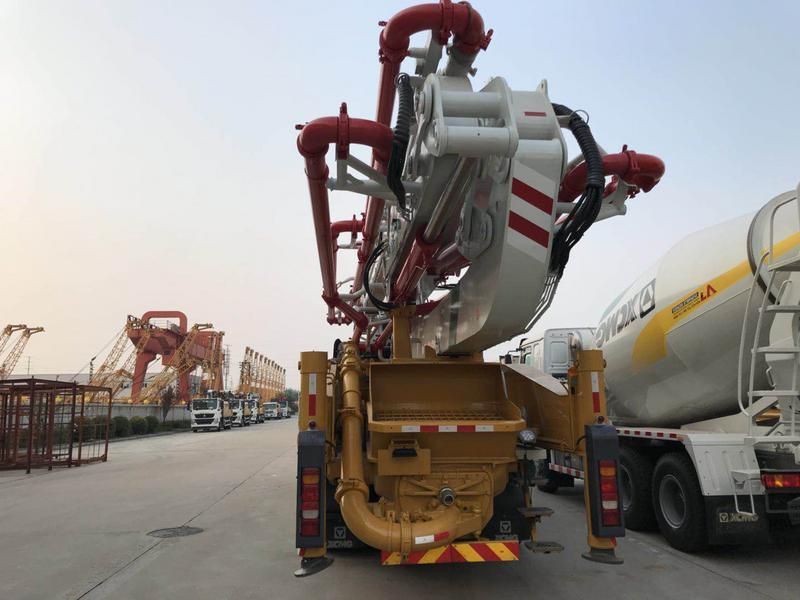

Product Parameters DescriptionUnitParameter valueOutline dimensionmm12000×2500×3900Overall weightkg24500ChassisModel ZZ5307N4647CMax. speedkm/h90Max. grade-ability%40Wheelbasemm4600+1350Tire 11.00R22.5EngineModel WD615.96Max. powerkW279Max. torqueN·m/(r/min)1590/1100~1600DisplacementL9.276Emission standard Eruo IIIPumping systemTheoretical outputm3/h130Concrete pumping pressureMPa8Theoretical pumping timesTime/min24~27Delivery cylinder diameter ×strokemmφ230×2000Max. diameter of pumping concretemm40Filling heightmm1580Concrete slump rangecm8~23Placing boomReach heightm29.6Reach depthm18Slewingradiusm36.5Slewing angle°±270Unfolding angle of the 1st section°90Unfolding angle of the 2nd section°180Unfolding angle of the 3rd section°245Unfolding angle of the 4th section°235Stabilizer spanLongitudinal span of stabilizermm6421Transverse span of front stabilizermm5430Transverse span of rear stabilizermm7381OthersLubrication method Automatic lubricationControl method Manual/remote controlVolume of water boxL600 Detailed Photos
