• Hose Size：19mm(3,4 Inch)
• Shank Specifications：1*4-1,4 25*108mm
• Transport Package：Wood Package
• Specification：CE, SGS, ISO: 9001
• Trademark：prodrill
• Origin：China
• HS Code：8467890
• Production Capacity：5000PCS,Months

Basic Info.

Hose Size 19mm(3/4 Inch) Shank Specifications 1*4-1/4 25*108mm Transport Package Wood Package Specification CE, SGS, ISO: 9001 Trademark prodrill Origin China HS Code 8467890 Production Capacity 5000PCS/Months

Product Description

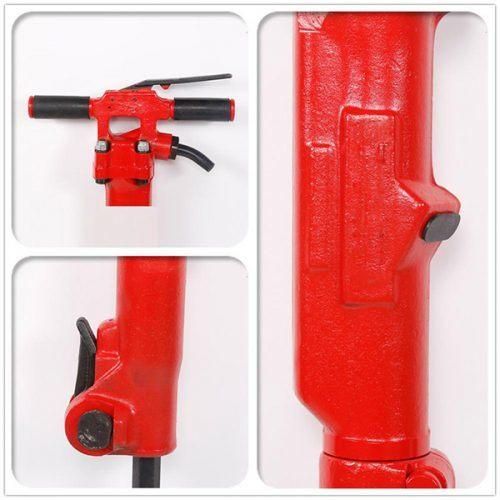

Tpb90 Pneumatic Paving Breaker for Stone Demolition

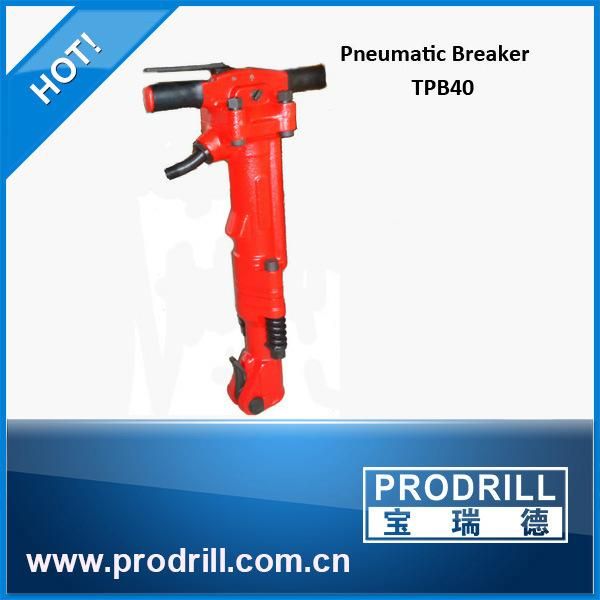

TPB 40/60/90 Pneumatic breakerare the power of the air demoltion tool. It uses the East Japan Air (TOKU) group with the mature technology of compressed air. It also can high-efficiency complete reinforced concrete. Rock , Asphalt etc, with the broken, more horsepower. The more high-efficiency, the longer life characteristics, especially suitable for big characteristics. The special thick, the broken objects. Hard work, is mine. The bridge, the road. Civil infrastructure project construction ideal tool!

All parts of machine are made of alloy steel, and have great durability.
Back head is fixed by four bolts, and can endure the extremely hard condition
Quick reblading-type gripper, easy changing chisel, Hex. Shank
It is used to break or excavate the asphalt.

Specification

Model: TPB60
Piston diameter: 57.15mm
Piston stroke: 146mm
Impact frequency: 1250 minute/Time
Net weight: 30kg/60lbs
Total length: 660mm
Air consumption: 2.0m3/minute
Hose size: 19mm(3/4inch)
Shank specifications: 1× 4-1/4 25X108
Inlet size: 3/4PT
Air pressure: 0.63Mpa

We supply many kinds of jack hammer, rock drill, welcome to inquiry ~
Jack hammer: RB777, RB777C, B77C, B87C, B67C, B47C, B70, TPB-40, TPB-60, TPB-90, G10, G20, TCA-7
Air leg rock drill: YT27, YT28, YT29A, YT24, YT23, YT23D, YO18, Y20, YSP45
Hand hold rock drill: Y19A, Y24, Y26, TY24C, Y6, Y10

Model	TPB40	TPB60	TPB90
Piston diameter	44mm	57.15mm	66.67mm
Piston stroke	100mm	146mm	152mm
Impact frequency	900 minute/Time	1250 minute/Time	1400 minute/Time
Net weight	18kg/39.6lbs	30kg/60lbs	42kg/92.4lbs
Total length	660mm	645mm	723mm
Air consumption	1.6m3/minute	2.0m3/minute	2.2m3/minute
Hose size	19mm(3/4inch)	19mm(3/4inch)	19mm(3/4inch)
Shank specifications	1×4-1/4 25X108	1×4-1/4 25X108	1×4-1/4 25X108
Inlet size	3/4pt	3/4pt	3/4pt
Air pressure	0.63Mpa	0.63Mpa	0.63Mpa
