• Model NO.：600k CLIP-ON
• Warranty：12 Months Under Normal Use
• Delivery：15 to 25 Days
• Color：Black
• Typy：Bolt-on,Clip-on,Chain-on
• Production Time：20 Days
• Pitch：216mm
• Width：164mm
• Height：85mm
• Transport Package：Bare Packing or Pallets
• Specification：600K
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai China
• HS Code：8431499900
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. 600k CLIP-ON Warranty 12 Months Under Normal Use Delivery 15 to 25 Days Color Black Typy Bolt-on/Clip-on/Chain-on Production Time 20 Days Pitch 216mm Width 164mm Height 85mm Transport Package Bare Packing or Pallets Specification 600K Trademark No Marks or As Buyer′s Requests Origin Shanghai China HS Code 8431499900 Production Capacity 3000PCS/Month

Product Description

kubota kx200 KOBELCO EXCAVATOR rubber pad clip-on type 600mm length
Please tell us the brand and model of your excavator,we will help check the pad size for you.
Rubber pad is a new kind of rubber product compound of rubber materials and metal iron core.
It is assembled on steel tracks by metal linker.It can walk on the road directly.

Clip-On Rubber Pads are the most common option, especially if the triple grouser steel pads have no pre-drilled holes. This option is very easy to take on and off. To install, simply unbolt one side of the pad, slide onto the triple grouser shoe, and bolt the clasp back onto the rubber pad.

We can also put your logo on the rubber pads.

Application excavators:
Kubota: KX200, KX200-2P, EX200, UH07-7, FX200
KOBELCO: S280F2, SH200, SK09, KMC200, MS180-8, E200B, REGA320, HD700SEV,HD820

600K size:
Measurement(mm)

Type

Pitch

A(Length)

B(Height)

C(Width)

D

E

F

G

Weight

PY600K

216

600

85

164

19

40.5

113

26

9KGS

The characteristics of rubber pads:
     1.Protection of Road Surface
     2.Labor Cost Savings
     3.Double Roles
     4.Easy Attaching/Detaching
     5.Saving in Maintenance and Management Cost
     6.Good Safety and Stability
     7.Larger Digging and Hosting Power
     8.Noise Reduction
We main have three kinds of rubber track pads :1. Bolt-on


Type	Pitch	h	D	d	Bolt	L	W	H	Weight
230BA	90	15	150	0	M12	230	60	31	0.800
230B	101	16	150	0	M12	230	70	39	0.900
250B	101	16	200	0	M12	250	70	39	0.925
300B	101	16	200	0	M12	300	70	39	1.100
300BA	101	16	200	0	M12	300	70	39	1.100
350B	101	16	200	0	M12	350	70	39	1.230
350BA	101	16	250	0	M12	350	70	39	1.230
350BD	135	14	250	46	M12	350	106	40	2.035
350BL	135	14	290	46	M12	350	106	40	1.900
350BR	135	14	290	46	M12	350	106	40	1.900
380B	135	14	300	46	M12	380	106	40	2.330
400B	135	14	300	46	M12	400	106	40	2.180
400BLR	135	14	300	46	M12	400	106	40	2.190
400BW	140	18	300	52	M14	400	123	65	4.000
400BH	140	18	350	52	M14	400	123	45	3.000
450BE	135	14	350	46	M12	450	106	40	2.450
450B	154	20	350	58	M14	450	124	49	3.500
450BLR	154	20	350	58	M14	450	124	49	3.500
500B	171	20	400	60	M16	500	137	57	4.580
500BA	175	26	400	57	M16	500	126	59	4.510
600B	190	26	400	69	M20	600	136	71	7.500
260BM		18	190	53	M12	260	120	50
260B		18	200	54	M14	260	112	48
260BK		18	200	57	M14	260	120	48
300BM		18	227	57	M12	300	120	50
300BK		18	220	57	M14	300	130	55
350BK	155	25	270	60	M14	350	135	60	4.000
400BK		25	300	60	M14	400	135	60
450BK		31	350	80	M14	450	170	76
200T		0	160	0	M14	200	90	30
305BP		0	177.8	0	M16	305	114	32
355BP		0	237.5	0	5/8"	355	132	32
455BP		0	305	0	3/4"	455	132	32
300-2	155	18	220	0	M14	300	135	50
300-4	155	18	220	45	M12	300	135	50
320-2	155	18	220	0	M14	320	135	50
320-4	155	18	220	45	M12	320	135	50

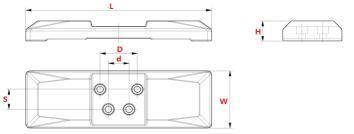

2. Chain-on

Type	Pitch	D	d	S	Bolt	L	W	H
300C	135	144	116	22	M12	300	95	45
400C	135	94	64	46	M12	400	125	52
400CA	135	99	72	43.5	M12	400	125	52
400CK	135	100	73	43.5	M12	400	125	52
400CB	135	104	80	46	M12	400	125	52
400CD	135	110	80	46	M12	400	125	52
400CV	135	106	76	46	M12	400	125	52
400CK	140	80	80	52	M12	400	125	52
400CW	140	86	86	52	M12	400	125	52
450CN	140	83	83	52	M12	450	125	52
450CW	140	86	86	52	M12	450	125	52
450CA	135	99	72	43.5	M12	450	125	52
450CB	154	90	90	46.3	M14	450	146	55
450CD	154	90	90	55	M14	450	146	55
450CS	154	73	73	57	M14	450	146	55
450C	154	89	73	57	M14	450	146	55
500CW	135	104	80	46	M12	500	125	52
500CB	175	102.4	86.4	57	M16	500	162	69
500C	171	108	108	60.4	M16	500	162	69
500CS	171	104	88	58	M16	500	162	69
500CA	190	160.4	124.4	62	M20	500	178	72
500CD	190	155.6	119.6	69	M20	500	178	72
600C	171	108	108	60.4	M16	600	162	69
600CD	190	155.6	119.6	69	M20	600	178	72
600CA	190	160.4	124.4	62	M20	600	178	72
600CB	190	160.4	124.4	62	M18	600	178	72
300	155	88.9	88.9	57.1	M12	300	186	55
320	155	104	88.9	55	M12	320	186	55

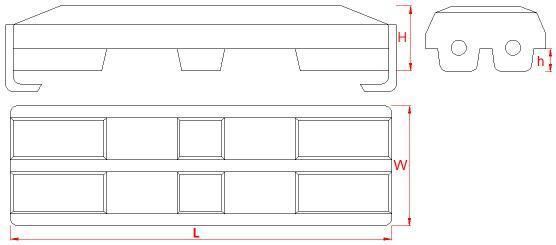

3. Clip-on


Type	Pitch	h	L	W	H	Weight
380HD	135	18	380	104	55	3.215
400HD	135	18	400	106	51	3.055
450HD	135	18	450	106	51	3.395
450HW	154	20	450	124	50
450HB	175	26	450	127	68	5.600
500HD	175	26	500	127	68	6.230
500HW	171	20	500	137	68
500HB	175	18	500	127	60	6.206
600HD	175	26	600	127	68	7.220
600HB	190	26	600	137	71	8.220
600HA	216	30	600	160	76	8.980
700HW	171	20	700	137	63	8.200
700HD	175	26	700	127	68	8.275
750HA	216	30	750	160	76
800HD	190	26	800	137	70	9.505
